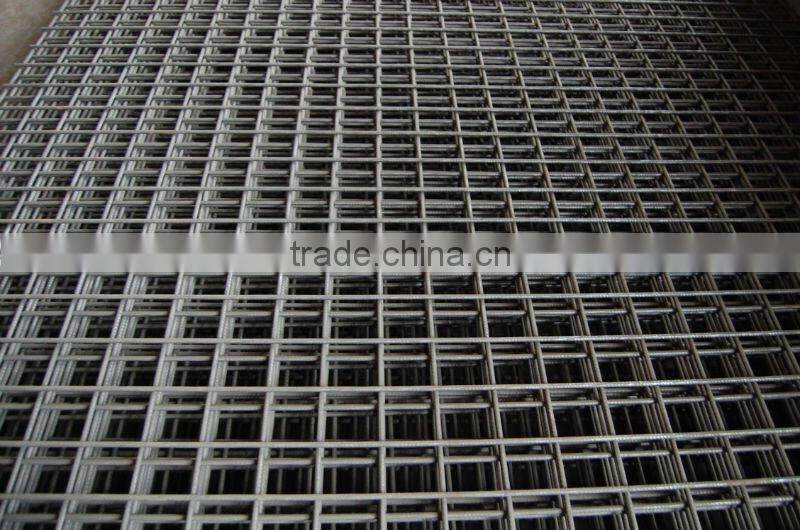

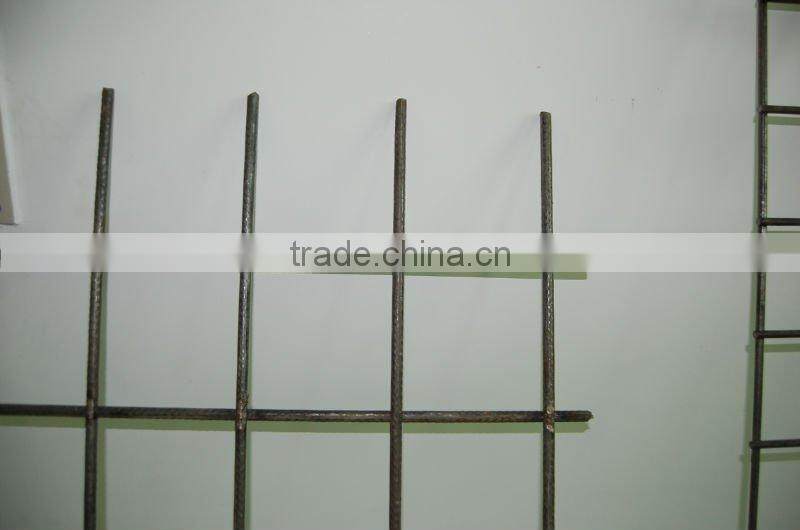

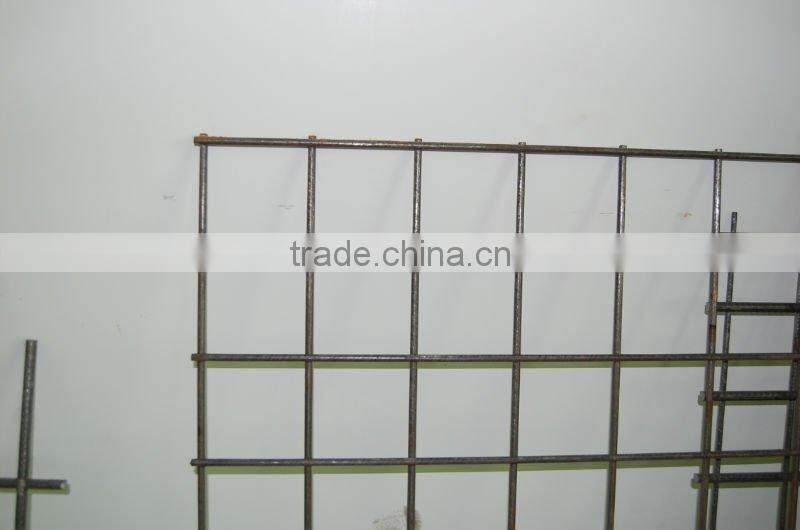

steel bar welded wire mesh

Specifications

Steel bar welded wire mesh
ISO 9001:2000
Wire Diameter:5-16mm
Opening: 75-300mm
Panel Length:100cm to 1400cm

Steel bar welded wire mesh/Construction welded wire mesh/screw thread welded wire mesh/reforcing welded wire mesh/concrete mesh



We offer heavy type welded mesh panels including steel bar welded wire mesh.

Wire diameter for welded steel bar panels’ ranges from 5mm to 16mm.

Welded bar panels’ opening: 75mm to 300mm.

Panel length: 100cm to 1400cm

Panel width: 100cm to 300cm

Applications: welded steel bar panels are widely used in construction reinforcement, the

ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body



Specification

Steel Bar Code	Warp Steel Bar		Weft Steel Bar		Referred Weight (kg/m2)
	Diameter (mm)	Spacing (mm)	Diameter (mm)	Spacing (mm)
A16	16	200	12	200	12.34
A10	10		10		6.16
A5	5		5		1.54
B16	16	100	10	200	18.89
B9	9		8		6.97
B5	5		7		3.05
C16	16	150	12	200	14.98
C10	10		10		7.19
C5	5		5		1.08
D14	14	100	12	100	20.98
D9	9		9		9.98
D5	5		5		3.08
E16	16	150	12	150	16.46
E9	9		9		6.66
E5	5		5		2.05
Standard to implement:GB/T1499.3-2002
