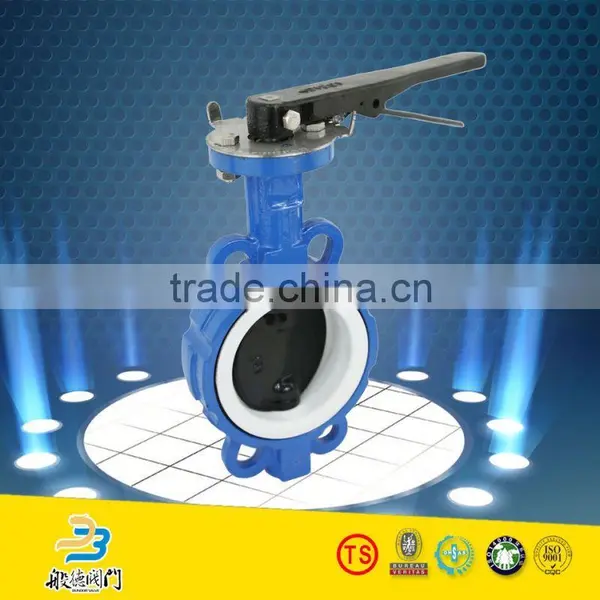

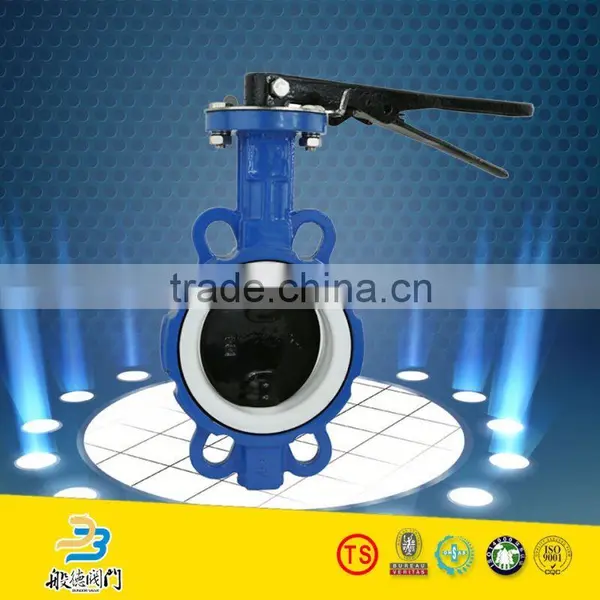

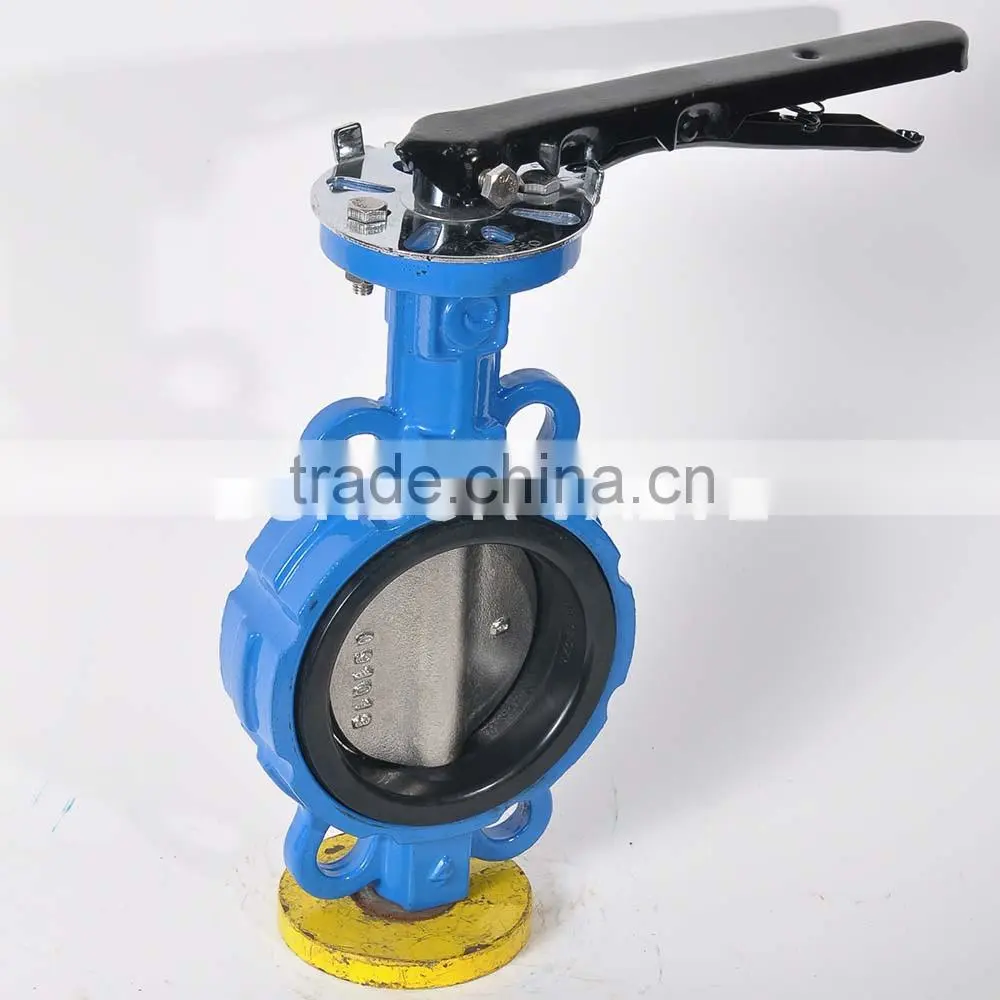

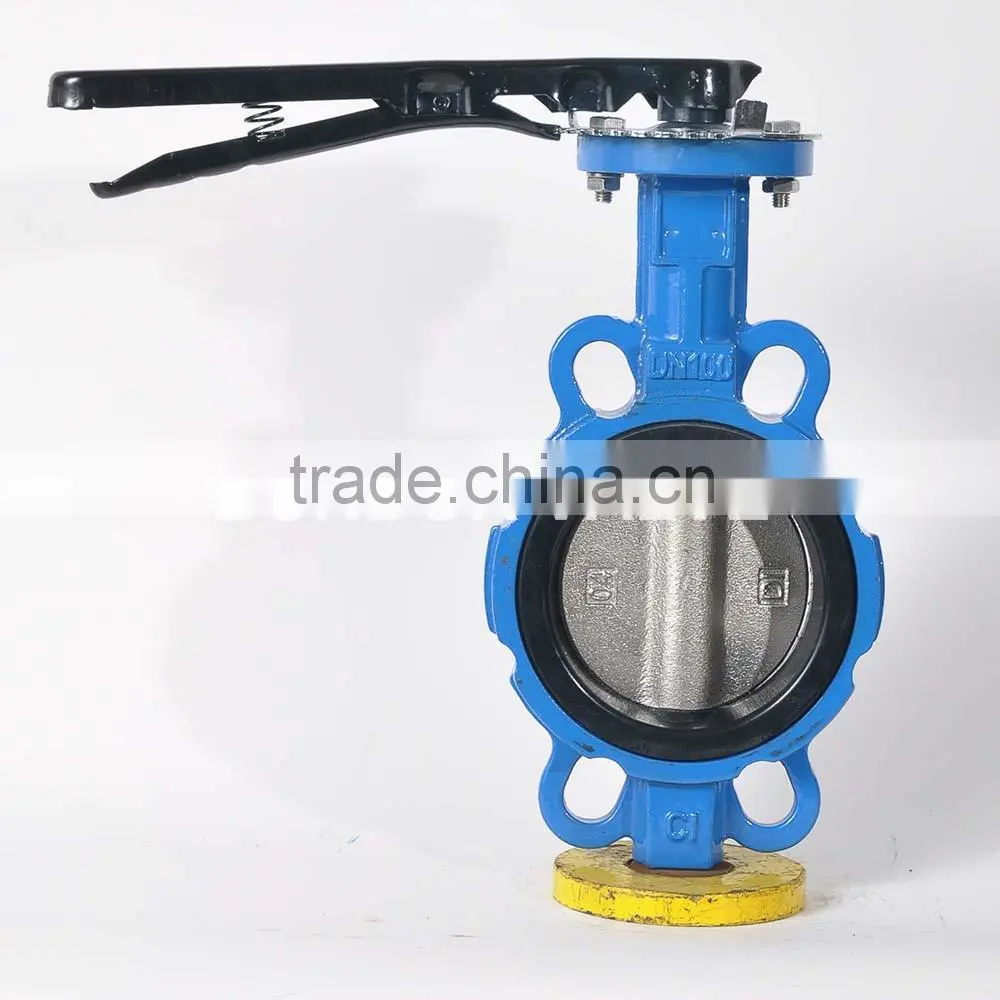

Wafer A Type Manual Water Butterfly Valve
|
name | Wafer A Type Manual Water Butterfly Valve |
| Body | Cast Iron,Ductile Iron,Stainless Steel,Carbon Stee | |
| Bushing | Polymer water-proof materials ,Nylon, Bronze | |
| Disc | Ductile Cast Iron,Stainless Steel,CF8, CF8M, CF3, CF3M,AL-Bronze |
|
| Seat | NBR, EPDM, Neoprene, PTFE, Viton | |
| Stem | SS416/SS304/SS316 | |
| Pin | SS316/SS416 |
Product Description

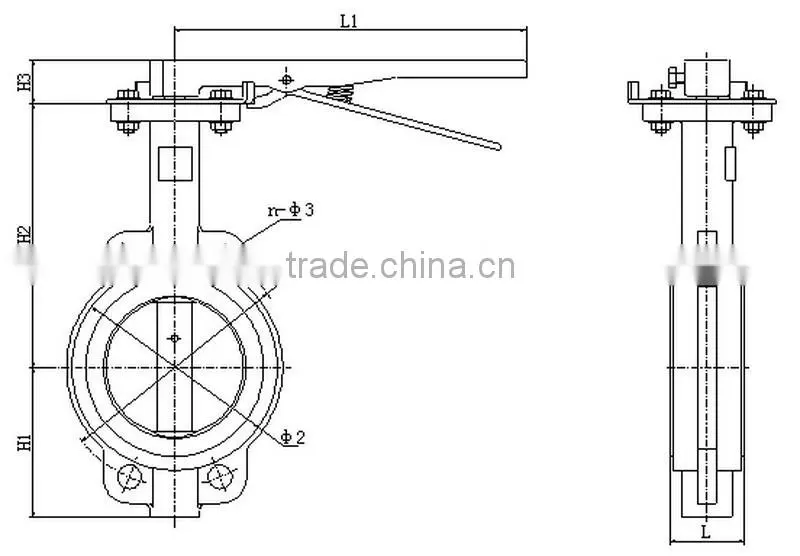

| Size | H1 | H2 | H3 | L | L1 | φ1 | φ2 | N | φ3 | |||||||
| mm | inch |
ANSI B16.1 |
DIN PN10 |
DIN PN16 |
JIS5K |
JIS 10K |
ANSI | DIN | JIS | |||||||
| 40 | 1.5" | 60 | 130 | 32 | 36 | 267 | 98.5 | 110 | 110 | — | — | 82 | 4 | 17.46 | 18 | — |
| 50 | 2″ | 76 | 162 | 32 | 45 | 267 | 120.65 | 125 | 125 | 105 | 120 | 88 | 4 | 17.46 | 18 | 15/19 |
| 65 | 21/2″ | 89 | 175 | 32 | 48 | 267 | 139.7 | 145 | 145 | 130 | 140 | 108 | 4 | 17.46 | 18 | 15/19 |
| 80 | 3″ | 95 | 181 | 32 | 49 | 267 | 152.4 | 160 | 160 | 145 | 150 | 118 | 4 | 17.46 | 18 | 19 |
| 100 | 4″ | 114 | 200 | 32 | 55 | 267 | 190.5 | 180 | 180 | 165 | 175 | 156 | 4 | 17.46 | 18 | 19 |
| 125 | 5″ | 127 | 213 | 32 | 58 | 267 | 215.9 | 210 | 210 | 200 | 210 | 181 | 4 | 20.64 | 18 | 19/23 |
| 150 | 6″ | 140 | 225 | 32 | 59 | 267 | 241.3 | 240 | 240 | 230 | 240 | 210 | 4 | 20.64 | 22 | 19/23 |
| 200 | 8″ | 177 | 260 | 45 | 64 | 356 | 298.45 | 295 | 295 | 280 | 290 | 260 | 4 | 20.64 | 22 | 23 |
| 250 | 10″ | 203 | 292 | 45 | 70 | 356 | 361.95 | 350 | 355 | 345 | 355 | 321 | 4 | 23.81 | 22/26 | 23/25 |
| 300 | 12″ | 242 | 337 | 45 | 80 | 356 | 431.8 | 400 | 410 | 390 | 400 | 384 | 4 | 23.81 | 22/26 | 23/25 |
Adoptive standard
1.Valve Design:MSS SP-67 for Casting steel,API609+ANSI B16.1 for DI/CI
2.Flange:ANSI B16.1 Class 125,DIN2501 PN10/16;BS4504 PN10/16
3.Face to face:BS EN 558-1;the length in BS EN558-1 is the same in DIN3202/API609/MSS SP-67:2002
4.Pressure test conform to API598
Product Process
Packaging and transportation
Our history
Product Certification
1.We promise no leakage and breakage for valves. Every valve will test for 2 times test pressure before leave factory. We will replace the valve if there is quality problem within 24 months guarantee period.
2.We obtained ISO9001 quality system certification,ISO14001 certification,GB/T 28001 certification.We inspect the parts of valve carefully, 48 produce steps, try to supply you ideal valve.
3.We can supply different kinds of materials according to customers' requests,such as DI,cast steel,SS304,SS316 body and disc. EPDM,NBR,PTFE,Viton etc. Enough stock ensure fast delivery.
4.We have more than 150 types body moulds, which include ISO,DIN,ANSI,BS standard.
5.We own full-automatic machine paint line, match high-temperature baking house,which makes smooth paint and good appearance of valve.
Our Customers
In the 21 years, we have customers in many countries around the world.
