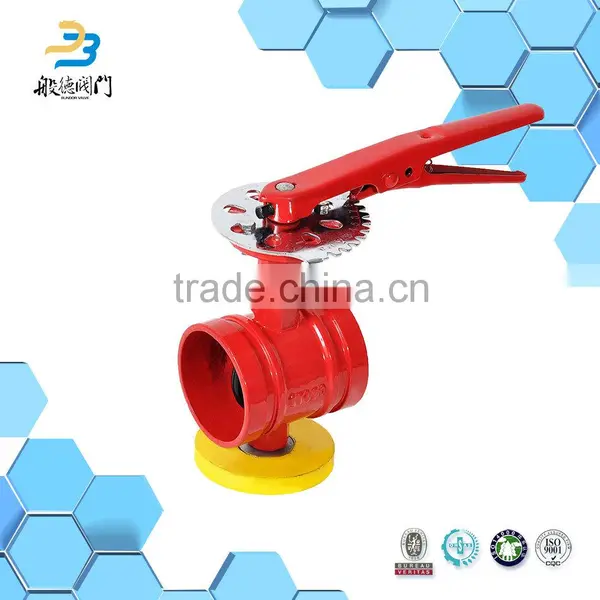

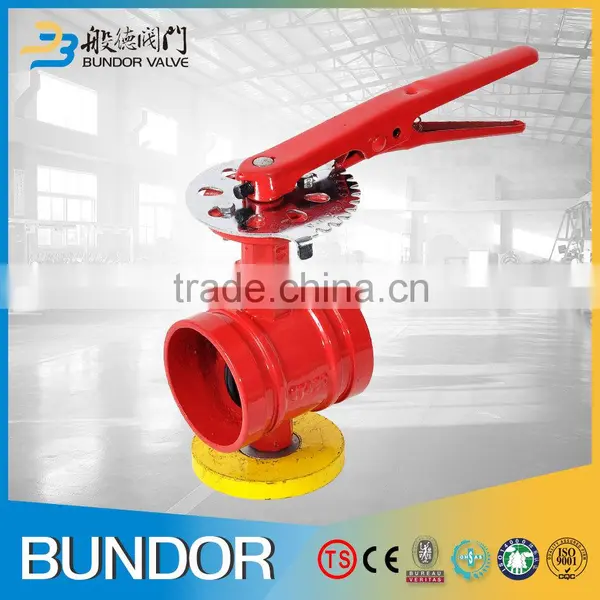

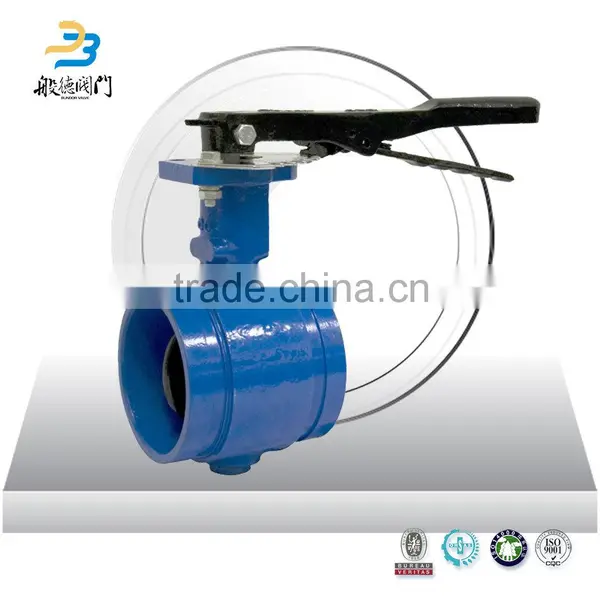

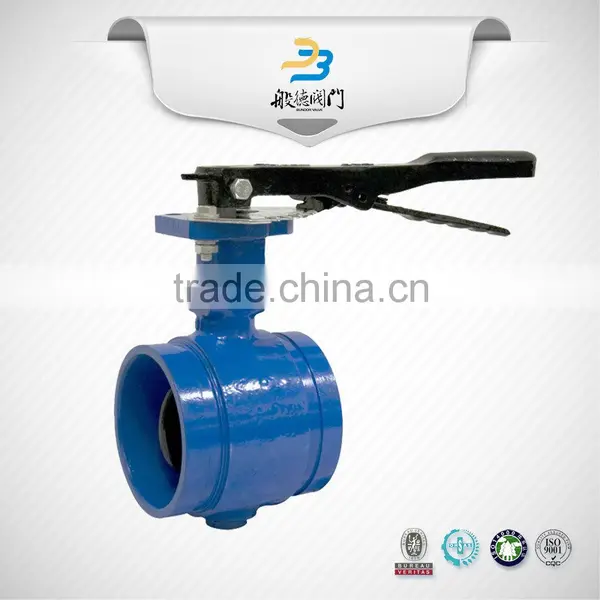

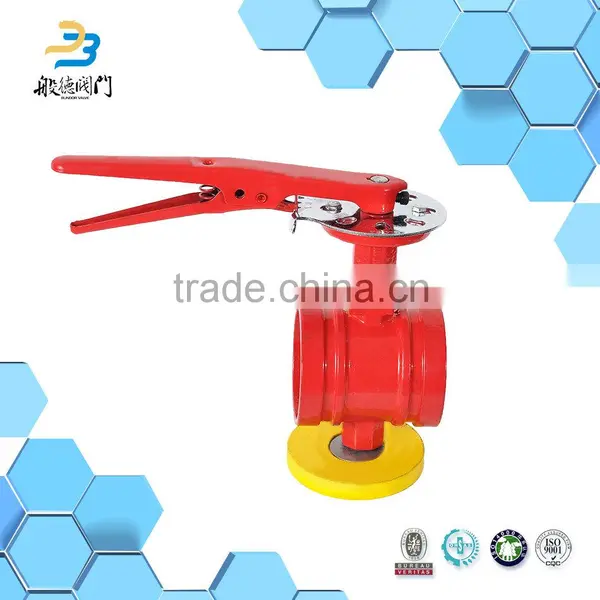

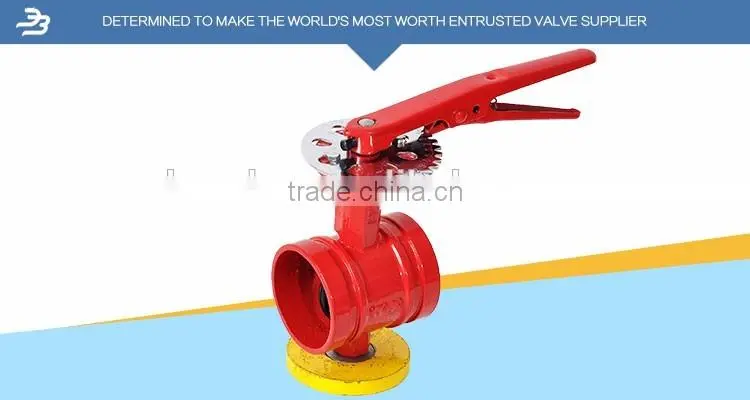

Help CenterHandle Grooved Fire Control Signal Butterfly Valve
Related Products
-
WCB Wafer Type Metal Seated Butterfly ValveUS$ 51 - 169MOQ: 1 Set -
Manual Upvc Wafer Butterfly Valve Dn150US$ 24 - 98.68MOQ: 5 Pieces
-
High Temperature Stainless Steel Wafer Butterfly Valves ManufacturersUS$ 21 - 57MOQ: 1 Set
-
Soft Backed EPDM Seat Wafer Butterfly Valve InstallationUS$ 21 - 57MOQ: 1 Set
-
One Stem No-Pin Wafer Butterfly Valve DimensionsUS$ 21 - 57MOQ: 1 Set
Standard Test:
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.
Adoptive Standards:
Valve Design: API 609, MSS SP-67
Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1
Pressure Test: API 598
Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16
Top Flange: ISO5211
