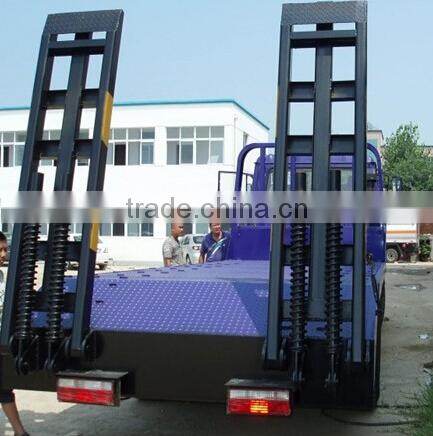

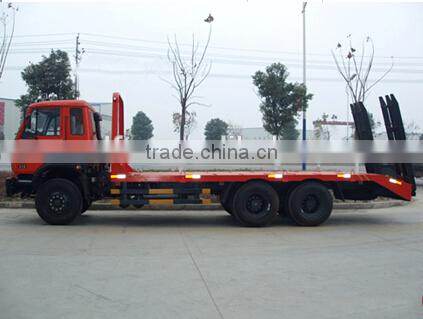

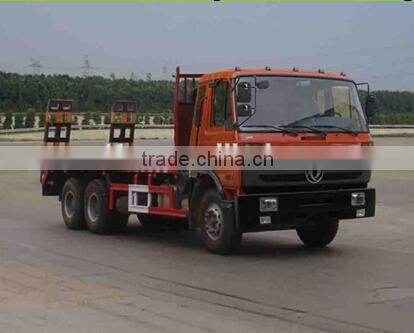

Dongfeng 6x4 Flat bed transport truck/ transptor truck

Specifications

1.Excellent performance
2.Convenient operation
3.Low oil consumption
4.Strong carrying capacity

Dongfeng 6x4  Flat bed transport truck/ transptor truck



1.Introduction



Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd was founded in 2003, Dongfeng Group, specializes in vehicles and machinery export business critical enterprise. Our main business covers Dongfeng commercial vehicle, passenger car products, automobile equipment and auto parts export. Our products are exported to Southeast Asia, Middle East, South America, Eastern Europe and many other countries.







We export commercial vehicles cover all series of Dongfeng Brand.



• Dump Truck Series
• Cargo Truck Series
• Tractor Series
• Special Purpose Vehicles
• Military Vehicle Series
• Passenger Vehicles Series
• Construction and Engineering Machinery



2.Feature



• The cab: Dongfeng tractor adopt luxurious cab with the comfortable shock-free driving seat, the electric controlled glass and the central lock device, this guarantee the driving comfortability; At the same time, the knee shield guard improve the security of the driver and the passengers. This cab also bring down the drag coefficient to reduce the fuel consumption.
• The engine: The tractors used Cummins engine which provide excellent gradeability, strong horsepower and bring down the oil consumption, reduce the operating cost for client.
• The chassis: The Dongfeng chassis make the tractors have big ground clearance and excellent trafficability and adaptability to various vile roads.
• The gearbox: The Fast Brand gearbox adopt serration processing technology to lower the noise and vibration and increase the reliability.



3.Specification



Drive mode	6×4
Engine	Model	YC6A260-33
	Type	6-cylinder in line, turbocharging and inter cooling, mechanical injection bump, built-in EGR
	Max. power(Kw/rpm)	191/2300
	Max. torque(N.m/rpm)	960/1400-1600
	Cylinder bore ×Stroke(mm)	108×132
	Displacement(ml)	7255
	Type of  fuel	Diesel
	Compression ratio	17.3:1
Cab	D153	one and half sleeper
	Capacity	3 persons
Gearbox	Type	FAST 9JS119
Clutch	Φ430mm	push-type diaphragm spring clutch
Frame                                 H×W× T(mm)	300×90×(8+6)
Axles	Front axle(Kg)	7500
	Rear axle(Kg)	17900×2
No. of spring leaves	9/9
Tyre	Size	11.00R20
Air conditioner	A/C
Dimensions	Overall dimension(mm)	10050×2500×3400
	Cargo body length(mm)	8400
	Wheel base(mm)	4550+1350
	Front/Rear tread(mm)	1940, 1860/1860
	App./Dep. angel (°)	34/36
	Min. ground clearance(mm)	300
Performance	Max. speed(Km/h)	85
Mass	Payload(Kg)	15,000
	Curb weight(Kg)	9,700
	G.V.W(Kg)	29,800
Performance	Thickness of the flat	8mm
	Material of flat	Q235
	Rear protection device clearance	490mm
