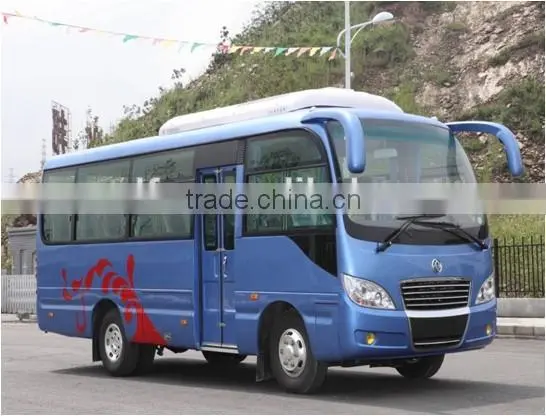

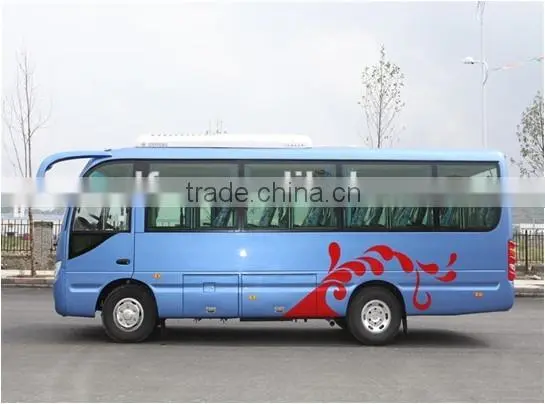

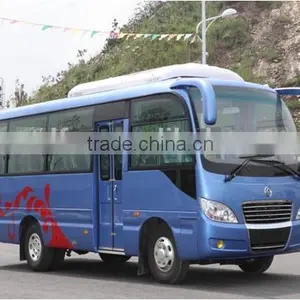

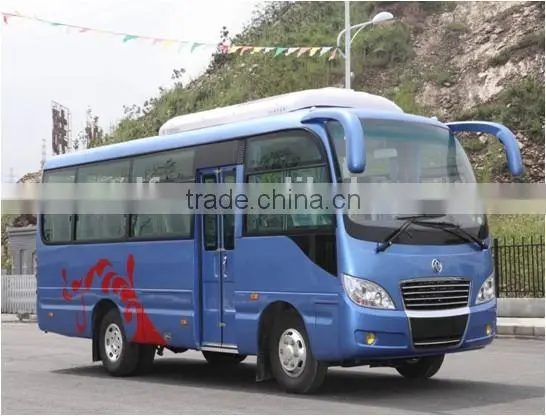

Dongfeng EQ6700LT Coach Bus, intercity bus

Specifications

Dongfeng EQ6700LT Coach Bus, intercity bus
1. 24-29 seats
2. 7m lenght bus
3. Engine Model: YC4FA130-40

Dongfeng EQ6700LT Coach Bus, intercity bus



About us:

Dongfeng Mid-South Enterprise., Ltd, the subsidiary company of Dongfeng group. As one of the three major automobile manufacturing group in China, the group’s sales volume is USD57 billion in 2011 and ranked No143th among world’s top 500 enterprises. The sale of Dongfeng commercial vehicle ranked globally top by the reports of OICA and VDA and ranked No. 2 all over the world.



1.Truck: Dump truck, Cargo truck, Tractor truck, Military truck with varies specification, can satisfy many kinds of your need.
2.Special commercial vehicles: Concret mixer, Garbage truck, Sweeper truck, Water tanker truck, Sewage suction truck, Ambulance, Refrigerated truck, Fire truck, Crane truck and so on. Say any kind of you request.
3.Passenger vehicle: Bus, Coach, Pickup, SUV, MPV, sedan car and so on
4. Construction machinery: Concret mixer, Concrete delivery equipment, Road roller, Wheel loader, Excavator, Forklift, etc.
5. Auto parts: tyres, engine, lubricant etc.





Specification:

Dimensions
Overall Length		7040 mm
Overall Width		2250 mm
Overall Height		3010 mm
Wheelbase		3650 mm
Front Overhang		1160 mm
Rear Overhang		2230 mm
Interior Height		1860 mm
First Step Height		400 mm
Gross Vehicle Weight		6900 kg
Seats Capacity		24-29
Max Speed		100km/h
Engine
Engine Model	YC4FA130-40
Engine Type	4 cylinders in-line, water-cooled, four-stroke,
	turbocharger, inter-cooled,direct injection
Position/Fuel	front/diesel
Max Output	95 kw
Max Torque	390Nm/rpm
Displacement	2982 ml
Emission Standard	Euro IV
Chassis
Chassis Model	EQ6650K4AC
Gear Box	Dongfeng 140
Clutch	single plate,dried,diaphragm spring,clutch booster
Front Axle	Dongfeng stock (2.7T) (Φ310×130)
Rear Axles	Dongfeng stock (5T) (Φ310×160)
Suspension	Leaf spring   front 9 rear 11
Steering	mechanical steering
Brake	Dual circuit full air brake
Fuel Tank	90L
Tyres	7.50-16
Battery/Generator	6-QA-105×2/55A
Others	Aluminum wanter tank,engine intake air preheater
Body
Body Type	Non-integrated body structure Common trimming, left interior luggage rack, right interior

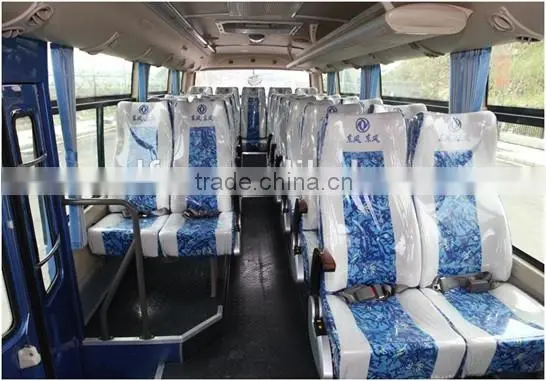

Interior Trimming	Common trimming, left interior luggage rack, right
	interior handrail
Side Window	All splice window for the upper part, push-pull window for
	the bottom part (green)
windscreen	Front : laminated glass; Rear : toughened glass
Defroster	Defroster with changeable power 24V,130W
Windscreen Wiper	opposite electric wiper system
Door	Manual pneumatic folding door
Rearview system	Common inner rearview mirror, rabbit-ear-type mirror
Others	Half-rolling sunshade curtain, air horn,700 scuttle
	PVC flooring, flat foor, non-sinking rear compartment
	Plain paint,steel plate stamping hatch

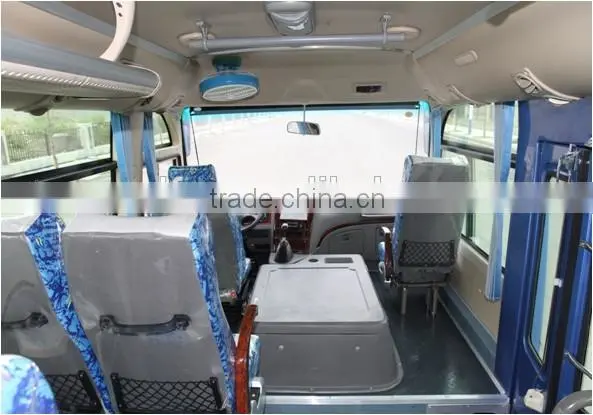

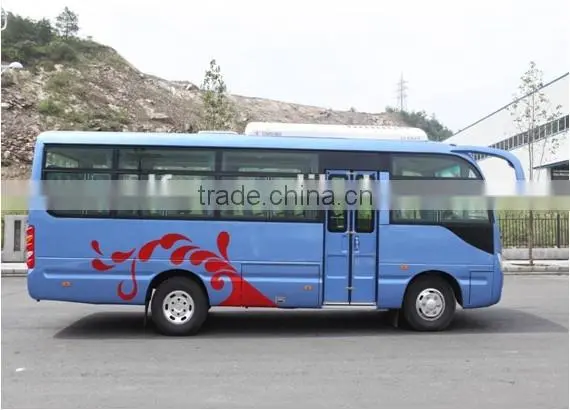

More pictures about the  Dongfeng EQ6700LT Coach Bus, intercity bus
