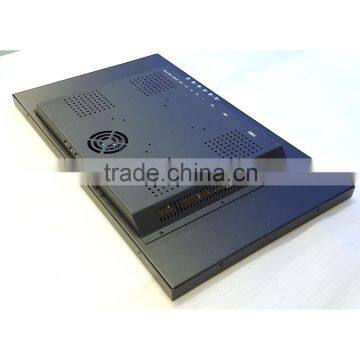

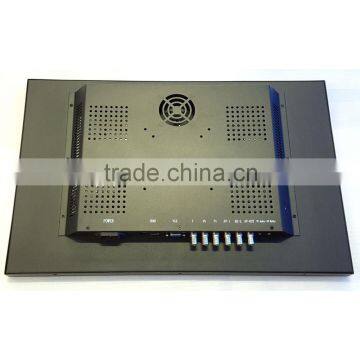

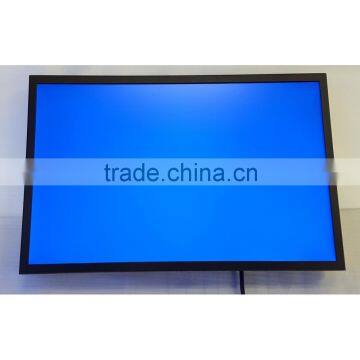

22 lcd cctv video monitor

Chinese/English OSD menu, easy to operate

Ultra thin design, easy to use, fashionable appearance

High contrast, high brightness, greatly improve the image layering, can perform details better

Automatic elimination of blur function, protect the LCD screen for long-term use

Adopt the latest 3D digital decoding and image noise reduction technology

A variety of digital image correction circuit, minimize image distortion

16.7M display, the picture is more natural and delicate

5ms fast response time, screen no tail

Support two signals input simultaneously, PIP position and size optional, maximize the use of display

Latest I²C bus control circuit, high reliability, good expansibility

Multiple input signals(CVBS/YPBPR/VGA/HDMI/RCA)

Built-in power, low consumption, long life time 60000hrs

Equipped with a sensitive infrared receiver, can adjust the monitor parameters via remote control

Ultra quiet cooling fan design

Full metal casing design, strong anti-electromagnetic shielding, no radiation

Model No.

XS-2200HD-P

Panel

Size

22”(16:10)

Type

LED

Resolution

1680x1050

Display area

473(W)x296(H)

Pixel pitch

0.282mmx0.282mm

Brightness

250cd/m²

Contrast

1000:1

Response time

5ms

Viewing angle

170°(H)x170°(V)

Field frequency

50HZ, 60HZ, 70HZ

Color

Display color

16.7M

Max color

Full Color

Color system

PAL/NTSC

Input/Output

CVBS input

BNCx2

YPBPR input

1(BNCx3)

HDMI input

HDMIx1

VGA input

VGAx1

CVBS output

BNCx1

Audio

Audio input

RCAx2

Power consumption

Power supply

AC100~240V,50/60HZ

Max consumption

≤52W

Standby

≤3W

Working environment

Temperature

0℃~50℃

Relative humidity

10%~90%

Storage environment

Temperature

-25℃~60℃

Relative humidity

5%~95%

Dimension

Body dimension

500.1mm(W)x326.6mm(H)x46mm(D)

Packing dimension

570mm(W)x400mm(H)x140mm(D)

Weight

N.W.

5.5kg

G.W.

6.5kg

Installation

Installation method

Wall mounted, desktop optional

Others

Operation method

Panel buttons, IR remote control

Cooling system

Single fan cooling

Casing material

Full metal casing

Environment standards

All components and packing materials comply with international environment standards

Accessories

User manual, warranty card, remote control, AC power cable
