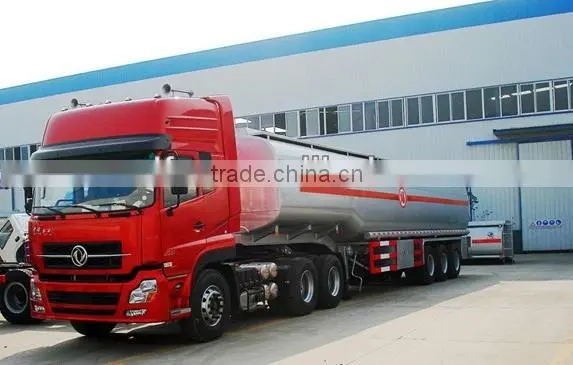

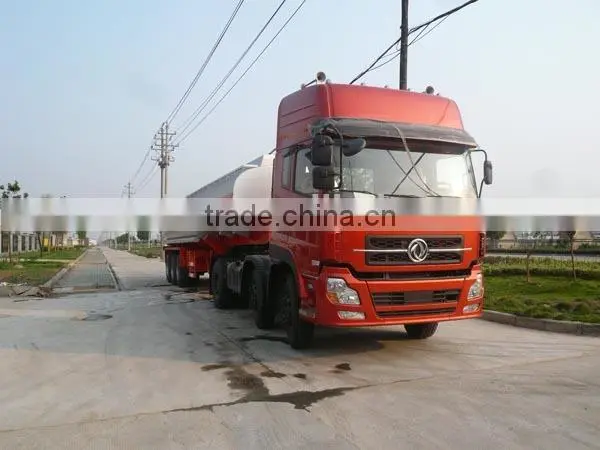

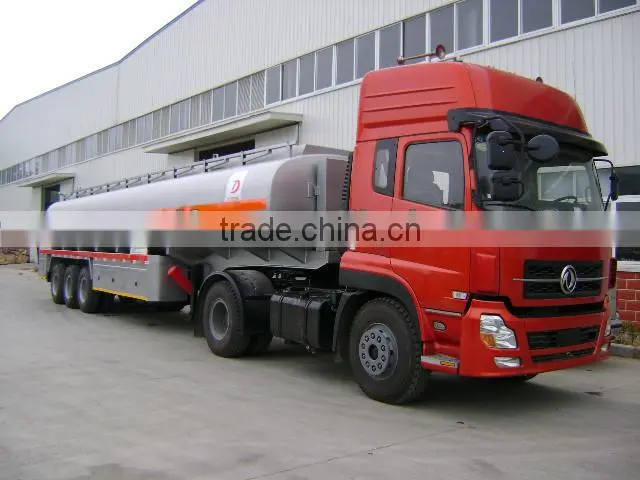

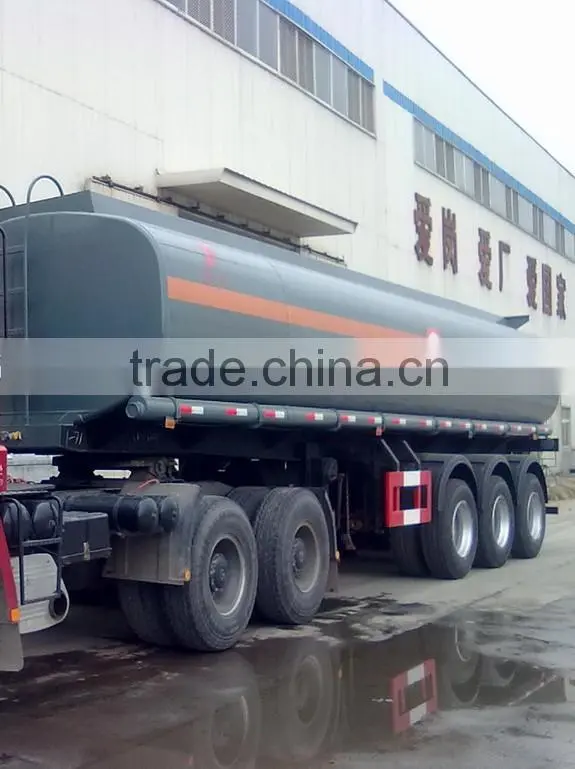

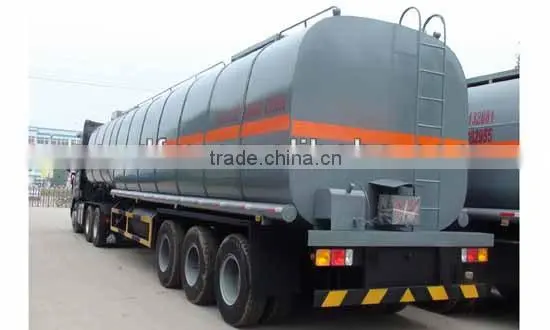

Help CenterHeavy Duty Dongfeng Crude Oil Tank Trailer/ Fuel Tanker Semi-trailer
Related Products
-
Strong Loading Capacity Dongfeng Crude Oil Tank Trailer/ Tank Trailer/for Oil TransportUS$ 20,000 - 40,000MOQ: 1 Set -
Heavy Duty Dongfeng Crude Oil Tank Trailer/ Fuel Tanker Semi-trailerUS$ 20,000 - 40,000MOQ: 1 Set
-
Heavy Duty Dongfeng Crude Oil Tank Trailer/ Tank Trailer/for Oil TransportUS$ 20,000 - 40,000MOQ: 1 Set
-
Strong Loading Capacity Dongfeng Crude Oil Tank Trailer/ Tank Trailer/for Oil TransportUS$ 20,000 - 40,000MOQ: 1 Set
-
3-axle Container Semi-trailerUS$ 21,500 - 35,600MOQ: 1 Unit
Specifications
1.Excellent performance2.Convenient operation
3.Low oil consumption
4.Strong carrying capacity
1.Introduction
Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd was founded in South Africa in 2003, Dongfeng Group, specializes in vehicles and machinery export business critical enterprise. Our main business covers Dongfeng commercial vehicle, passenger car products, automobile equipment and auto parts export. Our products are exported to Southeast Asia, Middle East, South America, Eastern Europe and many other countries.
We export commercial vehicles cover all series of Dongfeng Brand.
- Dump Truck Series
- Cargo Truck Series
- Tractor Series
- Special Purpose Vehicles
- Military Vehicle Series
- Passenger Vehicles Series
2.Feature
- The cab: Dongfeng tractor adopt luxurious cab with the comfortable shock-free driving seat, the electric controlled glass and the central lock device, this guarantee the driving comfortability; At the same time, the knee shield guard improve the security of the driver and the passengers. This cab also bring down the drag coefficient to reduce the fuel consumption.
- The engine: The tractors used Cummins engine which provide excellent gradeability, strong horsepower and bring down the oil consumption, reduce the operating cost for client.
- The chassis: The Dongfeng chassis make the tractors have big ground clearance and excellent trafficability and adaptability to various vile roads.
- The gearbox: The Fast Brand gearbox adopt serration processing technology to lower the noise and vibration and increase the reliability.
3.Specification
Overall size (mm) |
12810(L)* 2500(W)*3900 (H) |
Wheel base (mm) |
7200+1310+1310 |
Tread (mm) |
2040 |
Kerb mass(Kg) |
7000 |
Min. turning diameter(m) |
24 |
Min. ground clearance |
360 |
Main configuration parameters | |
Axles |
BPW12T, Germany, 3 axles |
Towing pin |
JOST, 50mm or 90mm |
suspension |
BPW brand triple air suspension |
tyre |
425/65R22.5 radial tire, 6 |
Brake system |
dual circuit air brake, Service brake, Parking brake, emergency brake |
ABS |
WABCO made, America |
Tank body parameter | |
Tank actual volume(m3) |
47 |
Tank actual dimension(mm) |
12640×φ2210 |
Tank material |
Aluminum alloy, optional for stainless steel, aluminum, etc. |
Discharge |
aluminum alloy DN80 |
Discharge rubber hose |
2 set, 4m length, ball valve accord with drift diameter |
bottom valve |
None |
Tank mouth |
Two, aluminum alloy, diameter: Φ500 |
