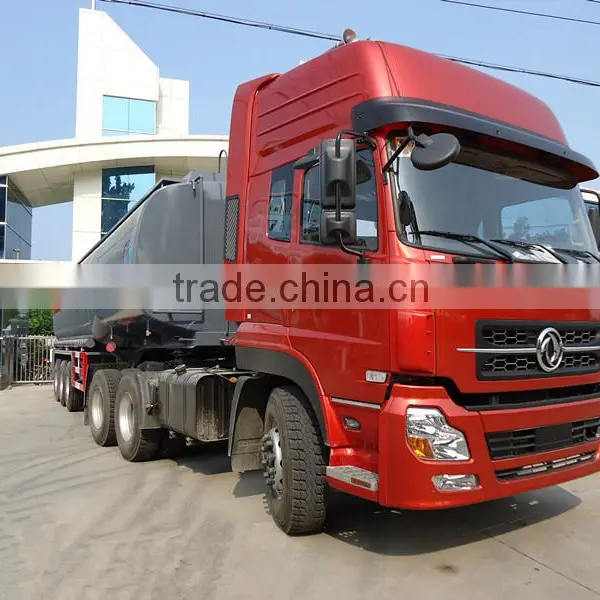

Heavy duty Dongfeng crude oil tank trailer/ fuel tanker semi-trailer

Specifications

1.Excellent performance
2.Convenient operation
3.Low oil consumption
4.Strong carrying capacity



1.Introduction

Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd was founded in South Africa in 2003, Dongfeng Group, specializes in vehicles and machinery export business critical enterprise. Our main business covers Dongfeng commercial vehicle, passenger car products, automobile equipment and auto parts export. Our products are exported to Southeast Asia, Middle East, South America, Eastern Europe and many other countries.



We export commercial vehicles cover all series of Dongfeng Brand.

• Dump Truck Series
• Cargo Truck Series
• Tractor Series
• Special Purpose Vehicles
• Military Vehicle Series
• Passenger Vehicles Series



2.Feature

• The cab: Dongfeng tractor adopt luxurious cab with the comfortable shock-free driving seat, the electric controlled glass and the central lock device, this guarantee the driving comfortability; At the same time, the knee shield guard improve the security of the driver and the passengers. This cab also bring down the drag coefficient to reduce the fuel consumption.
• The engine: The tractors used Cummins engine which provide excellent gradeability, strong horsepower and bring down the oil consumption, reduce the operating cost for client.
• The chassis: The Dongfeng chassis make the tractors have big ground clearance and excellent trafficability and adaptability to various vile roads.
• The gearbox: The Fast Brand gearbox adopt serration processing technology to lower the noise and vibration and increase the reliability.

3.Specification



Overall size (mm)	12810(L)* 2500(W)*3900 (H)
Wheel base (mm)	7200+1310+1310
Tread (mm)	2040
Kerb mass(Kg)	7000
Min. turning diameter(m)	24
Min. ground clearance	360
Main configuration parameters
Axles	BPW12T, Germany, 3 axles
Towing pin	JOST, 50mm or 90mm
suspension	BPW brand triple air suspension
tyre	425/65R22.5 radial tire, 6
Brake system	dual circuit air brake, Service brake, Parking brake, emergency brake
ABS	WABCO made, America
Tank body parameter
Tank actual volume(m3)	47
Tank actual dimension(mm)	12640×φ2210
Tank material	Aluminum alloy, optional for stainless steel, aluminum, etc.
Discharge	aluminum alloy DN80
Discharge rubber hose	2 set, 4m length, ball valve accord with drift diameter
bottom valve	None
Tank mouth	Two, aluminum alloy, diameter: Φ500
