Dongfeng Vehicle-mounted Crane 4x2 Truck Crane
Negotiable
MOQ: 2 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Rated Loading Capacity:
10500kg
Max. Lifting Load:
3200kg
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dongfeng Ambulance B VersionNegotiableMOQ: 3 Units -
Dongfeng 4T Vehicle-mounted Crane 4x2 Truck CraneNegotiableMOQ: 2 Units
-
EQ3120GSZ3GJ Concrete Mixer Truck 6m3NegotiableMOQ: 2 Sets
-
Dongfeng 10 T Vehicle-mounted Crane 6x4 Truck CraneNegotiableMOQ: 2 Units
-
Dongfeng Fecal Sucktion Truck, Suction Sewage TruckUS$ 20,000 - 60,000MOQ: 1 Unit
Condition
New
Rated Loading Capacity
10500kg
Max. Lifting Load
3200kg
Max. Lifting Height
6.8m
Span
5.2m
Place of Origin
Hubei, China
Brand Name
Dongfeng
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Vehicle-mounted crane1. 4x2 truck crane
2. YC4E140-30
3.140HP
4. 3.2 ton lifting capacity

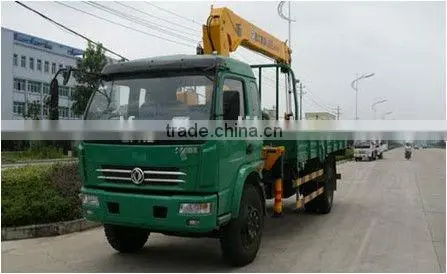

Dongfeng Vehicle-mounted Crane 4x2 truck crane
| Specification | |||
| Truck | Engine | Model | YC4E140-30 |
| Type | Straight in line,water-cooled,four stoke,direct injection | ||
| Max. power(Kw/rpm) | 115 | ||
| Max.torque (N.m/rpm) | 500/2500 | ||
| Max. torque speed (rpm.min) | 1200-1600 | ||
| Bore /Stroke(mm) | 112*110 | ||
| Displacement(ml) | 4257 | ||
| Type of fuel | diesel | ||
| Max.horsepower | 140 | ||
| Tire | Size | 8.25-20 | |
| Frame Cross-section Height(mm) | 232 | ||
| Axle | Front axle(kg) | 3000 | |
| Rear axle(kg) | 7000 | ||
| Dimensions | Overall dimension (mm) | 8945*2430*3400 | |
| Inner dimension(mm) | 6730(5830)*2300*550 | ||
| Wheel base (mm) | 5200 | ||
| Mass | Curb weight(kg) | 5150 | |
| Rated weight(kg) | 10500 | ||
| G.V.W (kg) | 15650 | ||
| System | Brake system | Air | |
| Steering system | Power assisted steering | ||
| Storage battery | 24V | ||
| Aircondition | Optional | ||
| Cab | Size | one and half row | |
| Crane | 3T | Max. Lifting Capacity (Kg) | 3200 |
| Max.Lifting Moment(T·M) | 6.7 | ||
| Recommended Power (kw) | 10 | ||
| Max.Lifting range(m) | 5.2 | ||
| Max.Lifting height(m) | 6.8 | ||
| Max.Outrigger span (m) | 3.3 | ||
| Max.Hydraulic system flow (L/min) | 25 | ||
| Rated pressure of hydraulic system (MPa) | 20 | ||
| Fule tank Capacity (L) | 60 | ||
| Rotation angle (°) | 370 | ||
| Crane weight(kg) | 1160 | ||
| Installation space (mm) | 850 | ||
