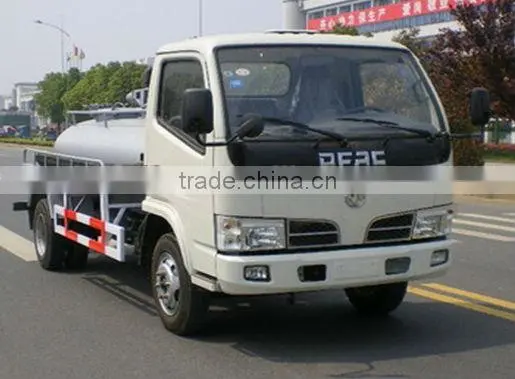

Dongfeng Fecal Sucktion Truck, Suction Sewage Truck

US$ 20,000 - 60,000 MOQ: 1 Unit

Key Specifications

Transmission Type:

Manual

Condition:

New

Fuel Type:

Diesel

Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Transmission Type Manual

Condition New

Fuel Type Diesel

Tank Volume 3

Dimension (L x W x H) 6890*2220*2510

Place of Origin Hubei, China

Brand Name DFM

Model Number EQ1063

Gross Vehicle Weight 6500

Specifications

Dongfeng Fecal Sucktion Truck
1.Effictive Volume (CBM):3
2.With Vacuum Pump
3.Payload(kg):2850

Dongfeng Fecal Sucktion Truck, Suction Sewage Truck

One the three Major Automobile Groups in China.
As the pioneer manufacturer of commercial vehicle, Automobile and passenger vehicle in China from 1969.
development, design and experiencing integrated of Research.
Enterprises such as Nissan Japan, Fast, Cummins and DANA of United States, ZF Germany, Renault from France.
Authorities which ensure its smooth and substantial quantity all around the world.
occupy a unique advantage in international markets.
are striving for faming Dongfeng brand on the International market.

Warranty Period: 6 months(calculating from the date the vehicle arrives at the destination port) or 30,000 kilometers, whichever comes first.

Specification
Drive mode	4×2
Chassis model	EQ1063
Engine	Model	CY4102-C3C
	Type	4-cylinder in line, water cooling, inter cooling, turbocharging, vertical engine
	Power/Displacement(Kw/ml)	88/3856
	Type OF Fuel	Diesel
Cab	CPB12-K	Single berth
	Capacity	3 persons
No of Spring leaves	8/9+5
Tyre	Size	7.50-16
Air conditioner	A/C
Dimensions	Outer dimension (mm)	6890×2220×2510
	Wheel base (mm)	3800
	Front/Rear tread(mm)	1750/1856
Performance	Max. speed(km/h)	90
Mass	Payload (kg)	2850
	Curb weight((kg)	3700
	G.V.W (kg)	6500
Specifications of Tank	Effictive Volume (m³)	3
	Outer dimension (Length×Macro axis×Minor axis)(mm)	3500×1100×700
	Vacuum Pump Model	XD-70
	Suitable revolution(min/rpm)	1400
	Vacuum Degree(mmHg)	≥500
	Effictive Suction Length(m)	≥6
	Time of pumping(min)	≤5
Special configration	PTO, tansmission shaft, vacuum pump, fecal tank, pipe network systerm, visible soil pipe, hand-washing facilities
