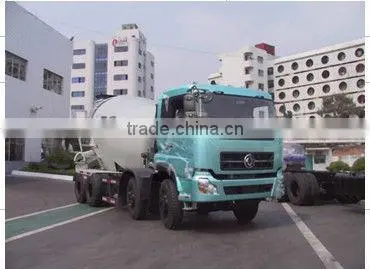

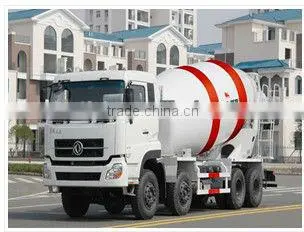

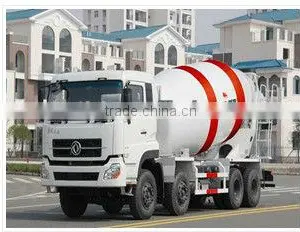

Dongfeng Concrete Mixer Truck DFL5310GJBA 14m3
Negotiable
MOQ: 2 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hubei, China
Brand Name:
Dongfeng
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dongfeng Ambulance A VersionNegotiableMOQ: 3 Units -
Dongfeng Vehicle-mounted Crane 4x2 Truck CraneNegotiableMOQ: 2 Units
-
Dongfeng Ambulance B VersionNegotiableMOQ: 3 Units
-
Dongfeng 4T Vehicle-mounted Crane 4x2 Truck CraneNegotiableMOQ: 2 Units
-
EQ3120GSZ3GJ Concrete Mixer Truck 6m3NegotiableMOQ: 2 Sets
Condition
New
Place of Origin
Hubei, China
Brand Name
Dongfeng
Model Number
DFL5310GJBA
Weight
31000
Dimension(L*W*H)
10955*2500*3990
Power(W)
250/2200
Certification
CCC, GCC
Warranty
6 months
After-sales Service Provided
Overseas service center available
Specifications
Dongfeng Concrete Mixer Truck DFL5310GJBA 14m3:1. Strong tanker body.
2. High effenciency.
3. Long work.
| Specification | ||
| Drive mode | 8×4 | |
| Engine | Model | L375 30 |
| Type | 6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR | |
| Max. power(Kw/rpm) | 276/2200 | |
| Max. torque(N.m/rpm) | 1480/1400 | |
| Displacement(ml) | 8900 | |
| Type of fuel | Diesel | |
| Compression ratio | (16.6±0.5):1 | |
| Cab | D310-S1 | single berth |
| Gearbox | Model | 9JS150T-B |
| Max.torque(N.m) | 1500 | |
| Clutch | Φ430mm | diaphragm spring clutch |
| Frame Height×Width× Thickness(mm) | 300×90×(8+8) | |
| Frame width 940 (front ), Frame width 800 ( rear ) | ||
| Tyre | Size | 12.00-20 |
| Air conditioner | A/C | |
| Dimensions | Overall dimension (mm) | 10955×2500×3990 |
| Wheel base (mm) | 1850+3400+1350 | |
| Front/Rear tread(mm) | 2027/2027,1820/1820 | |
| Appr./Depa. angel (°) | 25/20 | |
| Min. ground cleanrance(mm) | 250 | |
| Mass | Payload(Kg) | 16565 |
| Curb weight(Kg) | 14305 | |
| G.V.W(Kg) | 31000 | |
