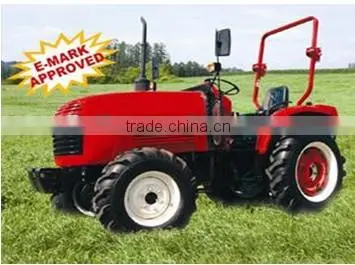

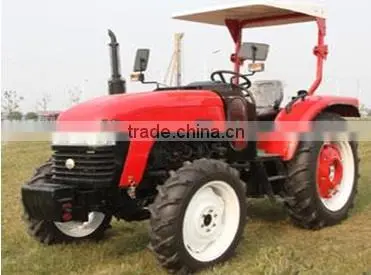

244E Farm Tractor, Tractors From China Dongfeng With 4WD, 20HP for Sale

244E Farm Tractor, Tractors From China Dongfeng With 4WD, 20HP for Sale thumbnail-1
244E Farm Tractor, Tractors From China Dongfeng With 4WD, 20HP for Sale photo-1
US$ 5,739 - 8,500 MOQ: 5 Sets
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 14.7
Certificate EEC
Brand Name Dongfeng
Model Number DF204E
Place of Origin China
After-sales Service Provided Overseas service center available

Specifications

244E Farm tractor with 20hp:
1. High quality
2. Low price
3. Professional after-sale service

Specification:



1. ISO, EEC certificate

2. Nude packaging

3. 25-30 days after reception of the deposit



Model

DF-244E

Drive Type

4WD

Overall Dimensions
L*W*H(mm)

3185x1440x2530

Wheel Track(mm)

Front

1100

Rear

1040-1200

Wheel Base(mm)

1645

Ground Clearance (mm)

295

Rated Traction Force(N)

5980

Construction Mass(kg)

1380

Min.Turning Radius(m)

2.80

Theoretical Speed(Without creeper)( km/h)

Forward

1.73,3.42,5.71,8.01,15.80,26.40

Reverse

1.37,6.35

Engine

Model

   KM385TE

Type

3-Cylinder Vertical,water cooled,4 stroke cycle

Rated Power(kw/hp)

17.6/24

Rated Speed (rpm)

2350

Bore*Stroke(mm)

85*90

Total Displacement(L)

1.532

Drive
System

Clutch

Dual-Stage

Gear Box

(3+1)*2

Main Drive

One Pair of Spiral Bevel Gearing

Differential

Bevel Gear

Differential Lock

Jaw Lock

Final Transmission

External gearing, Spur Gear

Traveling
Mechanism

Tyre

Front

6.00-16

Rear

9.5-24

Steering Gear

Full Hydraulic Steering

Brake

Disc type

Working
Device

Hydraulic System

Lifting Capacity at 610mm Behind Lift Point (N)

4200

3-Point Suspension

Category:I

P.T.O
Shaft

Speed (rpm)

540/1000

Spline Size

6- 35Rectangular Spline

OPTIONS

ROLL BAR,CANOPY
