Specifications
teflon fabricnon stick & anti static
high temperature resistance
chemical resistance
smooth face
Teflon Fabric
Teflon fabric is made up of high-capability fiberglass which has steeped into PTFE. It is a new product with high capability and multiform function of complex material.
Product Hierarchy:
As the largest supplier in China,Fleet offers a series of teflon fabric with following different grades:
Industrial grade: Be used for most applications requiring non-sticking, chemical resistance and superior heat resistance up to 360°C;
Standard grade: with enhanced wear resistance, smoothwith shiny surface.It is ideal to utilize as non-stick baking and cooking sheets;
Food contact grade:produced with DuPont nonPOFA PTFE dispersion, strict processing control.
C
onductive & Antistatic grade: could tailormake antistatic grades with the surface electric resistance 105~108.
Technical data sheet of teflon fabric:
Item | color | thickness | width | weight | Tensile strength | Temp-Resistance |
H008AJ | brown | 0.08mm | 1250mm | 165g/m² | 130/120N/cm | -140 to 360°C |
H008BJ | black | 0.08mm | 1250mm | 170 g/m² | 130/120N/cm | -140 to 360°C |
H008Y | black | 0.08mm | 1250mm | 185 g/m² | 130/120N/cm | -140 to 360°C |
H013AJ | brown | 0.13mm | 1250mm | 260 g/m² | 220/190N/cm | -140 to 360°C |
H013BJ | black | 0.13mm | 1250mm | 275 g/m² | 220/190N/cm | -140 to 360°C |
H013Y | black | 0.13mm | 1250mm | 290 g/m² | 220/190N/cm | -140 to 360°C |
H018AJ | brown | 0.18mm | 1250mm | 395 g/m² | 330/250N/cm | -140 to 360°C |
H018BJ | black | 0.18mm | 1250mm | 415 g/m² | 330/250N/cm | -140 to 360°C |
H025AJ | brown | 0.25mm | 2800mm | 490 g/m² | 410/330N/cm | -140 to 360°C |
H025BJ | black | 0.25mm | 2800mm | 510 g/m² | 410/330N/cm | -140 to 360°C |
H035AJ | brown | 0.35mm | 3200mm | 660 g/m² | 560/445N/cm | -140 to 360°C |
H035BJ | black | 0.35mm | 3200mm | 680 g/m² | 560/445N/cm | -140 to 360°C |
H040AJ | brown | 0.40mm | 3500mm | 780 g/m² | 820/500N/cm | -140 to 360°C |
H040BJ | black | 0.40mm | 3500mm | 820 g/m² | 820/500N/cm | -140 to 360°C |
H065AJ | brown | 0.65mm | 4000mm | 1150 g/m² | 1080/750N/cm | -140 to 360°C |
H090AJ | brown | 0.90mm | 4000mm | 1550 g/m² | 1500/1250N/cm | -140 to 360°C |
H090BJ | black | 0.90mm | 4000mm | 1650 g/m² | 1500/1250N/cm | -140 to 360°C |

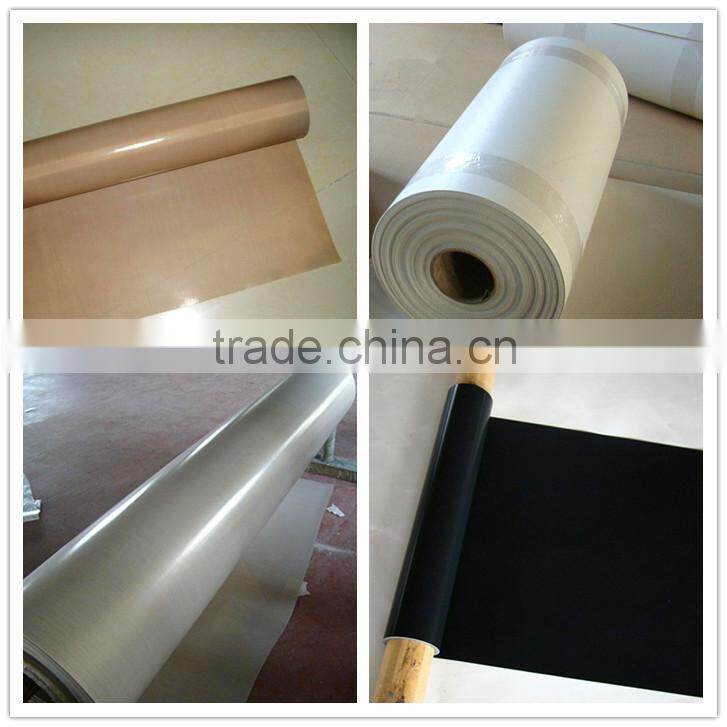

Product Picture of teflon fabric:
Fleet has always closely worked DuPont, with the authorization of using “TEFLON” trademark

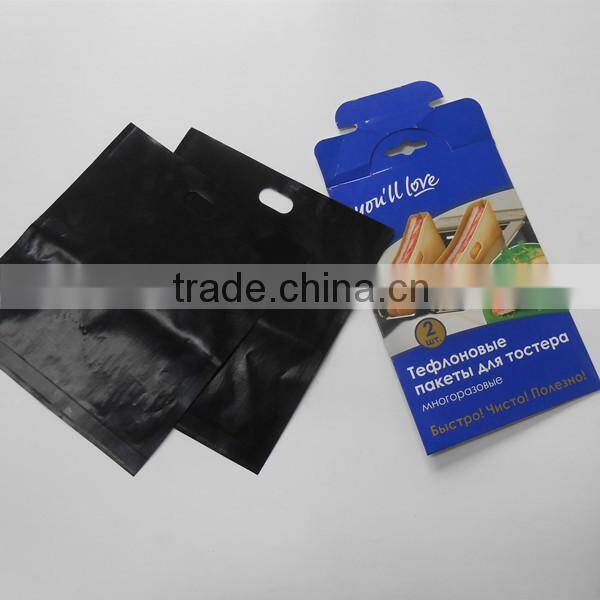

Teflon fabric apply in PTFE baking mat with FDA complied

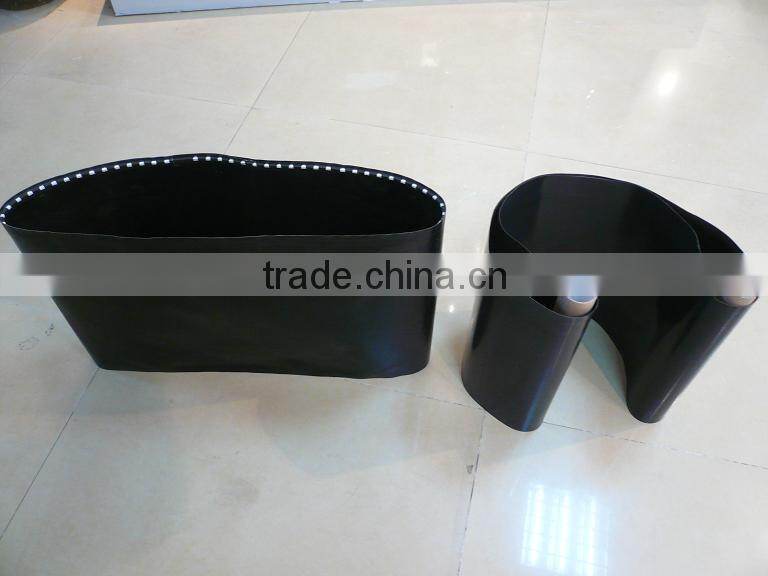

Teflonfabric apply in making conveyor belt with edge reinforcement, overlap joint as customer’s request.
Application of teflon fabric:
Release liners at high temperature: oven baking,grilling sheets, microwave liners, non-stick mould release,interlining sheets
High temperature conveyor belts for numerous applications: fuse pressing lamination of fashion garments, belts for the packaging industry, textile drying industry, lamination solar panels, chemical and pharmaceutical conveyor belts
Sealant fabric for expansion joints and oil tanks flexible covers
Insulation jacketing for pharmaceutical and petrochemical industry
Laminating layer of high frequency PCB

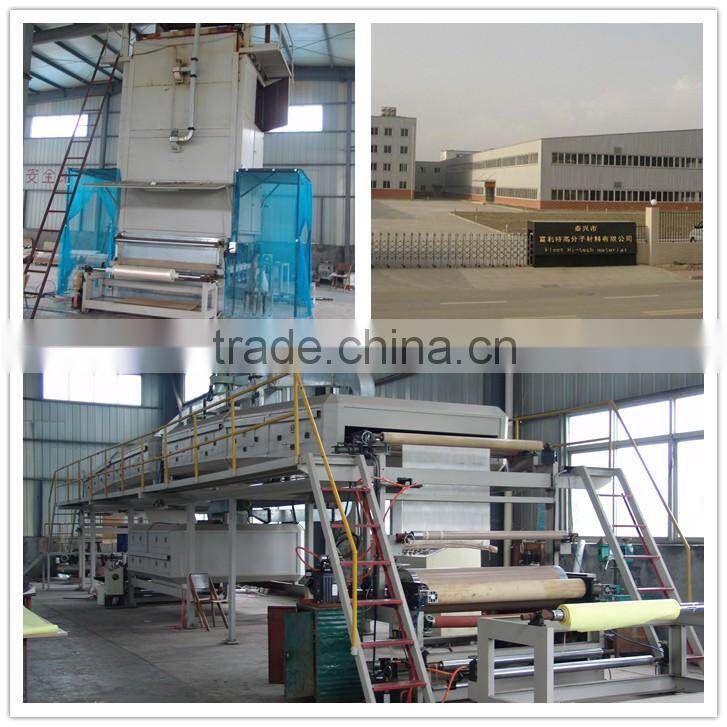

About factory
Finished product warehouse of
