Help CenterPowerful Hammer Rock Drill YT27
Related Products
-
High Effeciency YT29 Air Leg Rock DrillUS$ 1 - 300MOQ: 1 Piece -
YO18 Hand Hold Rock Drill High Quality ToolsUS$ 1 - 300MOQ: 1 Piece
-
Pneumatic Tools YT28 Pneumatic Air Leg Rock Drill With Air CompressorUS$ 1 - 300MOQ: 10 Sets
-
YT29 Hand Hold Air Leg Rock Drill High Quality MachineUS$ 1 - 300MOQ: 1 Piece
-
Penumatic Tools YT29 Jack HammerUS$ 1 - 300MOQ: 10 Pieces
Specifications
1. high quality materials2. scientific forging
3. heat treatment
4. safty and economy
Applications:

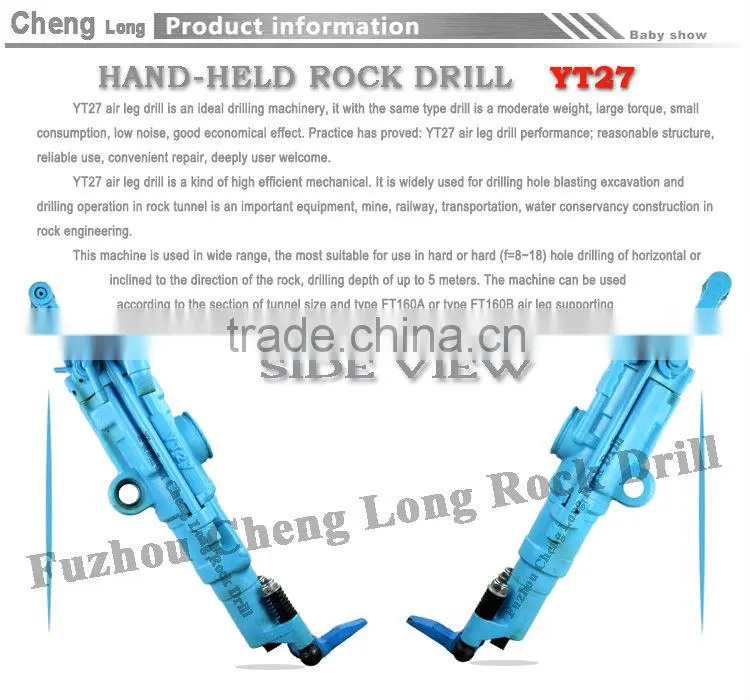

The YT27 pneumatic rock drill machine is a kind of high efficiency hand-hold rock drill machinery.
It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defense project facility.
It is suitable for drilling and blasting under various of rocks at any direction angles. Blast hole dial is 34-42mm,drill hole depth is 5 m.
Features
1. Air leg rock drill widely used in coal, metallurgy, railway, transport, water, infrastructure and national defense projects of various levels of rock, tilt, down the hole drilling operations
2. The use of modern design means,performance of each product is optimized.
3. For all operating agencies were arranged according to ergonomic principles, to ensure that the products of high-performance, high efficiency and convenience of operation, security.
4. Quality materials and scientific and forging, all reflect the "quality " content, to ensure that the products of high strength, high wear resistance and impact resistance.
5. CNC machining, Uncase automatic line treatment, given "quality" of the guarantee and the "tough" self-confidence.
6. Computer-controlled drilling machine from the factory run test bed, grasp the dynamic characteristics of each product to avoid the occurrence of human error to ensure that the manufactured products of excellent quality and superior performance.

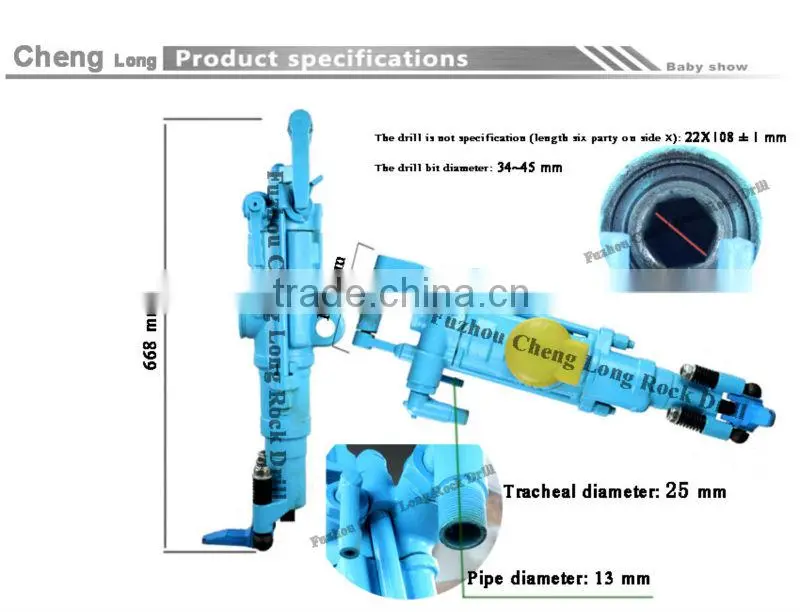

Machine specification
Weight |
27kg |
Type FT160A air leg(optional) |
|
Overall length |
668mm |
Leg length |
1668mm |
Diameter of cylinder |
80mm |
Propulsion stroke |
1338mm |
Piston stroke |
60mm |
Weight |
17kg |
Inner diameter of air pipe |
25mm |
FT160B Air-leg |
|
Inner diameter of water pipe |
13mm |
Length of air-leg |
1428mm |
Specification of bit shank |
22×108mm |
Propulsion stroke |
1098mm |
Operating air pressure |
0.4-0.63MPa |
Weight |
16kg |
Impact frequencey(0.63MPa) |
≥36.7Hz |
FY250 Oil reservior |
|
Impact energy(0.63MPa) |
≥75.5J |
Capacity |
0.25L |
