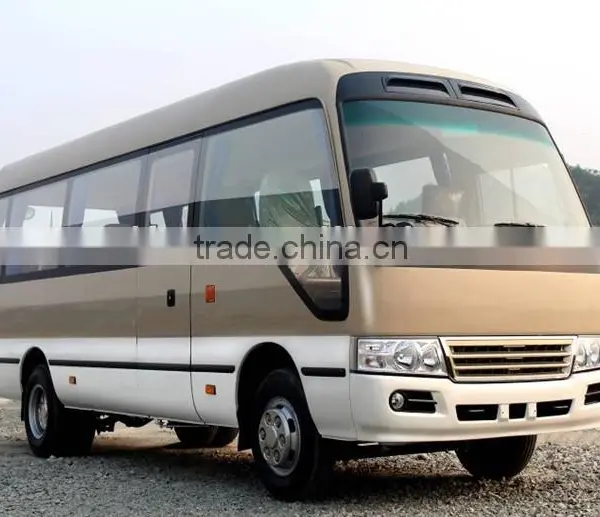

Dongeng Coaster 10-23seats Bus

Specifications

Dongfeng bus
1.High fuel efficiency
2.Custom manufacturing
3.Excellent cold start performance
4.Compacted yet durable engine

Dongeng Coaster 10-23seats Bus



1. Introduction

Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd was founded in South Africa in 2003, Dongfeng Group, specializes in vehicles and machinery export business critical enterprise. Our main business covers Dongfeng commercial vehicle, passenger car products, automobile equipment and auto parts export. Our products are exported to Southeast Asia, Middle East, South America, Eastern Europe and many other countries.

We export commercial vehicles cover all series of Dongfeng Brand.

• Dump Truck Series
• Cargo Truck Series
• Tractor Series
• Special Purpose Vehicles
• Military Vehicle Series
• Passenger Vehicles Series

2. Feature

• The cab: Dongfeng tractor adopt luxurious cab with the comfortable shock-free driving seat, the electric controlled glass and the central lock device, this guarantee the driving comfort ability; At the same time, the knee shield guard improve the security of the driver and the passengers. This cab also brings down the drag coefficient to reduce the fuel consumption.
• The engine: The tractors used Cummins engine which provide excellent grade ability, strong horsepower and bring down the oil consumption, reduce the operating cost for client.
• The chassis: The Dongfeng chassis make the tractors have big ground clearance and excellent traffic ability and adaptability to various vile roads.
• The gearbox: The Fast Brand gearbox adopts serration processing technology to lower the noise and vibration and increase the reliability.

3. Specification

Warranty Period: 12 months(calculating from the date the vehicle arrives at the destination port) or 50,000 kilometers, whichever comes first..



Bus Model		EQ6700L4D
Chassis  Model		EQ6680KS4D
L×W×H(mm)		6990×2050×2645
Wheel Base(mm)		3935
Tread (Front/Rear)(mm)		1675/1525
Max G.V.W(kg)		6500
Curb Weight(kg)		4100
F/R Axle Loading Weight(kg)		2300/4200
Seat No.		22+1
Max Speed(km/h)		110
Engine	Manufacturer	Guangxi Yuchai Engine
	Model	YC4FA130-30
	Mode	Four Cylinder In line,supercharged and mid-cooling,BOSH Common Rail
	Displacement	Euro III
Clutch		Diaphragm Spring Clutch,§325mm,Air Assist
Gear Box
Suspension System		Spring Leaf(3/4),Hydraulic shock absorber,Front Stabilizer Bar
Front Axle		2.3T,Drum Brake;
Rear Axle		4.2T,Drum Brake;
Brake System	Driving Brake	Pneumatic double circuit
	Parking Brake	Air Braking
	Assist Brake	No
	Auto-Adjust Arm	Chinese Brand
	ABS	No
Steering System		Power Steering
Tyre		7.00R16
Oil Tank		90L
Water Tank		Copper Water Tank
Electrical		24V,Single Line,Minus Earth
Horn		Electrical Horn
Others		/
Body Structure		Half Frameless, Light Weight Frame + Stamping Skin,High Roof
Lamp		Compete Lamp
Back View Mirror		Luxury Mirror with Under Mirror
WindowScreen Wiper		Same Direction Wiper
Side Window		Closed Window
Ppassenger Door		Pneumatic Pendulum Outside Door
Window		Electrical Roof Window ,With Safe Hammer
Rear WindowScreen Wiper		Standard Configuration
Rear Floor Mirror		Standard Configuration
High Brake Light		Standard Configuration
Wheel Alloy		Aluminium Alloy
Trim		Yellow Color And Cleanable
Instrument		Luxury Instrument
A/C		Split independent A/C
Defrost System		Front Block defroster
Warm Braw		2 Radiator
Audio-Visual System		MP5+Film+Television
Sun Shield		Left-Right Single Folding Mirror
Inner Mirror		Standard Configuration
Electrical Clock		Standard Configuration
Inner Roof Light		Single Roof Light
Curtain		Light Yellow Folded Curtain
Driver Seat		High Bak Rest,Front/Rear Adjustable,Storage Box Under Seats
Passenger Seats		2+1 Line,23 Seats,Middle-Level Seats,Backrest adjustable,with Arm Rest
Guard Bar		Stainless Steel Guard Bar
Floor		Floor Covering
Painting		PPG Metal Painting (DII)
Color		Coaster Yellow Color
Others		Fire Extinguisher+Rubbish Bucket+Tooling Bag



 4. Other Picture:
