Help CenterBrand New Desert 4x4 Off-road Bus, Truck
US$ 35,000 - 133,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Seats:
11 - 20
Emission Standard:
Euro 3
Transmission Type:
Manual
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dongfeng EQ5160XSGC Off-road Desert BusUS$ 135,000 - 140,000MOQ: 2 Sets -
Dongfeng 12m Luxurious Bus/coach BusUS$ 100,000 - 150,000MOQ: 1 Unit
-
DONGFENG 7m City BusUS$ 35,000 - 133,000MOQ: 1 Unit
-
10-23 Seats Dongfeng Coaster EQ6701LHT With Diesel for SaleUS$ 35,000 - 133,000MOQ: 1 Unit
-
Bus Coaster--DONGFENG Coaster EQ6701LTUS$ 35,000 - 133,000MOQ: 1 Unit
Seats
11 - 20
Emission Standard
Euro 3
Transmission Type
Manual
Max Speed
71 - 90 km/h
Steering Position
LHD
Fuel Type
Diesel
Dimensions (L x W x H) (mm)
7680*2500 (truck bed )2700(tire)*3380
Place of Origin
Hubei, China
Brand Name
Dongfeng
Model Number
EQ5160XSGC
Specifications
Off Road Bus1.High fuel efficiency
2.Custom manufacturing
3.Excellent cold start performance
4.Compacted yet durable engine

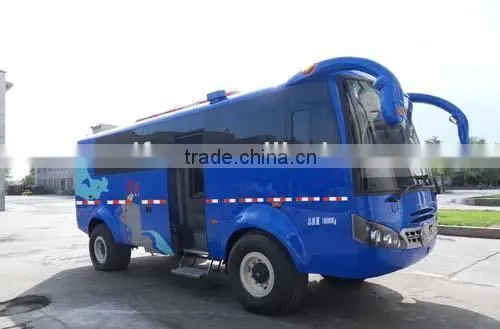

brand new desert 4x4 off-road bus, truck
1. Introduction
Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd was founded in South Africa in 2003, Dongfeng Group, specializes in vehicles and machinery export business critical enterprise. Our main business covers Dongfeng commercial vehicle, passenger car products, automobile equipment and auto parts export. Our products are exported to Southeast Asia, Middle East, South America, Eastern Europe and many other countries.
We export commercial vehicles cover all series of Dongfeng Brand.
- Dump Truck Series
- Cargo Truck Series
- Tractor Series
- Special Purpose Vehicles
- Military Vehicle Series
- Passenger Vehicles Series
2. Feature
- The cab: Dongfeng tractor adopt luxurious cab with the comfortable shock-free driving seat, the electric controlled glass and the central lock device, this guarantee the driving comfort ability; At the same time, the knee shield guard improve the security of the driver and the passengers. This cab also brings down the drag coefficient to reduce the fuel consumption.
- The engine: The tractors used Cummins engine which provide excellent grade ability, strong horsepower and bring down the oil consumption, reduce the operating cost for client.
- The chassis: The Dongfeng chassis make the tractors have big ground clearance and excellent traffic ability and adaptability to various vile roads.
- The gearbox: The Fast Brand gearbox adopts serration processing technology to lower the noise and vibration and increase the reliability.
3. Specification
Warranty Period: 12 months(calculating from the date the vehicle arrives at the destination port) or 50,000 kilometers, whichever comes first..
| Product name and model | EQ5160XSGC | Drive mode | 4×4 |
| Size parameters | Overall dimensions: length×width×height(mm) | 7680×2500 (truck bed )2700(tire)×3380 | |
| Container inside dimension: length×width×height(mm) | 2835/1500×2375×1650 | ||
| Wheel base(mm) | 4500 | ||
| Tread(Front/Rear)(mm) | 2110(Cross-country tire)/2150(Desert tire) | ||
| Front overhang /Rear overhang (mm) | 1730/1450 | ||
| Approach angle /Departure angle (º) | 30/38 | ||
| Minimum ground clearance(mm) | 430 | ||
| Oil tank capacity (L) | 350 | ||
| Performance parameters | Maximum speed (km/h) | 76 | |
| Minimum turning diameter(m) | 19 | ||
| Maximum gradability (%) | 40 | ||
| Mass parameter | Unladen mass (kg) | 10200 | |
| Rated load mass (kg) | 4890 | ||
| Gross mass(kg) | 16000 | ||
| Engine | Model and variety | Straight inter-cooled 6-cylinder water-cooled diesel engine | |
| Model | ISDe245 30 | ||
| Discharge capacity(ml) | 6700 | ||
| Fuel type | Diesel | ||
| Rated power /speed (kW/r/min) | 180/2500 | ||
| Maximum torque /speed (N.m/r/min) | 900/1200-1700 | ||
| Cylinder diameter×travel route(mm×mm) | 114×135 | ||
| Compression ratio | 17.3:1 | ||
| Clutch | Model and type | Dry single disc clutch | |
| Control mode | Hydraulic remote control | ||
| Wearing piece diameter (mm) | φ430 | ||
| Transmission | Model, type | QJ1206)mechanical 6-gear | |
| Control mode | Soft shaft control | ||
| Forwardgear digit | 6 | ||
| Speed ratio | 9.013 5.241 3.223 2.201 1.504 1.0 R 8.3 | ||
| Auxiliary box | Speed ratio | 1.00 1.75 | |
| Frame | Structure type | Riveted structure | |
| Longitudinal beam cross dimensions (mm) | 280x80x8+4 | ||
| Electrical appliances | Electrical appliance line voltage(V) | 24 | |
| Accumulator modelquantity | 16-QA-180D 2 pieces | ||
| Generator Voltage/Current | 28V,70A | ||
| Number of passengers in the cab (number) | 13+1/19+1 | ||
| Chassis | Modeland type | EQ2161QGX60DJ | |
| Number of axles and tire | Number of axles | 2 | |
| Wheel felloe model | (Desert tire)14.00-20 ( Cross-country tire)10:00W-20 | ||
| Tire specification and tire number | (Desert tire)20-20 (Cross-country tire)14.00R20 4+1 | ||
| Redirector | Steering type | Power steering | |
| Frontgear | Type | Cast rigid axle housing with hub reduction gear | |
| Rated load(t) | Grade 7T | ||
| Reargear | Type | Cast rigid axle housing with hub reduction gear | |
| Rated load(t) | Grade 10T | ||
| Braking system | Auto brake type | 2-circuit air braking | |
| Auto brake boost type | Pneumatic servo boost | ||
| Brake power adjustment type | Manual | ||
| Brake type | Drum type | ||
| Parking brake type | Spring brake | ||
| Emergency brake type | Spring brake | ||
| Overhang frame | Front | Type | Road spring |
| Rear | Number of road springs | 11 | |
| Type | Road spring | ||
| Number of road springs | 14 | ||

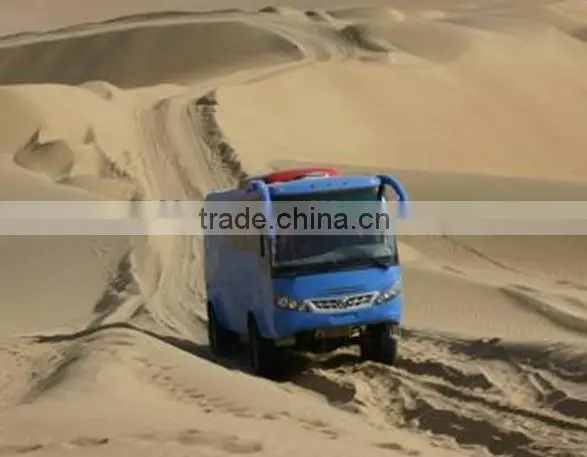

4. Other Picture:
