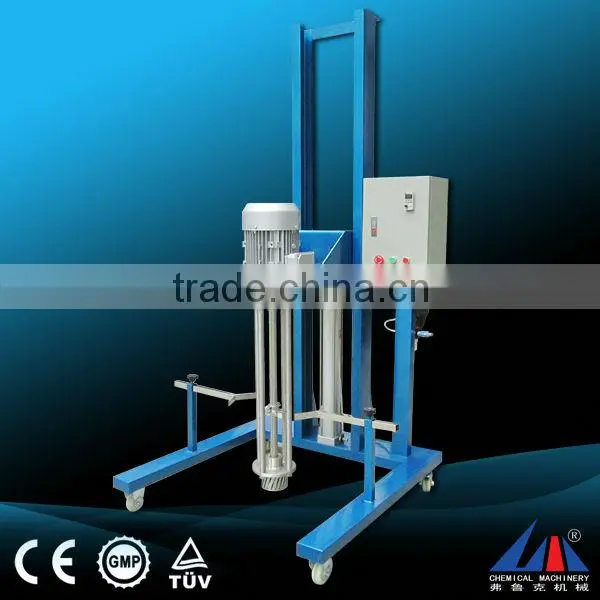

FLK Movablem High Shear Dispersing Emulsifier

FLK Movablem High Shear Dispersing Emulsifier thumbnail-1
FLK Movablem High Shear Dispersing Emulsifier photo-1
US$ 1,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Homogenizer
Product Type:
Cosmetic
Contact Supplier Request Quote Chat Now
Guangzhou Fuluke Cosmetics Chemical Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Mixer Type Homogenizer
Product Type Cosmetic
Application Liquid with Suspended Solids
Additional Capabilities Milling
Place of Origin Guangdong, China
Brand Name FLK
Model Number FML
Max. Loading Capacity 5000L
Voltage 380/220
Power(W) 11kw
Dimension(L*W*H) 3.6*3.3*2.85m
Certification CE
Warranty 1year
After-sales Service Provided No overseas service provided

Intermittent High Shear Dispersing emulsifying mixer



1.Machine type and power:

a)FSJ250 machine power: 5.5 kw /7.5kw/9-11 kw /11 kw /15 kw

b)FSJ350 machine power: 15 kw /18.5 kw /18.5-22 kw /30 kw

c)Other machine power: 30 kw /37 kw /45 kw /55 kw /75 kw /90 kw



2.Speed requirement:

a)speed type: single speed/ double speed/ stepless speed/ step

speed (multi-speed)

b)Shift mode: electromagnetism timing/ frequency conversion timing/

reducer timing/ shift belt timing

c)speed range: lower than 400rpm low speed/ 400-1200rpm high

speed/ higher than 1200rpm extra-high speed

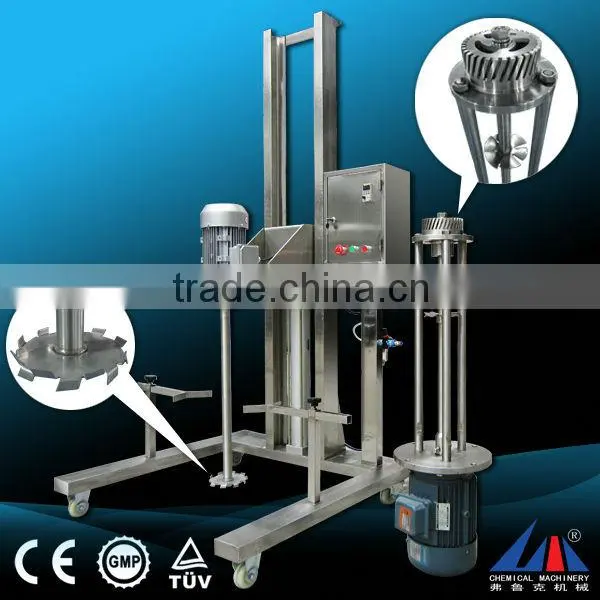

3.dispersing disk type: flat disk sawtooth type/ three-fork plasm type/ butterfly type/ other type



4.ratio between diameter of feeding tube and diameter of dispersing wheel:3-4:1



5.motor and electrical appliance: flame-proof type/ non- flame-proof type, i.e. common type/

special requirement type





Intermittent High Shear Dispersing Mulser technical parameter:



Model

FML5.5

/7.5

FML11

FML11

FML15

Or FML18.5

FML

22

FML

30

FML

55/75

FML

90

motor power (kw)

5.5or 7.5

9/11

or 11

9/11

or 11

15

or 18.5

22

or 18.5/22

32/45

or 45

55 or 75

90.

Dispersing.shaft

Rotating.speed (rpm)

0-1200

1065/2130

0-1200

1065/2130

0-1200

1065/2130



0-1200

0-1200

800/1200

0-1200

800/1200



0-1200

800/1200





1000 or

adjustable

raise-fall

process (mm)



900



900



1100



1100



1100



1450



1600



1800

center distance (mm)



900



950



1100



1100



1100



1465



1500



1600

Weight (kg)



700



800



1200



1200



1200



2500



3500



4000

Shape dimension

Length(mm)



1800



1800



2200



2200



2200



2700



2800



3000

Width(mm)



750



780



900



900



900



1100



1100



1200

Height(mm)



1820



1820



2400



2400



2400



2800



3200



3400

 FLK movablem high shear dispersing emulsifierFLK movablem high shear dispersing emulsifier

FLK movablem high shear dispersing emulsifierFLK movablem high shear dispersing emulsifierFLK movablem high shear dispersing emulsifierFLK movablem high shear dispersing emulsifierFLK movablem high shear dispersing emulsifierFLK movablem high shear dispersing emulsifierFLK movablem high shear dispersing emulsifier
