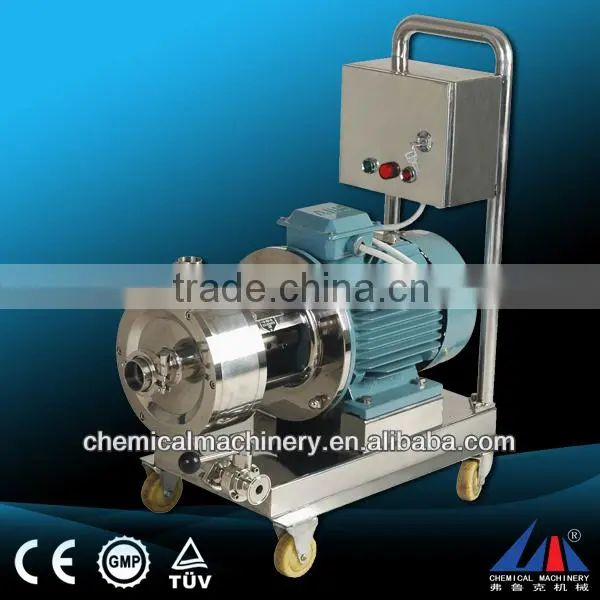

PRODUCT NAME: FLK Pipeline/Inline High-Shear Mixer/Emulsifier

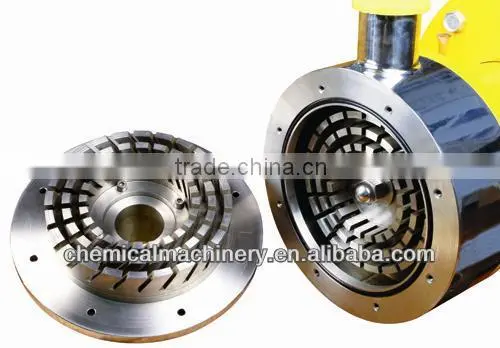

PRODUCT INTRODUCTION: The piple line type high shear mixer is the high performance equipment used for continuous production and circular processing of fine materials. Inside the narrow space of its chamber, it's assembled with 1-3groups of dual-geared stators and rotors of multilayer. The materials are sucked into the chamber by strong asial suction produced by fast-turing rator driven by the motor. Within the shortest time, the material will be processed by the operation of dispersing, shearing and emulsification, after which the size distribution will be within a narrow range, and the finised products will be fine and stable for a long time.
FEATURES:
1) Mixing oil and water phases materials in high speed to get perfect emulsion product of good quality.
2) Machine consists of vacuum-resistant vessel with jacket for heating and cooling. Equipped with high speed homogenizer, scraping agitator, vacuum pump, and hydraulic pump for lifting, heating & cooling system.
3)With vacuum pump to take the air bubbles out of mixed product, and extend the time of storage.
4) Scraping unit is with moveable teflon scrapers to scrape off the materials on the tank wall and the anchor to move the materials to the center area to get better blending and mixing. The teflon scrapers are maintained manually and easily without any tool.
5) Our vacuum emulsifying equipment equipped with heating & cooling system which simplifies the processing. Within this same equipment, you can do from heating-melting-emulsifying-air bubble reduction(by vacuum)-cooling without changing vessels, it saves lot of labor and time for your production.
6) All contacted parts of equipments are SUS316L,the product homogenized in vacuum and close vessel can be sanitary and high quality.
7) The measuring of raw materials, the recording of temperature for heating, melting, emulsifying, cooling, and the change of mixing speed, and the vacuum suction can be controlled.
APPLICABLE FIELDS
Cosmetic Industry: Cream, Lotion, Lipstick, Shampoo;
Pharmaceutical Industry: Ointment, Syrup, Injection;
Food Industry: Mayonnaise, Dressing, Jam, Butter, Margarine;
Chemical Industry: Polyester, Synthetic Fiber.
MAIN MODELS & SPECIFICATIONS:
Model |
Power(KW) |
(rpm) Rotation Speed |
Flow range (m3/hr) |
FMG-60 |
1.5 |
2800 |
0-1.5 |
FMG-100 |
2.2 |
2800 |
0-3 |
FMG-120 |
4 |
2800 |
0-4 |
FMG-140 |
5.5 |
2800 |
0-5 |
FMG-165 |
7.5 |
2800 |
0-8 |
FMG-180 |
11 |
2800 |
0-12 |
FMG-185 |
15 |
2800 |
0-18 |
FMG-200 |
22 |
2800 |
0-25 |
