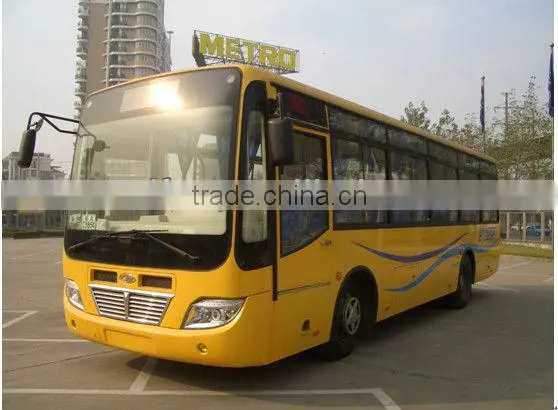

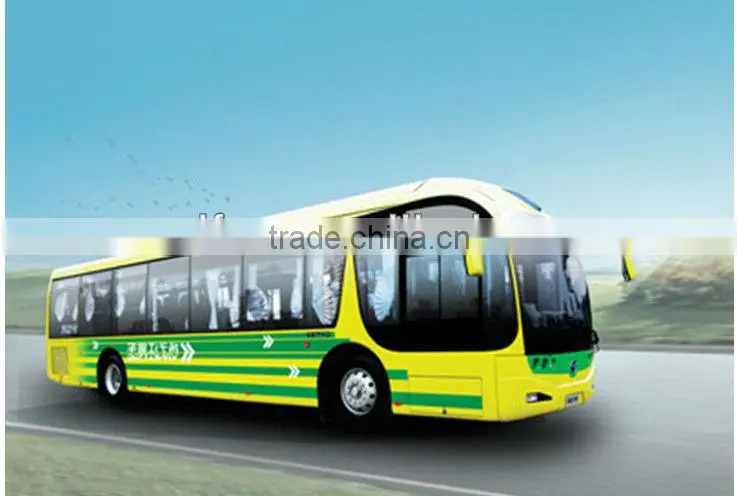

Dongfeng City Bus WG6110NQC

Name: Dongfeng City Bus WG6110NQC
Brand: Dongfeng
SKU: 100482617

US$ 30,000 - 100,000 MOQ: 2 Sets

Key Specifications

Seats:

Other, 21 - 40, Optional

Emission Standard:

Euro 3

Transmission Type:

Manual

Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Seats Other, 21 - 40, Optional

Emission Standard Euro 3

Transmission Type Manual

Max Speed 91 - 110 km/h

Steering Position LHD

Fuel Type Gas / Petrol

Dimensions (L x W x H) (mm) 10830*2480*2990

Place of Origin Hubei, China

Brand Name Dongfeng

Model Number WG6110NQC

Specifications

Dongfeng City Bus WG6110NQC:
1. High-performance
2. Professional design
3. Competitive quotation

Dimension				Weight
Unit mm				Unit kg
Length	10830			Max. Permission loading(kg)	13000
width	2480			Wheel treed	5000/8000
Height	2990(NO AC) /3155(with AC)			Seat	23-40
Wheel base	5370			(m³/100km)/(L/100km) Gas consumption/oil consumption under limited condition	27
Serial NO	Chassis		Standard specification
1	model		EQ6100KSDN3G
2	Clutch		Single plate,dry type spiral spring, hydraulic auxiliary system
3	Gear box		QJ605 Manual mechanical,automatic,5 forward gears and 1 backward gear model:model:QJ605
4	Front axle		30NS09H-00005,5.5T End fist structure,I-beam structure Model:30NS09H-00005 capacity: 5.5T
5	Rear axle		24BS06C-00005:8T Integral housing,single grade decelerate,model:24BS06C-00005, capacity: 8T
6	suspension		(12/13) Leaf spring dual-effectual drum type absorber,multiple spring(12/13)
7	wheel		9.00-20		10.00-20 Optional 10.00-20
8	Steering		power steering
9	CNG(L) CNG Cylinder capacity		80×5
10	driving brake		Dual circuit air brake system drum type brake
11	parking brake		Spring storage brake
12	Assistant parking brake		None		ional:Eddy current retarder
13	Central lubrication		None		Optional
Engine
model		NQ150N
fuel type		CNG
Displacement		5638
(kW/rpm) Max. power		110/2600
(N.m/rpm) Max.torque/rotational speed		520/1200~1600
