Automatic granule packing machine
1.Combined parts
(1) GH420B vertical packing machine

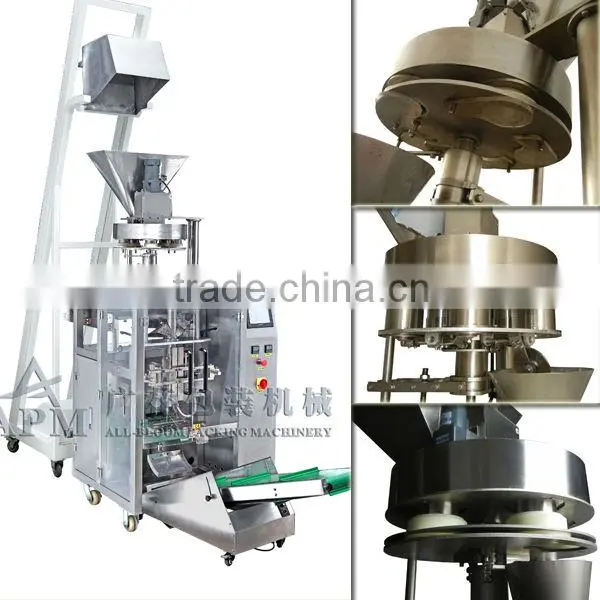

(2) Volumetric cups doser
(3) Lifting eleator
(4) Finished product conveyor
2.Features
(1)The packing machine completes the whole procedure of feeding , measuring, bagging, date printing, charging (exhausting),
(2)finished roduct out-putting automatically
(3)The complete sets of machine is convenient and economical
According to he character of material, the volumetric cups can be designed as open-close type to avoid destroying materials.
3.Application
Suitable to package free-flowing granule such as peanuts,rice,sugar,salt,washing powder,grain.etc

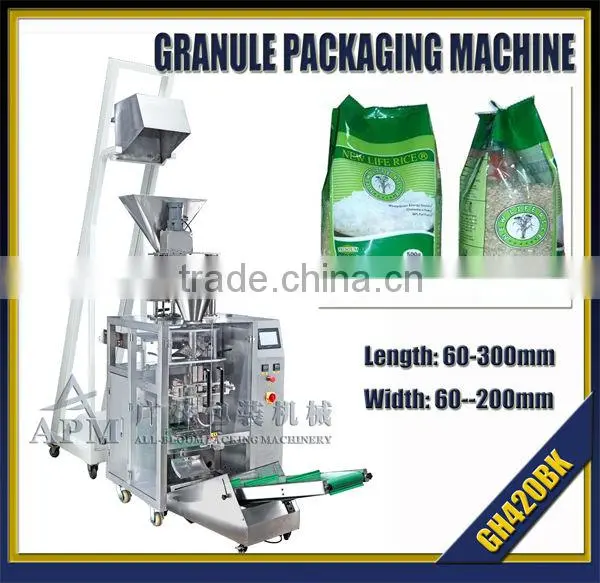

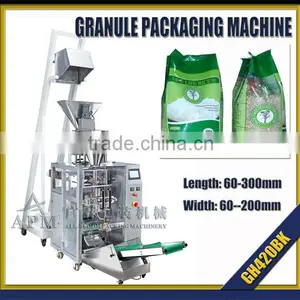

4.GH420B Vertical Packing Machine
(1). Famous brand PLC control system, large touch screen, convenient to operate;
(2). Film drawing down system and horizontal sealing controlled by servo motor;
(3). Various alarm system to reduce waste;
(4). It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.

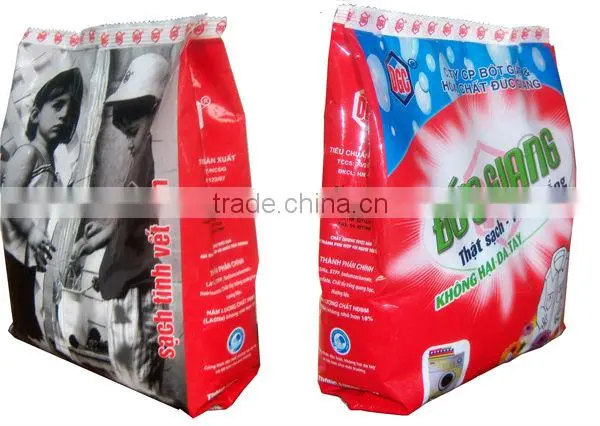

(5). It can make pillow bag, gusseted bag, standing up bag, according to customer’s requirements.
5.Specification
Model:GH420BK
Capacity:Max.60bag (according to the nature of the product).
Measuring method:Voluemtric cup system
Measuring range:100-1000ml(change the cups )
Bag size: Length:60--300mm,Width:60--200mm
Film width:140--420mm (change bag former)
Film thickness:0.04--0.09mm

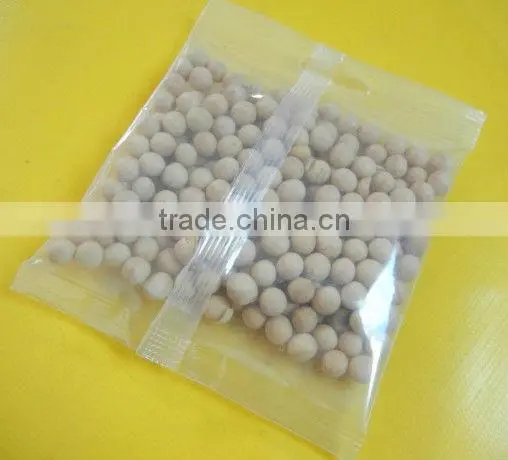

Bag type:Pillow sealing bag or gusseted bag
Air consumption:0.8Mpa 0.4m3/min
Power: 220V(380V)/50HZ,3KW
Dimension:3500*1100*2400mm
Certification:CE
