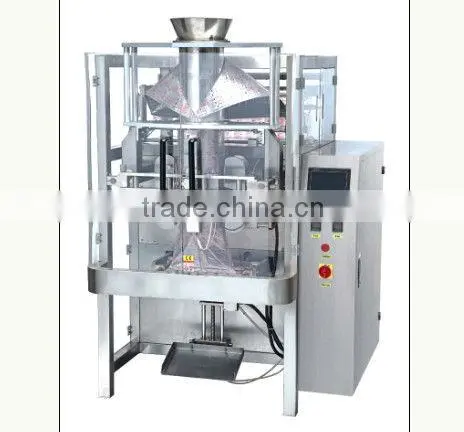

100g--5000g large volume granule automatically packing machine

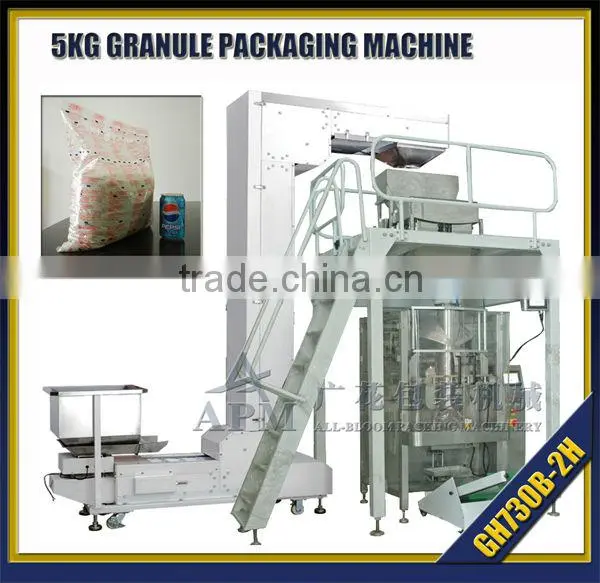

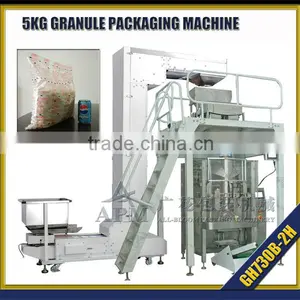

Combined parts

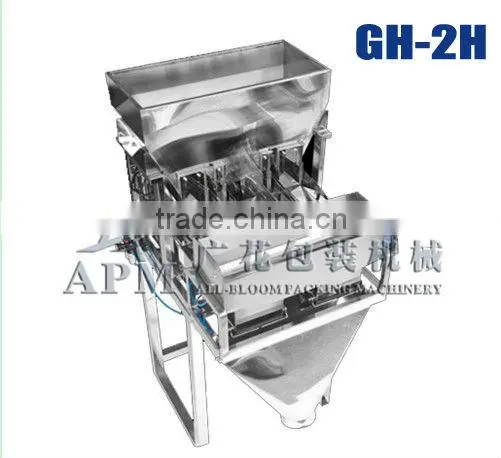

1. GH730B Packing Machine 2. 2 heads linear Scale 3. Z type bucket elevator
4. Supporting platform 5. Finished product Conveyor
Options
1. Chech weigher 2.Metal detector 3.Turntable
Features
1.The machine completes the whole procedure of feeding, measuring, bagging, date printing, charging(exhausting), finished product outputting automatically.
2.High accuracy, high efficiency without crashing the material
Application
Suitable to package small granule materials demanding high accuracy, such as sugar, salt, seeds, rice, sesame, etc.
Features of GH730B
1. Double servo motors for film drawing down system;
2. Automatic film rectifying deviation function;
3. Famous brand PLC. Pneumatic system for vertical and horizontal sealing;
4. It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.
5. It can make pillow bag, gusseted bag, standing up bag, according to customer’s requirements.
Specification
Model: GH730B-2H
Weigh range:100G--5000G
Dosing part: 2 heads linaer weigher
Bag sealing : back sealing/pillow sealing/center sealing
Capacity: 7-30 bags/minute(according to the material and bag size)
Bags size:Length:100---450mm Width:140---350mm(change bag former)
Film width:300--730mm(change bag former)
Film width: 0.06--0.12mm ,laminated film
Air consumption:0.8Mpa 0.8m3/min
Power: 1N+PE/50HZ/AC220V(380V)/4.5KW
Whole height: 3.8meter
