12V 1.25A AC DC power supply for Gemalto Magic 3 M series Pos terminal
Electrical Characteristics:
- AC input voltage ……100-240VAC
- Output ………12V 2A
- Input frequency ………47-63Hz
- AC inrush current(max.) …….20A/230V
- Line regulation (full load).......±0.5%
- Peak- to -peak ripple …….<500MV
- Working temperature………….0-35°C@100%,50°C@70% load
- Setup rise hold up time………100ms,50ms,20ms@240VAC input
- Strong made totally compatible part
- Over voltage protection………115%-135% rated output voltage
- Withstand voltage………I/P-O/P 3Kvac,1 minute
- Over load protection ………115%-135%fold back current limiting, Auto-recovery
- Input Condition ……… 100 to 240VAC 50/60 Hz 1A Max
- Input Rated Voltage ……… 100 to 240VAC
- Input Voltage Range ……… 90 to 264VAC
- Input Rated Frequency ………50/60Hz
- Input Frequency Range ……… 47Hz to 63Hz
- Inrush Current ……… 60A Max
- No Load Power Consumption ……… within 0.3W
- Efficiency ……… 80% Min
- Line Regulation……… ± 1%
- Load Regulation ……… ± 5%
- Over Shoot ………10% Max
- Ripple And Noise……1% Max
- Rising Time ……… 20ms Max At 115Vac
- Output Hold up Time ……… 8ms Min At 230Vac
- Protection ……… OCP OVP SCP OPP
- Dielectric Withstand Voltage ……… 3.75KV 5mA 60s
- Leakage Current ……… 0.25 mA At 230Vac
Environment:
- Operating Temperature: 0~40°C ,full load , normal operation
- Storage Temperature: -20~80°C with package
- Relative Humidity: 5%(0°C) ~90%(40°C) RH ,72 hours, full load,
Package included:
- 1x AC100-240V to DC 110-240V to 12V 2A Power Supply
Specification:
Input Voltage Range |
100-240 VAC 50/60 Hz |
|
Input Frequency Range |
47Hz to 63Hz |
|
Hold-up time |
10mS minimum at full load |
|
Peak Output Power |
24 Watts, 30 watts surge |
|
Current |
2000mA (2A) continuous, 2500mA (2.5A) surge |
|
Load Regulation |
±5% over rated current: 0 - 2 Amps |
|
Stability |
±2% after 30 minutes operation |
|
Output Voltage Nominal |
12 VDC |
|
Ripple and Noise |
<240mV |
|
Leakage Current |
100 microamps max |
|
Dynamic Load Regulation |
±5% excursion for 50% to 100% or 100% to 50% load change at any frequency up to 250Hz, 50% duty cycle |
|
Inrush Current |
35A max at 115VAC cold start |
|
Drop-out protection |
Remains regulated during a 1/2 cycle dropout |
|
Open Circuit Protection |
No damage when operated without a load |
|
Short Circuit Protection |
No damage from intermittent or continuous short circuit |
|
Over Voltage Protection |
If through power supply misfunction the power supply should supply over 16 volts it will immediately shut down. |
|
Over Current Protection |
The power supply will hiccough if the power drawn is determined too high. This power will be 5% or more than the rated power. |
|
Isolation |
HiPot 3000 VAC for 1 minute, leakage less than 10 mA |
|
Isolation resistance |
Gerater than 10 megohm at 500 VDC |
|
Surge Immunity |
IEC Pub. 801-5 level 4 |
|
ESD |
IEC Pub.801-2 Level 4 |
|
Temperature |
0 to 40°C Operation |
|
Shock and Vibration |
3-axis 0.5 mm displacement 2Hz to 55Hz to 2Hz, 7 minutes per cycle for 30 minutes |
|
Shipping Shock |
900mm drop in shipping container 8 times |
|
Altitude |
10,000 feet operation |
|
Input Connector |
IEC C7, two prong input socket allows cords for any country to be used, the North American cord is included. |
|
Output plug |
5.5 x 2.1 mm barrel connector, center positive, see below for othes |
|
Dimensions |
50mm x 32 mm x 90mm (2 inch x 1.25 inch x 3.5 inch) |
|
MTBF |
30000 hours at 90% confidence level at 220VAC input, full load and 40°C ambient. |
|
This inexpensive 12 volt DC switching power supply adapter is useful for verifone new version pos terminal verifone vx670 and vx680 directly ,do not need to use charger cable
Photos:

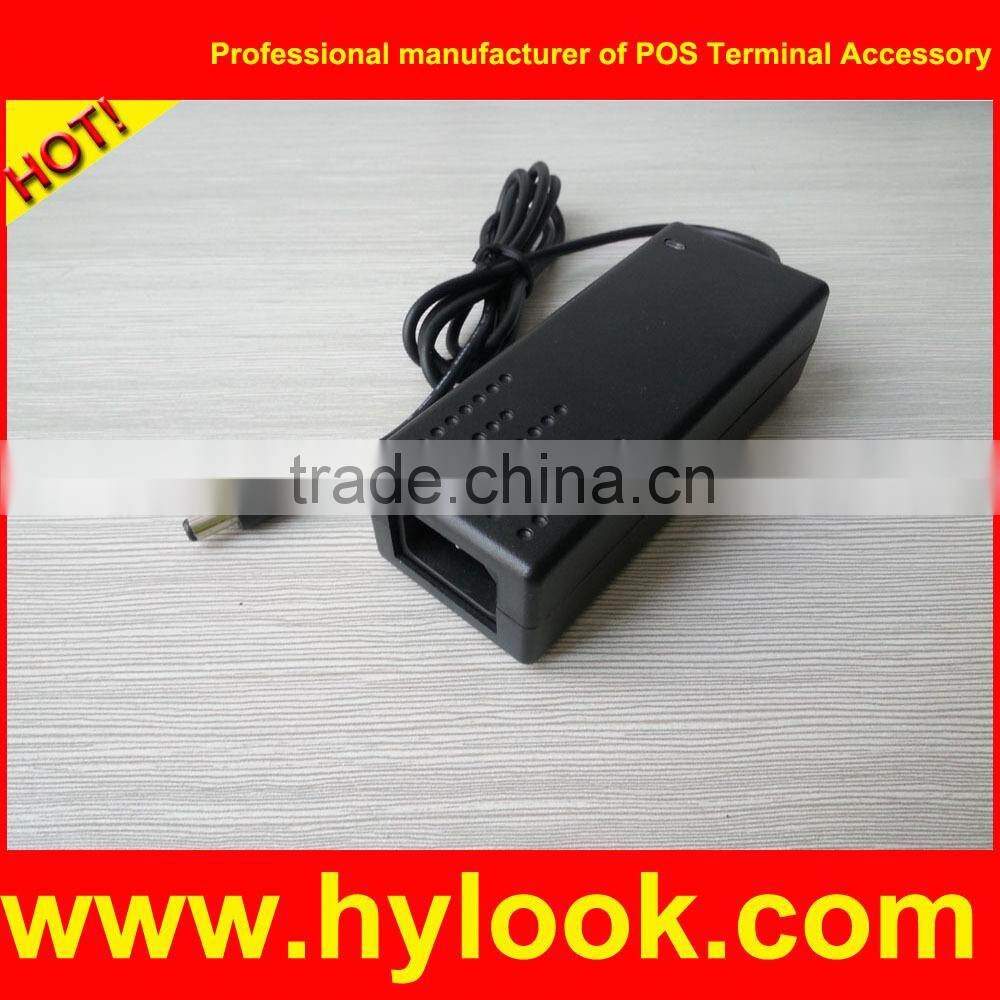

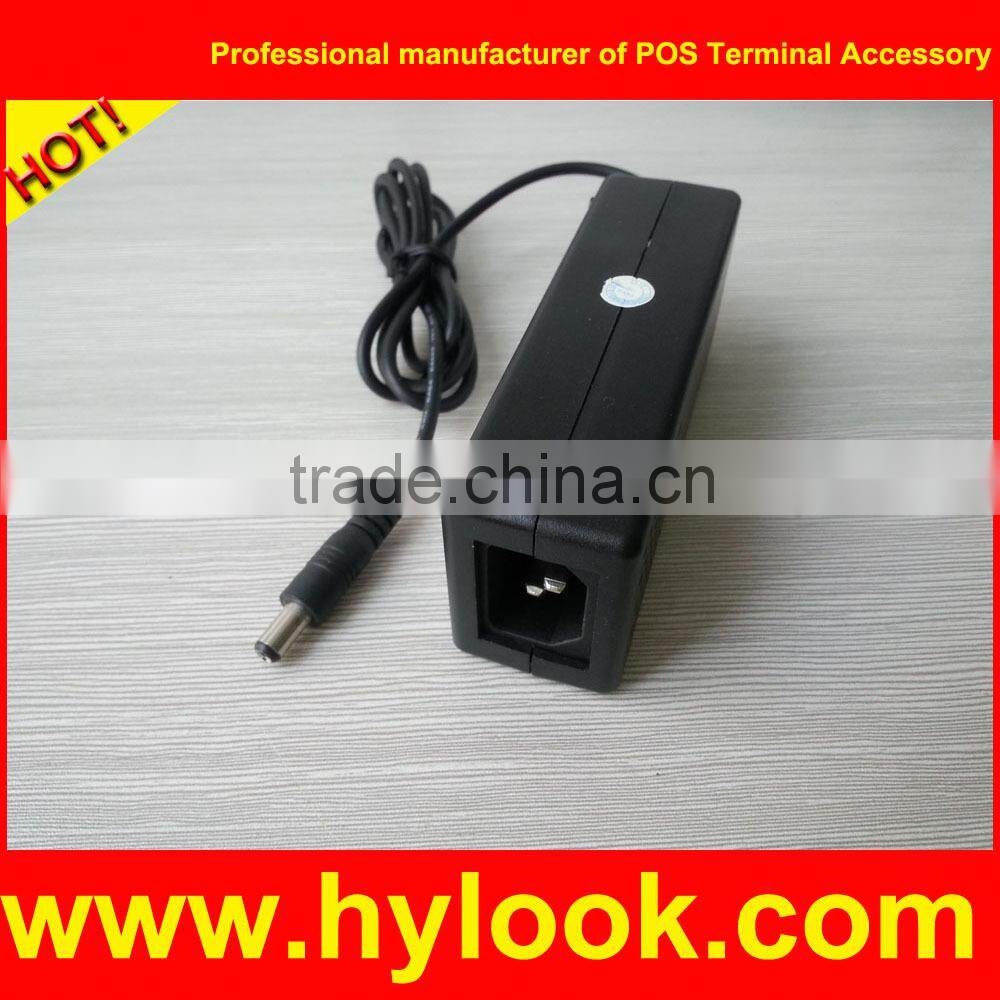

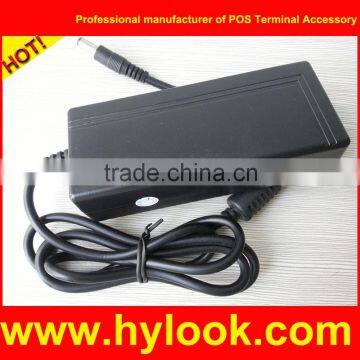

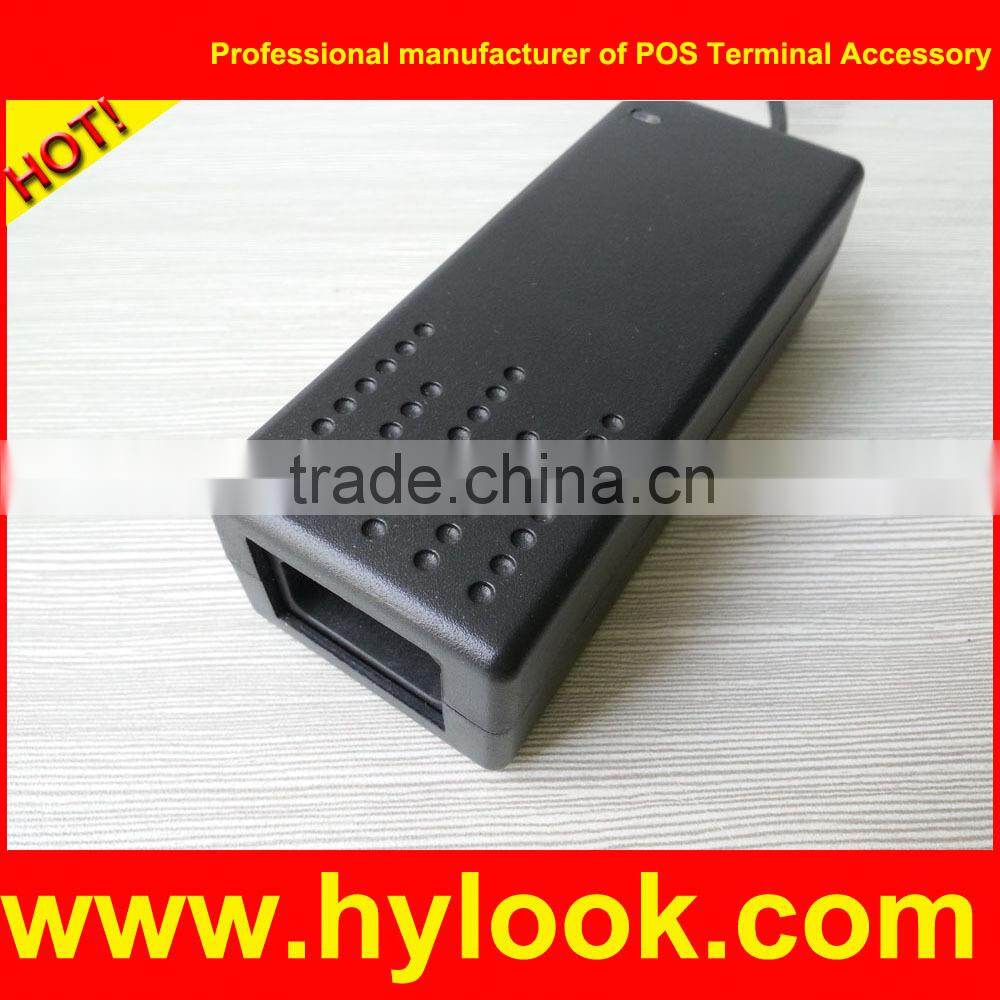

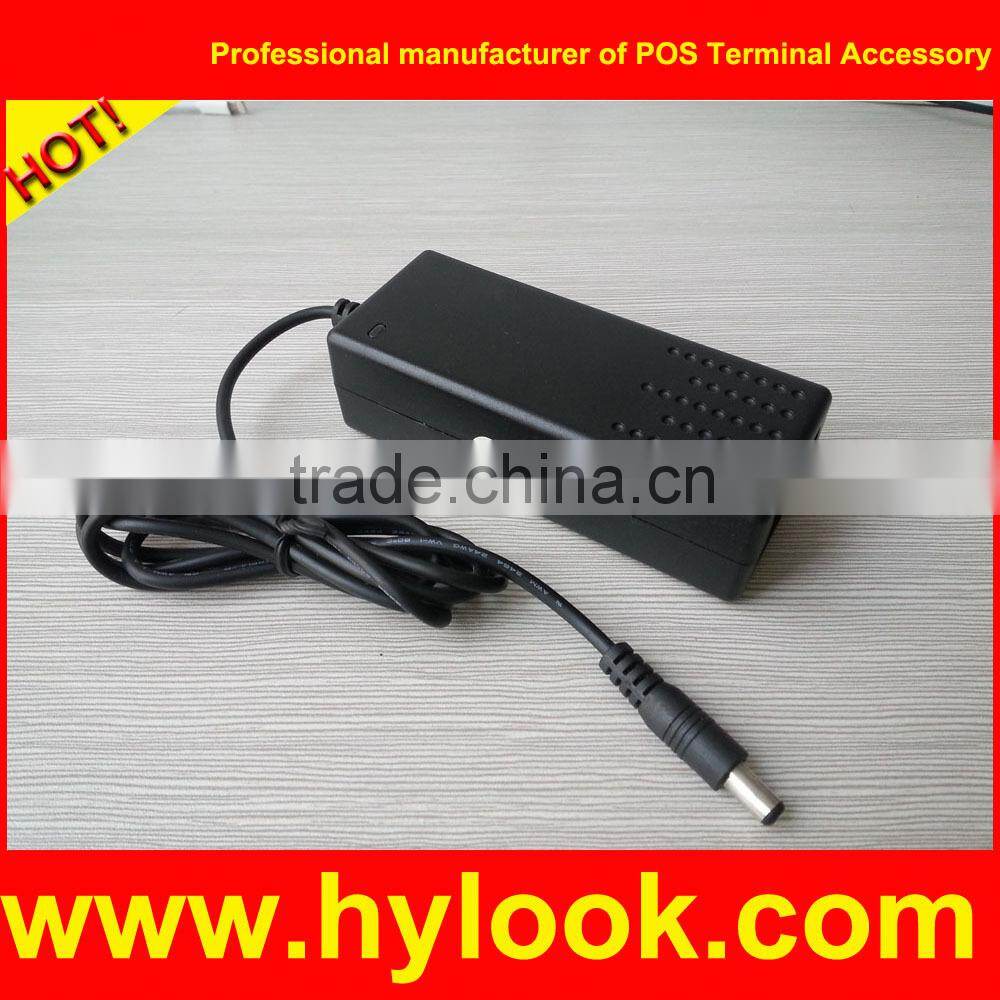

s for the power adapter
2.Photos for package
About us: |
|
l HYLOOK produce all different kinds of power adapter,cable and batteries for pos terminal,LCD monitors ,Laptop ,Pos printer,musical instrument and all kinds of electronic equipment
l OEM and ODM service are available l Every pieces of products 100% testing before sending out ,control the defective rate to the lowest l Fast delivery ,very good price
|
|
|
Inspection procedure : |
|

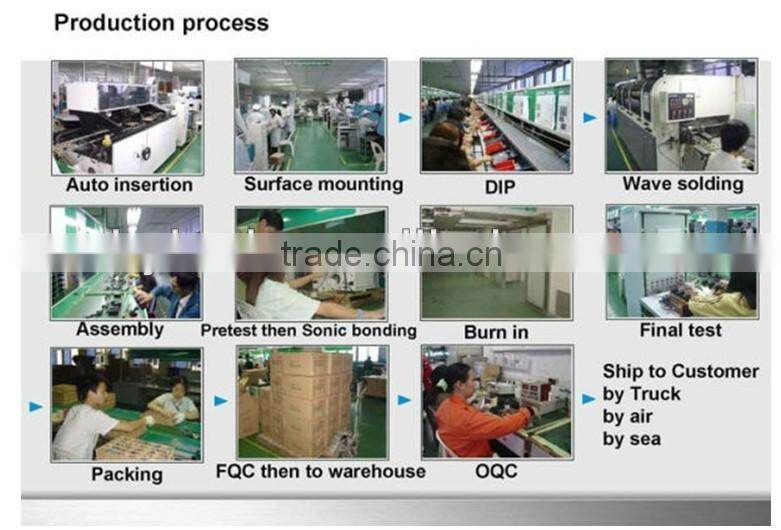

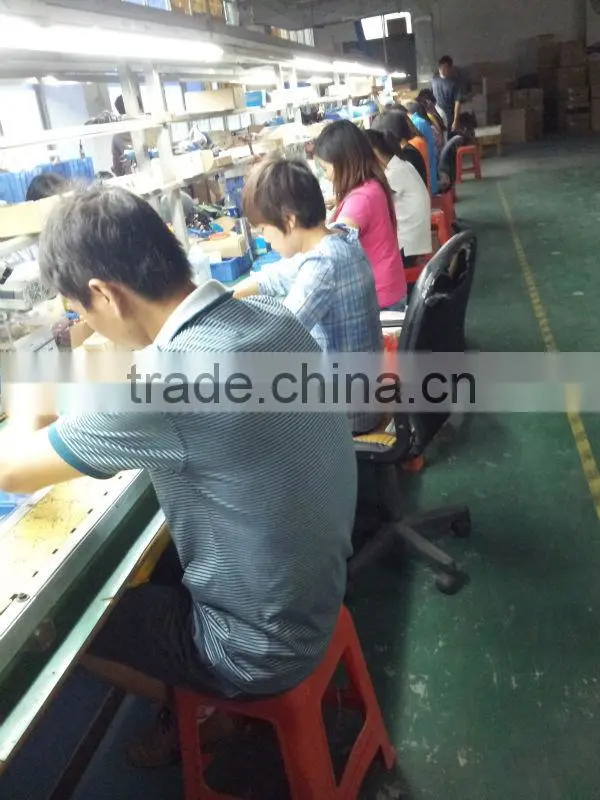

1.Test procedure: Semi-finished product test -- -Finished product -Load test --High pot test--Burning in test-Visual inspection before packing
2.Assure low failure rate: All of our power adapters delivered to you burning in test for 3 hours at 80% load ,to assure low failure rate .Buy with confidence !
|
|
Advantage: |
of POS (EPOS) market (Verifone, Ingenico, Hypercom, Lipman and others).
network of POS and maintain asset value minimizing unused equipment.
characteristics, specific connectors and certifications that are required in each country.
other peripheral devices as barcode readers. MIFARE reader etc.
in the market with the highest levels of technical quality .Each cable requires specific knowledge of pin out of each POS models of different brands.
|
Why Choose HYLOOK ? |
|
Quality Assurance:All the products will go through 5 checks during production
Warranty: One-year warranty, the broken power adapters will be replaced and the new lights will be reduce from next order
Production capacity: Monthly production more than 100,000 pcs products exported world-widely.
Competitive price: Factory direct sale, good price.
|
Pos terminal accessories we also produce : |
|
Contact us: |
|
If you want to get our catalogue or more details about our products,please feel free to contact with us . Skype:fysummy Trademanager :cn1001346229 Tel:086-0755-29062506 |
