PS-180 24V AC Power Adapter for Epson M235a Tm-T88ii
Features:
- compact Size
- Input is 100--240V, 50-60Hz (worldwide use)
- Model:M159A Ps-180
- Input Voltage: 100V-240VAC (50-60Hz)
- Output :24V 2A
- DC Plus Dimension:3 pin din
- Condition: New
- Warranty:1 Year
- Includes 24V 2A Power AC adapter for pos printer
- Please make sure the output ,pinout and the connector is same if yes it will fit for.
Input Characteristics:
- Input Voltage & Frequency
The range of input voltage is from 80Vac to 280Vac single phase.
Minimum/Nominal/Maximum/
Input Voltage/80Vac 100Vac~240Vac 280Vac
Input Frequency/47Hz 60/50Hz 63Hz
- Input AC Current/AC
0.5Amax. @ 100-240Vac input & Full load/
2.3.Inrush Current (cold start)
30Amax. @ 264Vac input
- Efficiency (Normal)
72.4% min. @ Nominal input & Full load/(100-240Vac)&
2.5. Energy Consumption
At rated voltage100-240V,,non comsumption is less than 0.5
Environmental:
- Operating Temperature: 0 --40 degree C
- Storage Temperature: -10 --70 degree C
- MTBF: 20,000 Hours (minimum) at full load
Output Specifications:
- Output Voltage: 24V
- Maximum Current: 2A 3A
- Connector: 3 pin power-mini din connector
Protection Requirements:
- Over Current Protection
Over Current Point Limited I>1.2A(100-240Vac)
The output shall hiccup when the over currents applied to the output rail, and shall be
self-recovery when the fault condition is removed
- Short Circuit Protection
The input power shall decrease when the output rail short, the 24V Power AC Adapter shall no
damage, and shall be self-recovery when the fault condition is removed
- Over Voltage Protection
The output voltage <19V when the output over voltage,.(the 24V Power AC Adapter shall damage)
Reliability Requirements:
- Burn-in
The 24V Power ac adapter shall be burn-in for 4 Hours under normal input and 80% rated load at
40°C± 5°C
- MTBF Qualification
The MTBF shall be at least 50,000hours at 25°C, Full load and nominal input condition
Note:
- The 24V power AC adapter for pos printer is designed for use with all kinds of pos thermal printers such as Epson ,NCR ,Star Micronics,Samsung bixlon mini printer or pos printers
Compatibility:
| The 24V Power Ac Adapter Compatible with Epson pos printer parts and models: |
|
Compatible Epson part no.:
Compatible Epson pos printer Models:
|
| Star Micronics pos printer models and parts |
|
Compatible Star Micronics part no.:
l PS60A-24B l PS60A-24A
Compatible Star micronics Model no.:
l TSP-600 l TSP613 l TSP643 l TSP651 l TSP654) l TSP-700 l TSP743 l TSP-700II l TSP-847. l TSP650 l TSP700II l TSP800 l TSP800II l TSP828L l TSP1000 l TUP900 l TUP500 l SP2000 l SP298 l SCP700 l HSP7000 l FVP10 |

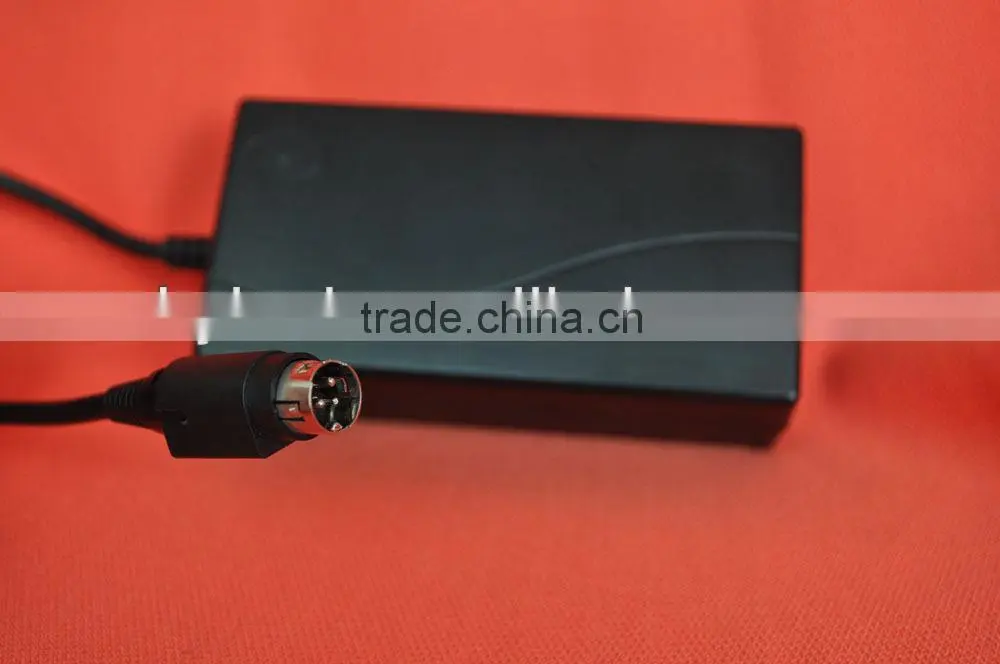

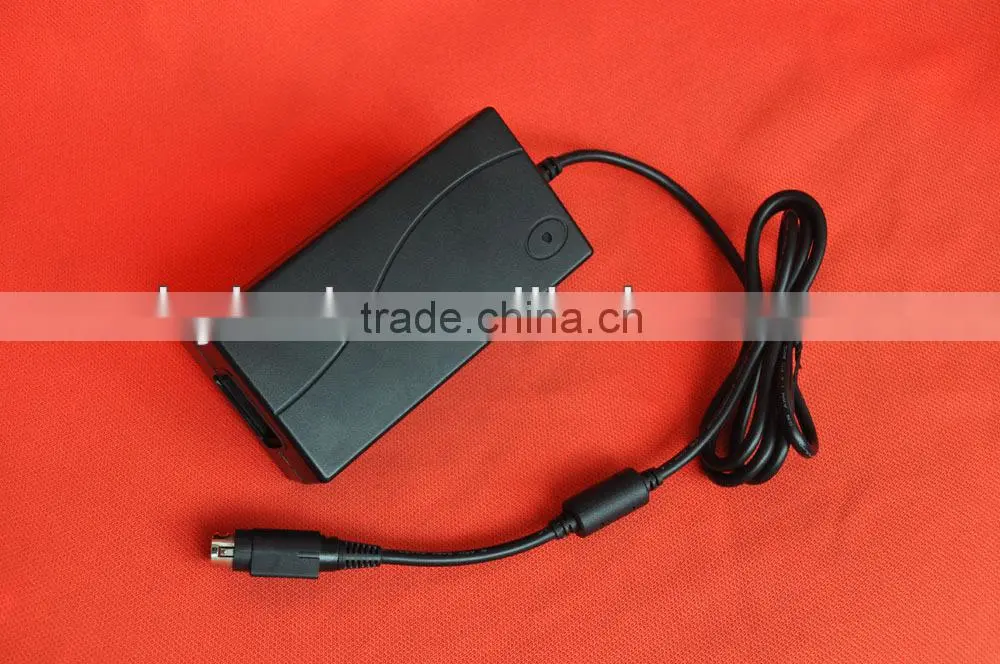

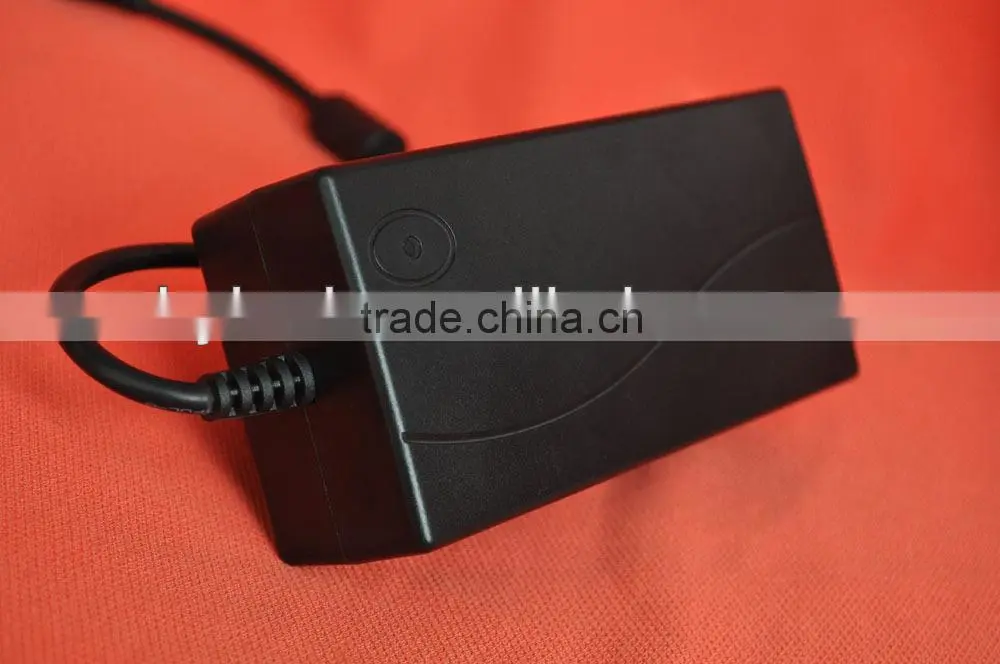

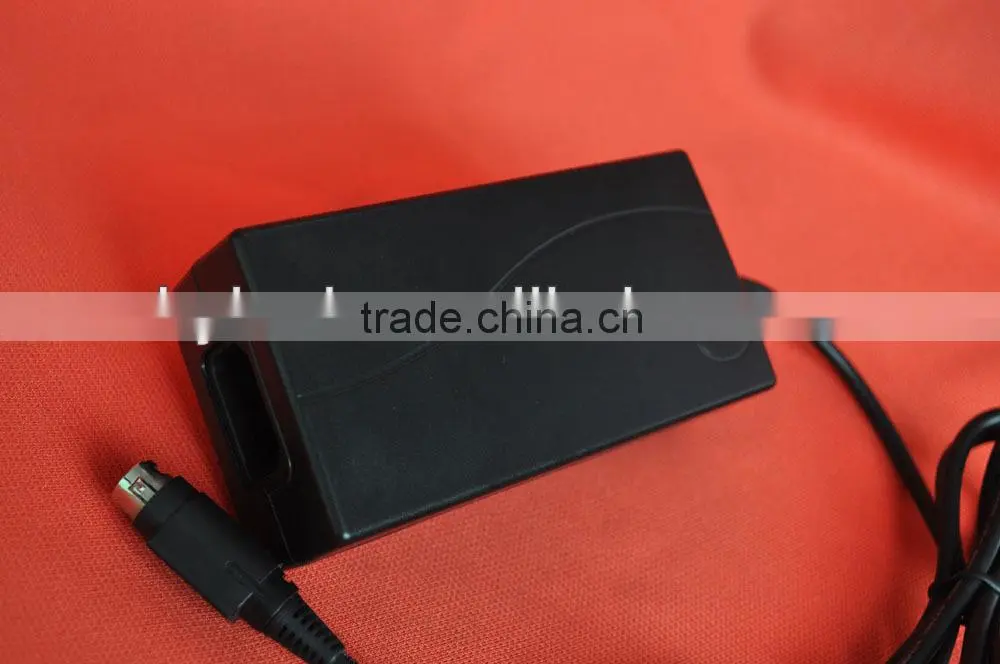

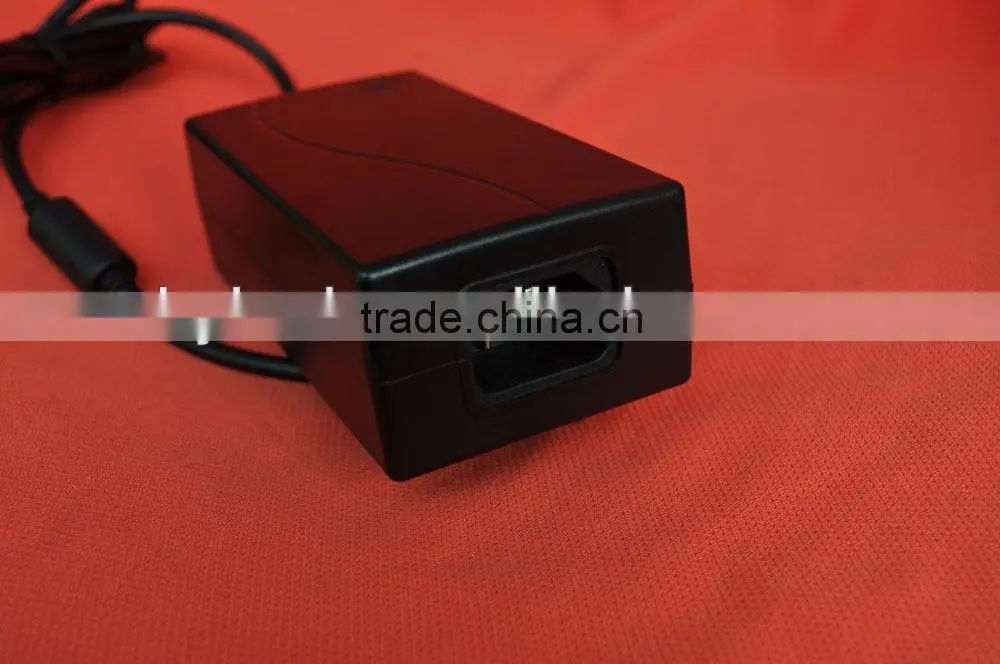

Photos of product:
Package Available :

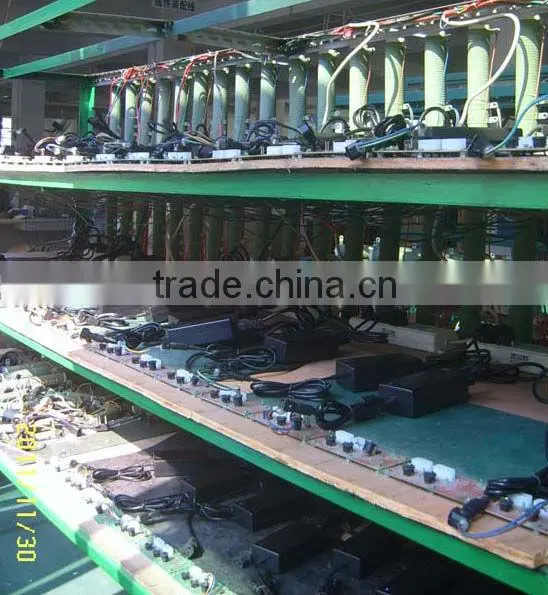

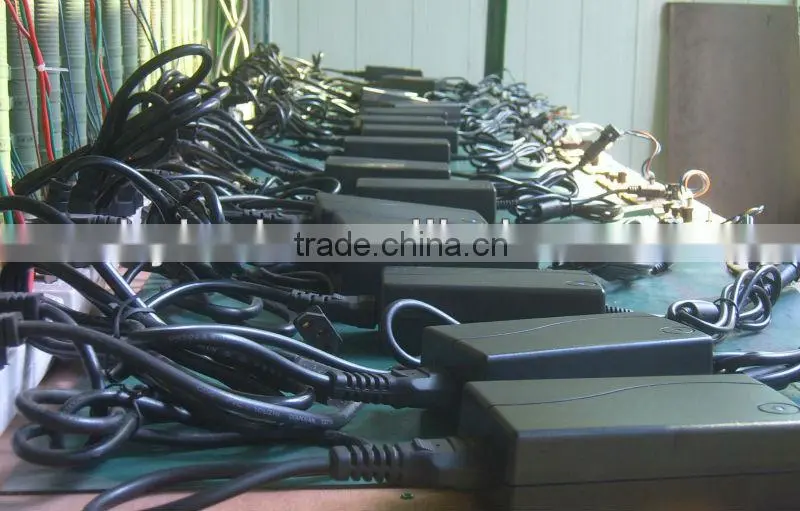

Test procedure:
100% burning in test before every single pieces of the power AC adapter go out of our factory ,to control the defective to the lowest ,order with confidence !
Photo of our factory:

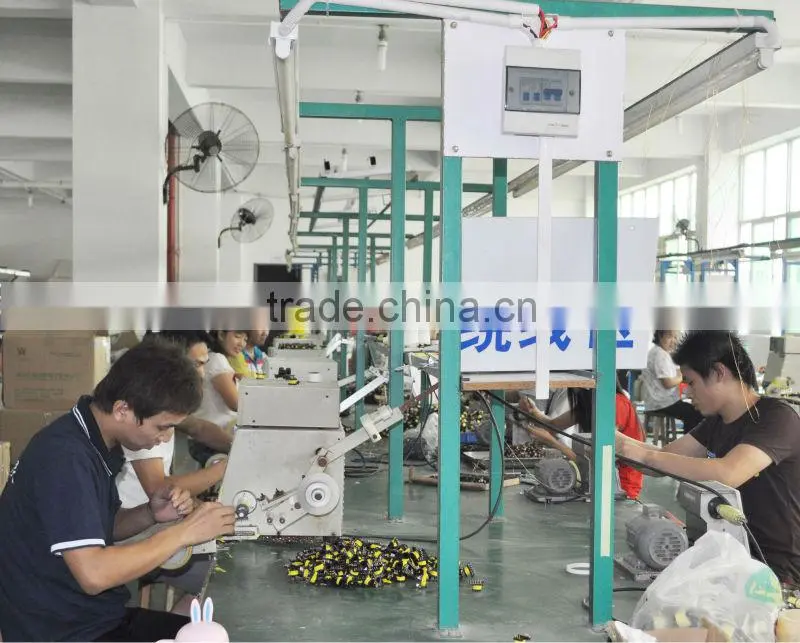

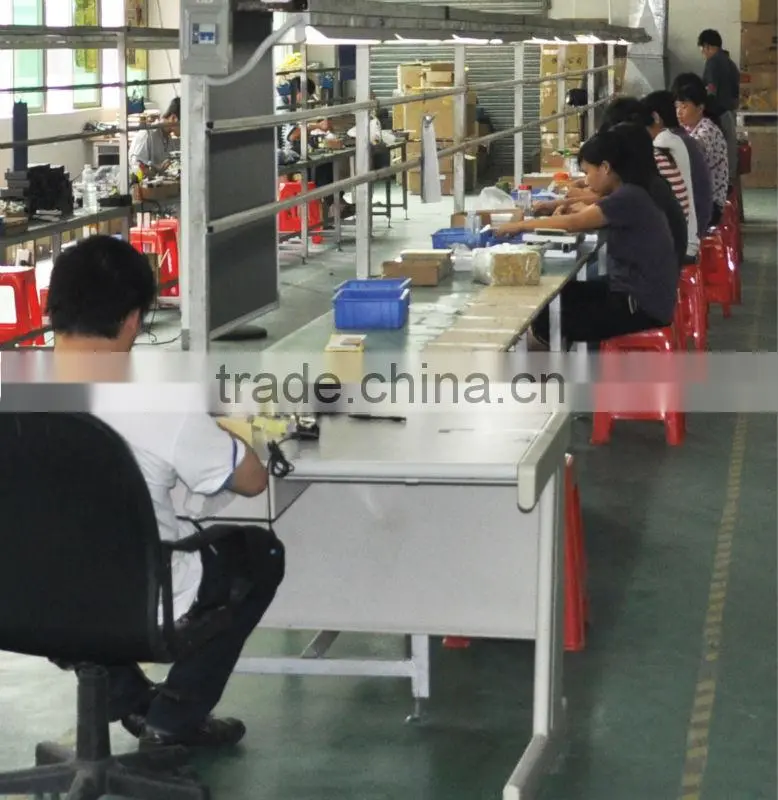

1.Assembly line
2.Packing production line
3.We produce transformers in our own factory,to control quality and delivery time better
photo of transformer production line:
Why choose Hylook ?
Quality Assurance:All the products will go through 5 checks during production
Warranty: One-year warranty, the broken power adapters will be replaced and the new lights will be
reduce from next order
Production capacity: Monthly production more than 100,000 pcs products exported world-widely.
Competitive price: Factory direct sale, good price.
Pos terminal accessories we also produce :
- Ingeco ICT220/250 Magic box
- Verifone Vx810 Vx820 to vx510 14 header cable
- Verifone CBL 268-004-01-C Verifone vx670/vx680 charger cable
- Verifone 08369-01-R Programming cable for verifone vx670/vx680
- Verifone 24016-01-R Li-ion Battery for Verifone vx670/Vx680/Vx520 GPRS
- Verifone Vx670 Vx680 power supply
- Verifone vx510 /vx520 power supply
- Ingenico EFT930 power supply
- Ingenico IWL220/IWL250 ac adapter
- Ingenico ICT220/ICT250 power adapter
- Hypercom M4230 power adapter/car charger
- Hypercom M42XX T42XX replacement Li-ion battery
- Other items coming soon or you could customize
- .................................................................
Contact us:
If you want to get our catalogue or more details about our products,please feel free to contact with us .
Skype:fysummy Trademanager :cn1001346229
Tel:086-0755-29062506
