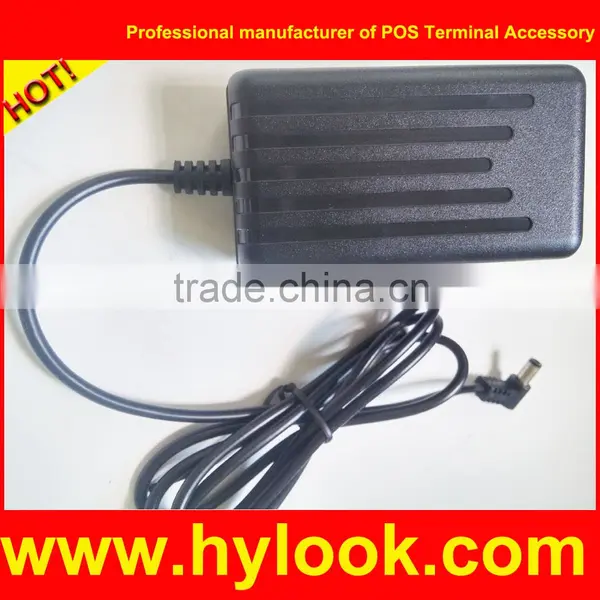

9V Power Supply for Ingenico I5100

9V Power Supply for Ingenico I5100 thumbnail-1
9V Power Supply for Ingenico I5100 photo-1
US$ 1 - 10 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hylook
Model Number:
HL-W09-020
Contact Supplier Request Quote Chat Now
Shenzhen Hylook Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Hylook
Model Number HL-W09-020
Output Power 1 - 50W
Output Type Single
Input Voltage 220V
Output Voltage 9V
Output Frequency 50hz
Output Current 2A

9V Power Supply for Ingenico I5100

Package include:

  •   1x  Ingenico 5100 power supply wallmount ac adapter

Electrical Characteristics:



  • AC input voltage ……100-240VAC
  • Output ………9V 2A
  • Input frequency ………47-63Hz
  • AC inrush current(max.) …….20A/230V
  • Line regulation (full load).......±0.5%
  • Peak- to -peak ripple …….<500MV
  • Working temperature………….0-35°C@100%,50°C@70% load
  • Setup rise hold up time………100ms,50ms,20ms@240VAC input
  • Strong made totally compatible part
  • Over voltage protection………115%-135% rated output voltage
  • Withstand voltage………I/P-O/P 3Kvac,1 minute
  • Over load protection ………115%-135%fold back current limiting, Auto-recovery
  • Input Condition ……… 100 to 240VAC 50/60 Hz 1A Max
  • Input Rated Voltage ……… 100 to 240VAC
  • Input Voltage Range ……… 90 to 264VAC
  • Input Rated Frequency ………50/60Hz
  • Input Frequency Range ……… 47Hz to 63Hz
  • Inrush Current ……… 60A Max
  • No Load Power Consumption ……… within 0.3W
  • Efficiency ……… 80% Min
  • Line Regulation……… ± 1%
  • Load Regulation ……… ± 5%
  • Over Shoot ………10% Max
  • Ripple And Noise……1% Max
  • Rising Time ……… 20ms Max At 115Vac
  • Output Hold up Time ……… 8ms Min At 230Vac
  • Protection ………  OCP OVP SCP OPP
  • Dielectric Withstand Voltage ……… 3.75KV 5mA 60s
  • Leakage Current ……… 0.25 mA At 230Vac

 9V Power Supply for Ingenico I51009V Power Supply for Ingenico I51009V Power Supply for Ingenico I51009V Power Supply for Ingenico I5100

Environment:



  • Operating Temperature: 0~40°C ,full load , normal operation
  • Storage Temperature: -20~80°C with package
  • Relative Humidity: 5%(0°C) ~90%(40°C) RH ,72 hours, full load,



Package included:

  •      1x AC100-240V to 9V 2A ac power adapter for Credit card terminal Ingenico 5100



Specification:

  • Output Type:9V 2A
  • Input: 100-240V AC 50/60Hz
  • Cable length: about 120CM
  • Out put adaptor :DC jack suit for ingenico 5100
  • Condition: Brand New 100%
  • We have the Adapter for US/EU/UK/Australia
  • 100% burn in test 4 hours,assure the quality:
  • Packing





Advantages:



1.       AC input power suitable for the world



2.       Soft-start current can reduce the AC input impact efficiency



3.       With short-circuit and overload protection



4.       Compact size ,light weight



5.       100%full-load burning test





About our company:



  • Our company ,shenzhen hylook Electronic Co.,LTD,a factory specializing in power adapters, OEM and ODM service is available
  • our ac dc adaptor are 100% burning in tested for 3 hours before delivery to control the defective to the lowest !

9V Power Supply for Ingenico I5100





Other pos terminal models for your reference :



  • Charger cable for verifone Vx670 Vx680
  • Data cable for verifone Vx670 Vx680
  • Verifone 08369-01-R  Programming cable for verifone vx670/vx680
  • Verifone CBL 268-004-01-C   Verifone vx670/vx680 charger cable
  • Li-ion Battery pack replace for Verifone Vx670 Vx680
  • Charger converter cable for Ingenico EFT930G
  • Power supply for Verifone Pos terminal Vx510 Vx520 Vx570
  • Power supply For ingenico ICT220 ICT250
  • Power Supply For Ingenico IWL 220 IWL 250
  • Car Charger for Hypercom M4230 M4220
  • External battery for Hypercom M4230 M4220







If you are interested in our items ,please contact us for full catalogue ! Hope we could be your business

partner and  supplier .Helping you solve

sourcing problems especially in the field of power adapters and pos terminal accessories  !
