9V Wallmount Power Adapter for Ingenico I5100

9V Wallmount Power Adapter for Ingenico I5100 thumbnail-1
9V Wallmount Power Adapter for Ingenico I5100 photo-1
US$ 1 - 10 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hylook
Model Number:
HL-W09-020
Contact Supplier Request Quote Chat Now
Shenzhen Hylook Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Hylook
Model Number HL-W09-020
Output Type DC
Connection Plug In

9V Wallmount Power Adapter  for Ingenico I5100



Package include:

  •   1x  Ingenico 5100 power supply wallmount ac adapter

Electrical Characteristics:



  • AC input voltage ……100-240VAC
  • Output ………9V 2A
  • Input frequency ………47-63Hz
  • AC inrush current(max.) …….20A/230V
  • Line regulation (full load).......±0.5%
  • Peak- to -peak ripple …….<500MV
  • Working temperature………….0-35°C@100%,50°C@70% load
  • Setup rise hold up time………100ms,50ms,20ms@240VAC input
  • Strong made totally compatible part
  • Over voltage protection………115%-135% rated output voltage
  • Withstand voltage………I/P-O/P 3Kvac,1 minute
  • Over load protection ………115%-135%fold back current limiting, Auto-recovery
  • Input Condition ……… 100 to 240VAC 50/60 Hz 1A Max
  • Input Rated Voltage ……… 100 to 240VAC
  • Input Voltage Range ……… 90 to 264VAC
  • Input Rated Frequency ………50/60Hz
  • Input Frequency Range ……… 47Hz to 63Hz
  • Inrush Current ……… 60A Max
  • No Load Power Consumption ……… within 0.3W
  • Efficiency ……… 80% Min
  • Line Regulation……… ± 1%
  • Load Regulation ……… ± 5%
  • Over Shoot ………10% Max
  • Ripple And Noise……1% Max
  • Rising Time ……… 20ms Max At 115Vac
  • Output Hold up Time ……… 8ms Min At 230Vac
  • Protection ………  OCP OVP SCP OPP
  • Dielectric Withstand Voltage ……… 3.75KV 5mA 60s
  • Leakage Current ……… 0.25 mA At 230Vac

 9V Wallmount Power Adapter for Ingenico I51009V Wallmount Power Adapter for Ingenico I51009V Wallmount Power Adapter for Ingenico I51009V Wallmount Power Adapter for Ingenico I5100

Environment:



  • Operating Temperature: 0~40°C ,full load , normal operation
  • Storage Temperature: -20~80°C with package
  • Relative Humidity: 5%(0°C) ~90%(40°C) RH ,72 hours, full load,



Package included:

  •      1x AC100-240V to 9V 2A ac power adapter for Credit card terminal Ingenico 5100



Specification:

  • Output Type:9V 2A
  • Input: 100-240V AC 50/60Hz
  • Cable length: about 120CM
  • Out put adaptor :DC jack suit for ingenico 5100
  • Condition: Brand New 100%
  • We have the Adapter for US/EU/UK/Australia

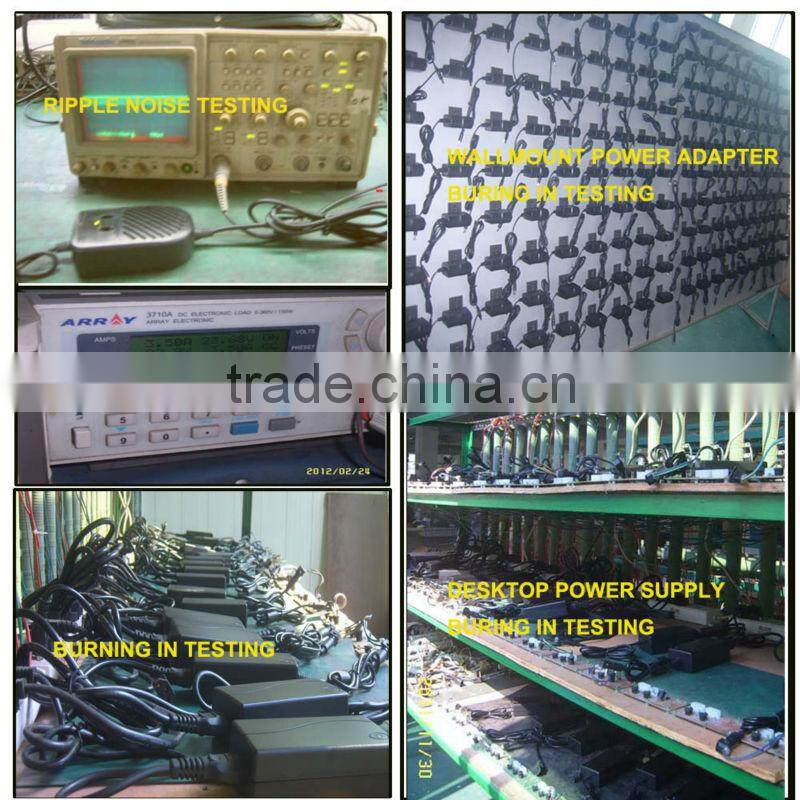

  • 100% burn in test 4 hours,assure the quality:
  • Packing





Advantages:



1.       AC input power suitable for the world



2.       Soft-start current can reduce the AC input impact efficiency



3.       With short-circuit and overload protection



4.       Compact size ,light weight



5.       100%full-load burning test





About our company:



  • Our company ,shenzhen hylook Electronic Co.,LTD,a factory specializing in power adapters, OEM and ODM service is available
  • our ac dc adaptor are 100% burning in tested for 3 hours before delivery to control the defective to the lowest !

9V Wallmount Power Adapter for Ingenico I5100





Other pos terminal models for your reference :



  • Charger cable for verifone Vx670 Vx680
  • Data cable for verifone Vx670 Vx680
  • Verifone 08369-01-R  Programming cable for verifone vx670/vx680
  • Verifone CBL 268-004-01-C   Verifone vx670/vx680 charger cable
  • Li-ion Battery pack replace for Verifone Vx670 Vx680
  • Charger converter cable for Ingenico EFT930G
  • Power supply for Verifone Pos terminal Vx510 Vx520 Vx570
  • Power supply For ingenico ICT220 ICT250
  • Power Supply For Ingenico IWL 220 IWL 250
  • Car Charger for Hypercom M4230 M4220
  • External battery for Hypercom M4230 M4220







If you are interested in our items ,please contact us for full catalogue ! Hope we could be your business

partner and  supplier .Helping you solve

sourcing problems especially in the field of power adapters and pos terminal accessories  !
