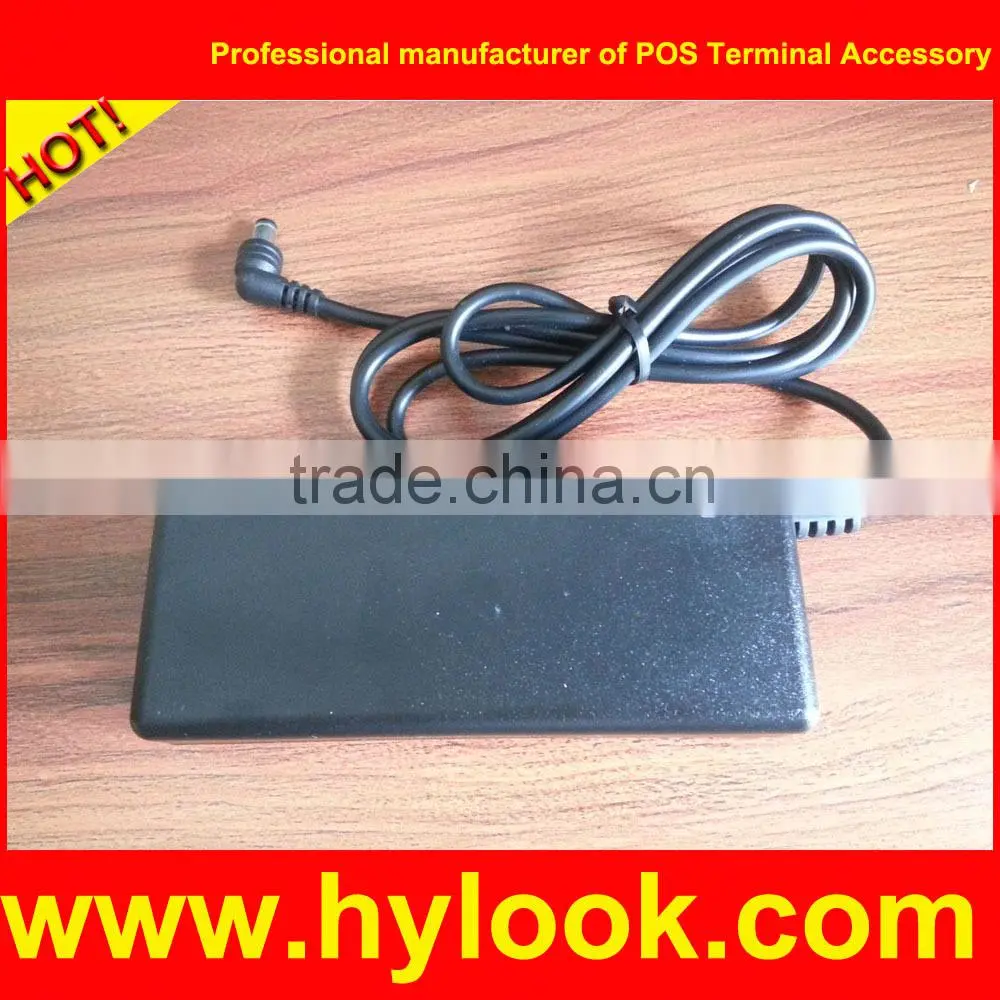

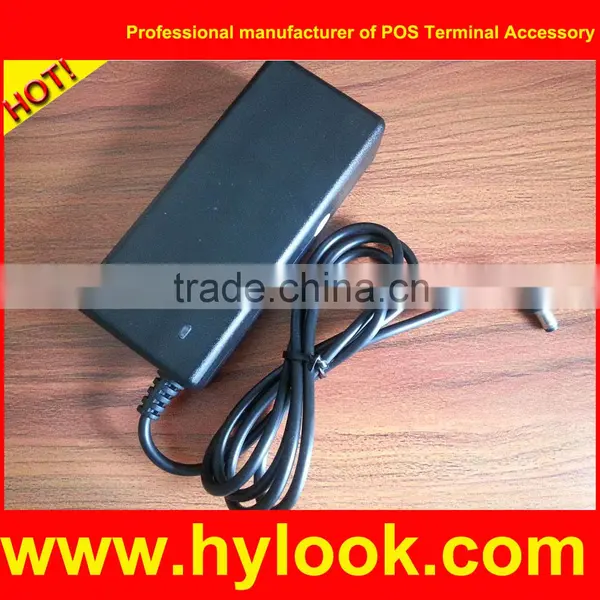

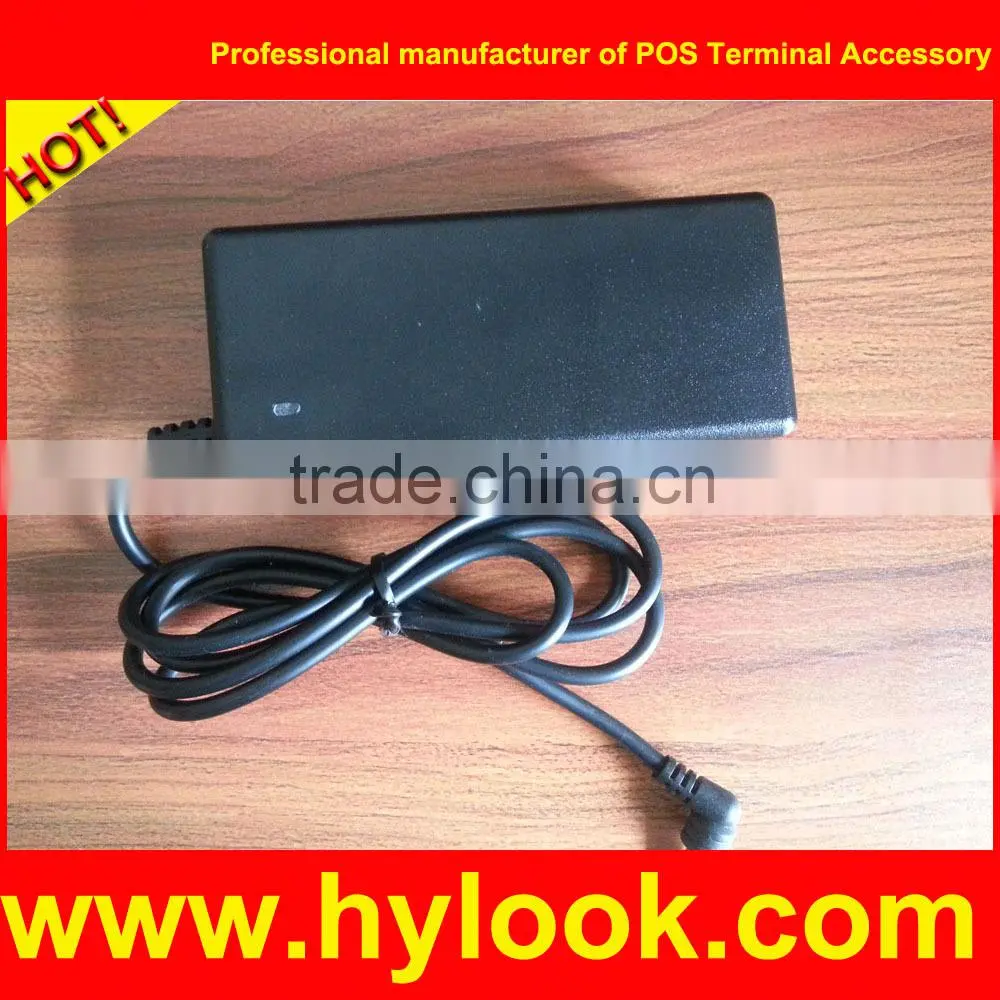

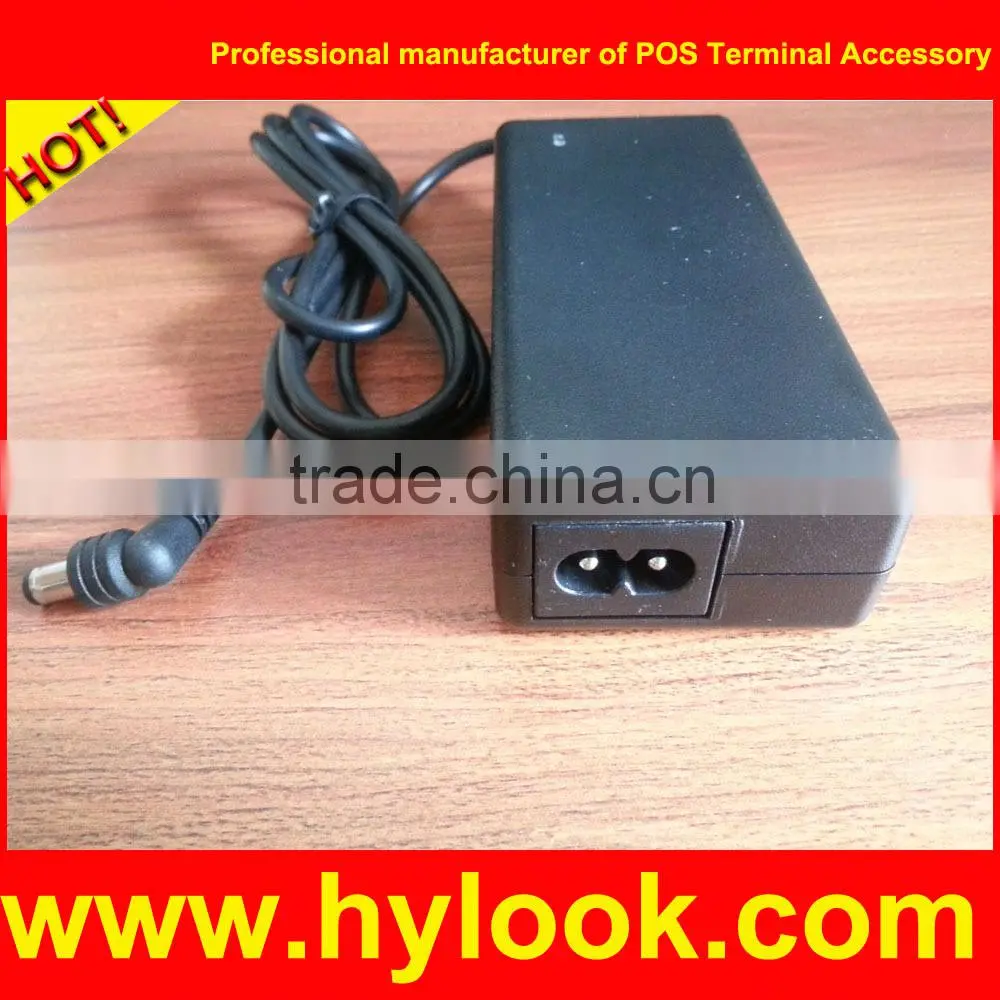

Ingenico ICT220 ICT250 Power Adapter For Ingenico 179901469
US$ 1 - 10
MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HYLOOK
Model Number:
HL-W08-020
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Ingenico EFT930G AC Adapter Power Supply UnitUS$ 1 - 10MOQ: 100 Units -
Ingenico IWL250 Power Adapter Supply ChargerUS$ 1 - 10MOQ: 100 Units
-
AC Power Adapter for Ingenico IWL220 IWL250US$ 1 - 10MOQ: 100 Units
-
Ingenico IWL220 Power SupplyUS$ 1 - 10MOQ: 100 Units
-
9 Pin Mini Din Cable for Magtek 22517580US$ 0.2 - 5MOQ: 500 Pieces
Place of Origin
Guangdong, China
Brand Name
HYLOOK
Model Number
HL-W08-020
Output Type
DC
Connection
Plug In
Ingenico ICT220 ICT250 Power Adapter For Ingenico 179901469
For Ingenico 179901469 POWER SUPPLY FOR IPP320,IPP350 ISS250,120V,AC/8V DC
Electrical Characteristics:
- AC input voltage ……100-240VAC
- Output ………8V 3.6A
- Input frequency ………47-63Hz
- AC inrush current(max.) …….20A/230V
- Line regulation (full load).......±0.5%
- Peak- to -peak ripple …….<500MV
- Working temperature………….0-35°C@100%,50°C@70% load
- Setup rise hold up time………100ms,50ms,20ms@240VAC input
- Strong made totally compatible part
- Over voltage protection………115%-135% rated output voltage
- Withstand voltage………I/P-O/P 3Kvac,1 minute
- Over load protection ………115%-135%fold back current limiting, Auto-recovery
- Input Condition ……… 100 to 240VAC 50/60 Hz 1A Max
- Input Rated Voltage ……… 100 to 240VAC
- Input Voltage Range ……… 90 to 264VAC
- Input Rated Frequency ………50/60Hz
- Input Frequency Range ……… 47Hz to 63Hz
- Inrush Current ……… 60A Max
- No Load Power Consumption ……… within 0.3W
- Efficiency ……… 80% Min
- Line Regulation……… ± 1%
- Load Regulation ……… ± 5%
- Over Shoot ………10% Max
- Ripple And Noise……1% Max
- Rising Time ……… 20ms Max At 115Vac
- Output Hold up Time ……… 8ms Min At 230Vac
- Protection ……… OCP OVP SCP OPP
- Dielectric Withstand Voltage ……… 3.75KV 5mA 60s
- Leakage Current ……… 0.25 mA At 230Vac
Environment:
- Operating Temperature: 0~40°C ,full load , normal operation
- Storage Temperature: -20~80°C with package
- Relative Humidity: 5%(0°C) ~90%(40°C) RH ,72 hours, full load,
Description:
| General Information | ||
| | ||
| Manufacturer Website Address | ||
| Compatible Brand Name | Ingenico | |
| Product Model | 179901469 | |
| Product Type | AC Adapter | |
| Technical Information | ||
| | ||
| Device Supported | POS System | |
| Power Description | ||
| | ||
| Input Voltage | 110 V AC | |
| Frequency | 60 Hz | |
| Output Voltage | 8 V DC | |
| Maximum Output Current | 3.6 A | |
| Miscellaneous | ||
| | ||
| Compatibility | Ingenico ICT220 POS System |
|
Photos:
Specification:
- Output Type:8V 2A
- Input: 100-240V AC 50/60Hz
- Cable length: about 120CM
- Out put adaptor : 5.5mm or according to your requirement
- Condition: Brand New 100%
- We have the Adapter for US/EU/UK/Australia
- 100% burn in test 4 hours,assure the quality:
- Packing
Advantages:
1. AC input power suitable for the world
2. Soft-start current can reduce the AC input impact efficiency
3. With short-circuit and overload protection
4. Compact size ,light weight
5. 100%full-load burning test
About our company:

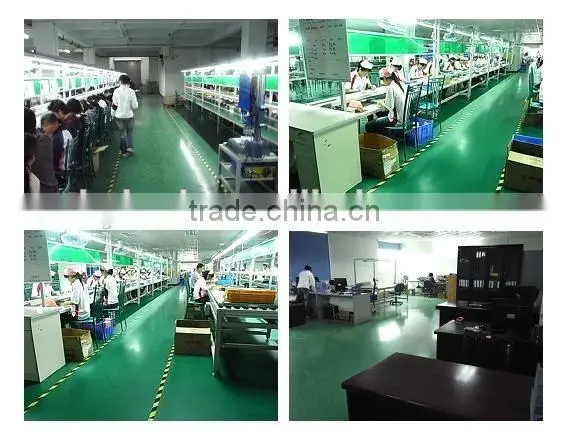

- Our company ,shenzhen hylook Electronic Co.,LTD,a factory specializing in power adapters, OEM and ODM service is available
- our ac dc adaptor are 100% burning in tested for 3 hours before delivery to control the defective to the lowest !
Why Choose HYLOOK ? |
|
Quality Assurance:All the products will go through 5 checks during production
Warranty: One-year warranty, the broken power adapters will be replaced and the new lights will be reduce from next order
Production capacity: Monthly production more than 100,000 pcs products exported world-widely.
Competitive price: Factory direct sale, good price.
|

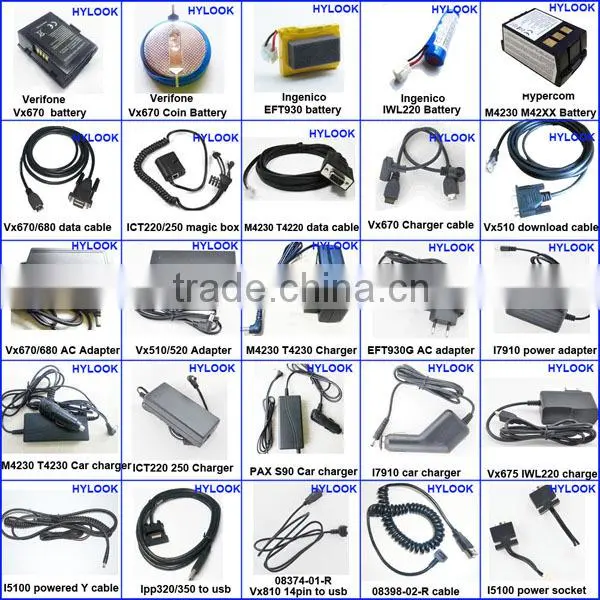

Pos terminal accessories we also produce : |
|
Contact us: |
|
If you want to get our catalogue or more details about our products,please feel free to contact with us . Skype:fysummy Trademanager :cn1001346229 Tel:086-0755-29062506
|
