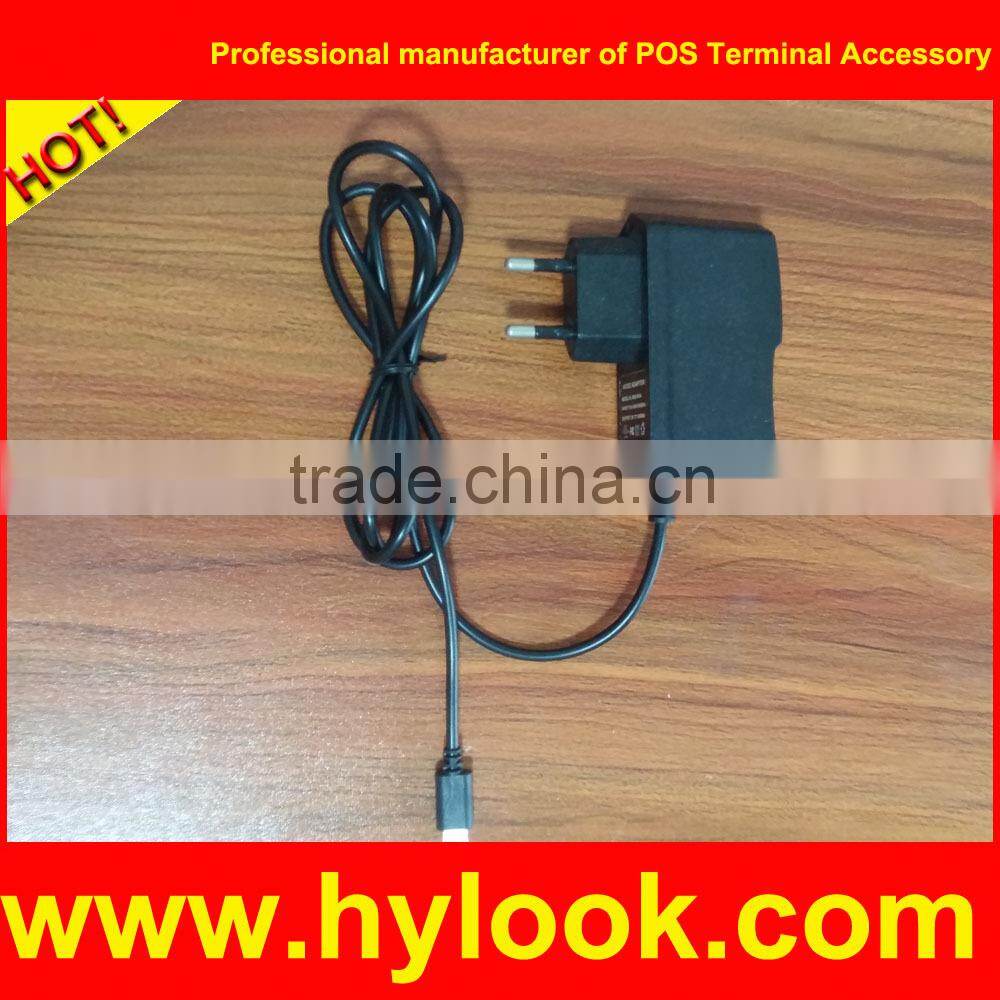

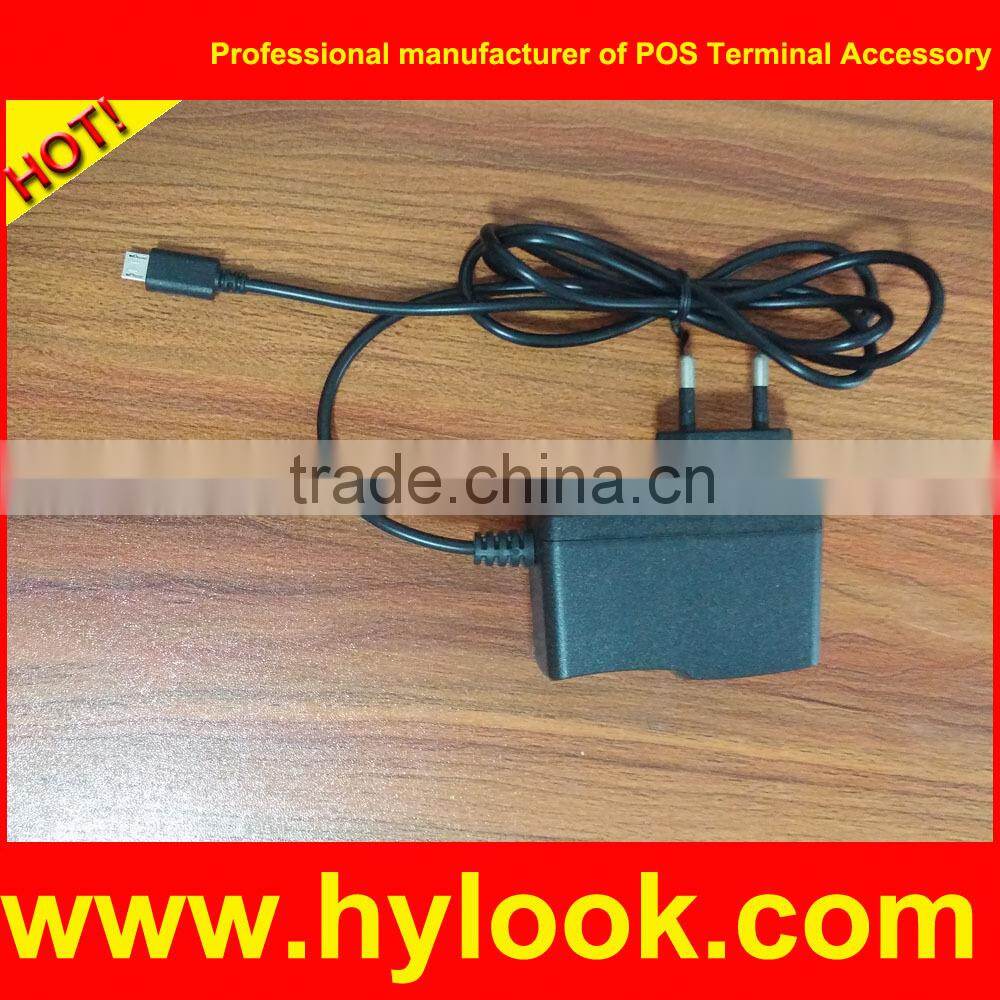

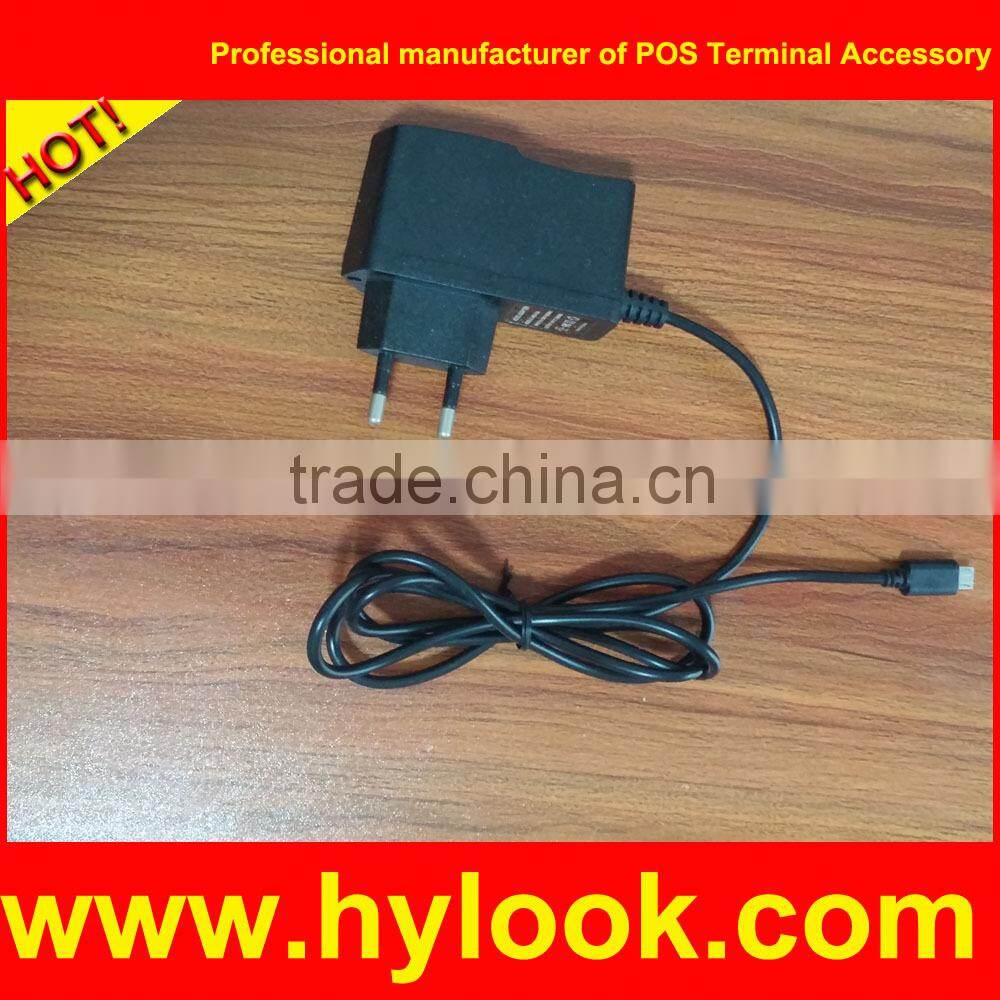

AC Power Adapter for Ingenico IWL220 IWL250

AC Power Adapter for Ingenico IWL220 IWL250 thumbnail-1
AC Power Adapter for Ingenico IWL220 IWL250 photo-1
US$ 1 - 10 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hylook
Model Number:
HL-W05-010
Contact Supplier Request Quote Chat Now
Shenzhen Hylook Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Hylook
Model Number HL-W05-010
Output Type DC
Connection Plug In

-----     AC power adapter for ingenico IWL220 IWL250    ------





1.Application:

  •  For pos terminal machine Ingenico IWL 220   IWL250 IWL200

2.Characteristics:



  • AC input voltage ……100-240VAC
  • Output ………5V 1A
  • Input frequency ………47-63Hz
  • AC inrush current(max.) …….20A/230V
  • Line regulation (full load).......±0.5%
  • Peak- to -peak ripple …….<500MV
  • Working temperature………….0-35°C@100%,50°C@70% load
  • Setup rise hold up time………100ms,50ms,20ms@240VAC input
  • Strong made totally compatible part
  • Withstand voltage………I/P-O/P 3Kvac,1 minute
  • MeanTime Between Failures ……… 100,000 hours at 25°C full load
  • Efficiency ………   85% typical
  • DC tips ……… 5.5*2.5mm or 5.5x2.1mm or you customize
  • AC Plug  ……… us,uk,au,Eu plug for the 5V 1A ac dc  power adapter are available

3.Specification:



Model

HL-W05-010

DC output voltage

5V

Output voltage error

±1

Rated output current

1A

Output current rage

0-1A

Wave and noise

240mVp-p

Inlet stability

±0.5%

Load stability

±0.5%

DC output power

12W

Efficiency

83%

Adjustable range for DC voltage

4.4V-5.6V

AC input voltage range

  85~132VAC/180-264VAC selected by switch, 47-63Hz254-370VDC

Input current

  6.5A/115V 4A/230V

AC Inrush current

  25A/115V 50A/230V

Leakage current

  <3.5mA/240VAC

Overload protection

  105%~150% Tpye:pulsing hiccup shutdown Reset: auto recovery

Over-voltage protection

  +-5%

High-temperature protection

  ERH1>=70°C Fan on,<=65°CFan off,>=80°C,Cut off output(24~48V)

Temperature coefficient

  ±0.03%/(0~50%)

Setup rise hold up time

  200ms,100ms,20ms

Vibration

 10~500Hz,2G 10min,/1cycle,Period for 60min,each axes

Withstand voltage

  Input and output internal1.5KVAC,Input and enclosure1.5KVAC,Output and enclosure0.5KVAC

Isolation resistance

  Input and output internal: Input and enclosure, Output and enclosure500VDC/100MΩ

Working temperature and humidity

  -10~+60Refer to output derating curve,20%~90%RH

Store temperature and humidity

  -20~+85,10%~95%RH





 4.Advantage:



  • 1:high reliability,long life
  • 2:universal input voltage  can use all over the world
  • 3:electrical specification:short-circuits,over-current,over-voltage, over-temperature protection
  • 4:price:specific discussion
  • 5:material :can be customized as per customer requirement any specifications for your material products
  • 6:suitable proaducts:Pos terminal machine  ,Credit card terminal

5.Protection:

  •  * Short-circuit protection
  •  * low energy consumption
  •  * Power Save
  •  * Overload Protection
  •  * Over Temperature Protection
  •  * Over voltage protection



6. Environmental Characteristics :





Operating Temperature

55 °C at Full Load and 70°C at 60% load.

Maximum Temperature Rise

50°C.

Cooling

By free air convection.

Relative Humidity

95% NC.





7. Different AC Plug Standard available for the pos terminal Power adapter



AC power adapter for ingenico IWL220 IWL250AC power adapter for ingenico IWL220 IWL250AC power adapter for ingenico IWL220 IWL250



8.Strict test procedure for every single piece of  power adapter :

  • Burning in test on 80% load for full 3 hours
  • Control the defective power adapter to the lowest

AC power adapter for ingenico IWL220 IWL250

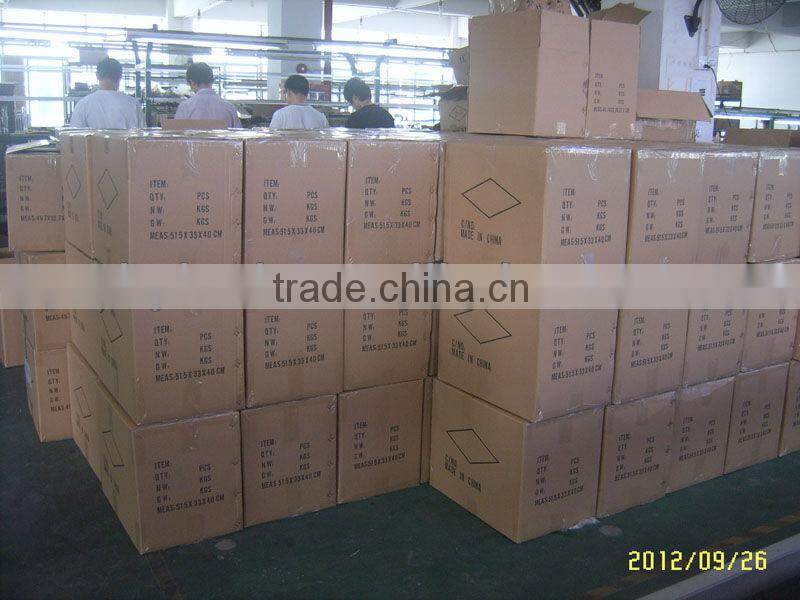

9.Different Packages are available for power adapter



 AC power adapter for ingenico IWL220 IWL250
