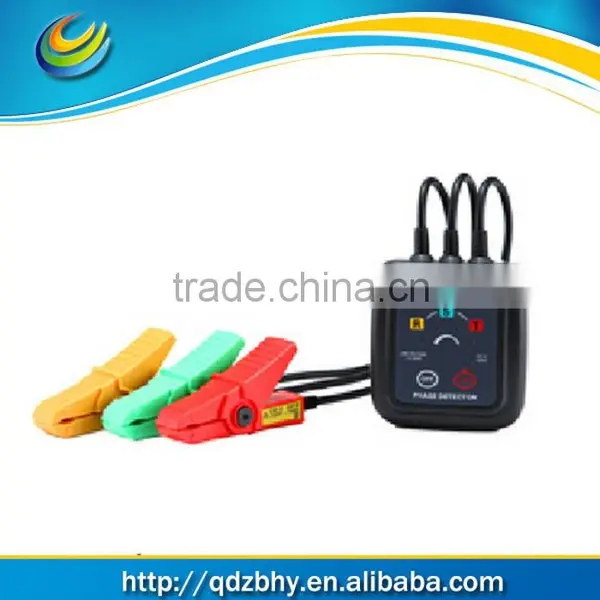

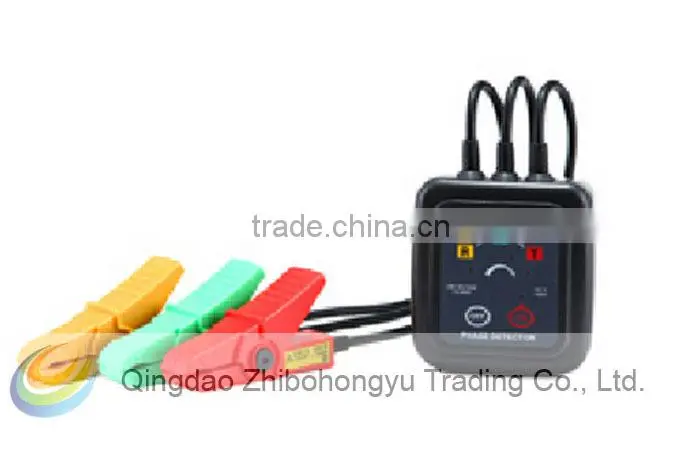

ETCR1000C Non Contact Phase Sequence Detector
USD $131.84 - $131.84
/ Set
1 Set(Min.Order)
- 0 per Month
- QINGDAO
- T/T Credit Card PayPal
You May Like
-
ETCR1000D 3 Phase Large caliber Non-contact Phase Sequence Detection Phase Detector Meter
-
ETCR2000A+-Clamp Earth Resistance Tester Resistance: 1-199
-
ETCR2000+ Clamp Ground Earth Resistance Tester Meter
-
ETCR2000B+ Clamp resistance tester, grounding resistance measuring instrument ETCR-2000B+
-
ETCR2000C+ Clamp Earth Resistance Tester
-
ETCR2100A+ Clamp Earth Resistance Tester
Product Details
| Place of Origin | China | Brand Name | ETCR | |
| Model Number | ETCR1000C |
Product Description
Product Description
1. Introduction
Safe and Time Saving | Traditional phase sequence measurement methods must poke the three-phase wire terminal, and connect the three bare alligator clips or test pins of phase sequence meters to the three bare firing lines, while ETCR1000C uses clamp non-contact measurement, without taking off the wire and no need to contact high-voltage bare fire-wire, the test can be made by directly clamping the three-phase insulating sheath by three super-sensitive high-insulated clamps. Conducting measurement on sheathed cable significantly improves the safety of field testing, effectively protect the operator’s personal safety and increase productivity! |
Convenient Operation | Instrument base plate is provided with magnet, instrument can adsorbed on the metal shell when testing, the operation more convenient. |
Multi-Purpose | In addition to phase sequence detection, it also has the functions of live wire examination, simple power detection, fire-wire identification, phase deficiency determination, break location detection, DC line break and line maintenance, equivalent to 3 induction electric pens. |
Dynamic Display | LED dynamic display, intuitive and clear |
Sensitive and reliable | More sensitive ETCR1000C clamp, can even sense the AC voltage signal as low as a few Volts, with a wider range of live electricity. |
Beautiful and scientific | The three clamps of ETCR1000C are in three colors, Red, Yellow and Green; It is more in line with the distinction of three-phase line, and more scientific and artistic overall appearance. |
Ultra-low Power Consumption | ETCR1000C has a better power-saving performance with the maximum rated power of 100mVA. |
2.Technical Specifications
Functions | Phase detection (normal phase, reverse phase and phase deficiency), Live wire examination, Simple Power detection, Breakpoint location and Line maintenance. |
Power Supply | DC3V AA Mn batteries (R6P) ×2 PCS, Continuously working for 200 hours |
AC Voltage Range(V) | AC0~600V, 40~70Hz (Sine Wave Continuous Input) |
Clamp Wire Size | Diameter ø1.6-ø16mm |
LED Display | Positive Phase Sequence The four phase-sequence lamps blink in order (clockwise). Negative Phase Sequence The four phase-sequence lamps blink in order (counterclockwise). Line-voltage Indication L1 L2 L3 lamp light up. Default Phase L1/L2/L3 lamp is off. Open Circuit L1/L2/L3 lamp is off. |
Power On Indication | Power on indication light turns on |
Auto Power off | After 5 minutes, the meter automatically cut off power supply. |
Meter Dimension | Width, height, thickness 70mm*75mm*30mm |
Clamp Lead Length | 0.5m |
Meter Weight | 180g (with battery) |
Working Temperature and Humidity | -10C~55C; below 80%rh |
Storage Temperature and Humidity | -20C~60C; below 90%rh |
Maximum Measured Voltage | AC600V |
Dielectric Strength | 5.4kVrms |
Maximum rated Power | 100mVA |
Safety Provisions | EN61010-1: 2001, EN61010-031: 2002, Pollution level 2, CAT III(600V), Transient over-voltage 6000V |
Accessories | Meter: 1 Piece; Carrying case; 1 Piece. |
