 ETCR1000B Phase Rotation Indicator

The latest version ETCR1000B Phase Rotation Indicator



A . Brief introduction
Safe and time saving
The traditional method of measuring the phase sequence phase wire terminals must be brushed aside , the phase sequence tables of three bare alligator clips or test pin is connected to a bare three FireWire , while ETCR1000B using pincer non- contact measurement, do not dial open wires, no contact with high voltage bare FireWire directly to the three super- insulated jaws were clamped inductive phase high FireWire insulation can be detected from the sheath line inspection , greatly improving the safety of field tests , the effective protection the operator's personal safety , increase productivity !
Variety of uses
In addition to the detection of phase sequence , as well as live -ray examination , simple seized power , FireWire identification , phase judgments, break location lookup can detect DC line breakpoint , line maintenance and other functions , the equivalent of three induction test pencil
Dynamic Display
LED dynamic display , very intuitive !
Sensitive and reliable
The clamp ETCR1000B more sensitive , even to as low as several V induced AC voltage signal , a wider range of active power .
Beautiful science
ETCR1000B the three clamp uses three colors red, yellow, blue shell , one more in line with the three-phase line of distinction between two beautiful overall appearance is more scientific .
Ultra Low Power
ETCR1000B more power, maximum rated power is only 100mVA
 Two . Technical Specifications
Function
Inspection phase ( normal phase , reverse phase , phase ) , live -ray examination , simple seized power , the breakpoint location, line maintenance
Power source
DC3V 2 AA manganese alloy batteries (R6P), time of about 200 hours of continuous use
Live electric range
AC0 ~ 600V, 40 ~ 70Hz ( sine wave continuous input )
Can clamp wire size
OD ø10 ~ ø40mm
LED display
[ Positively ] 4 phase detection lamp clockwise lights , intermittent short beep
[ ] 4 reverse phase counterclockwise rotation phase detection lights lit , continuous beep
[ Live Xinhua voltage setting range RS, ST lights
[ Phase ] R-S, S-T does not light
[ Break ] R-S, S-T does not light
Power indication
When turned on, power-on indicator light
Automatic shutdown
Boot approximately 5 and a half minutes later , the meter automatically cut off power supply
Meter size
Width height thickness 70mm × 75mm × 30mm
Clamp wire length
0.5m
Instrument Weight
Approximately 180g (with battery )
Working temperature and humidity
-10 C~ 55 C; 80% rh the following
Storage temperature and humidity
-20 C ~ 60 C; 90% rh the following
Measuring the maximum voltage
AC600V
Dielectric Strength
5.4kVrms
Maximum rated power
100mVA
Safety Rules
EN61010-1: 2001, EN61010-031: 2002, pollution degree 2, CATIII (600V), transient over-voltage 6000V
Accessories

Instrument : 1 ; Carrying case : 1



Packaging & Shipping

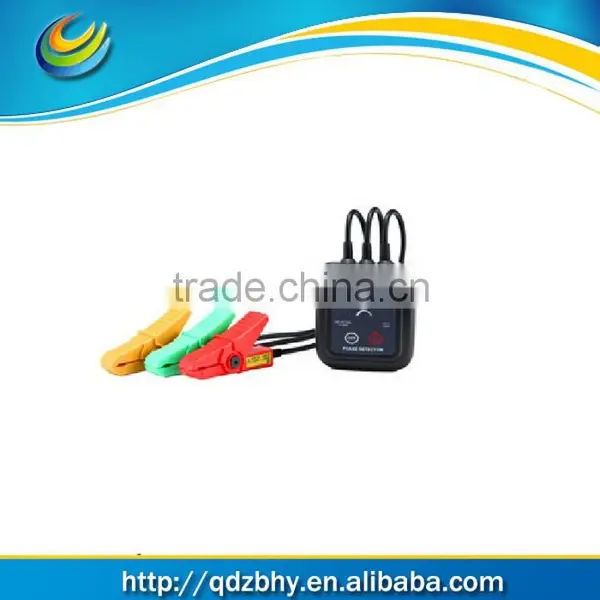

 ETCR1000B Phase Rotation Indicator
