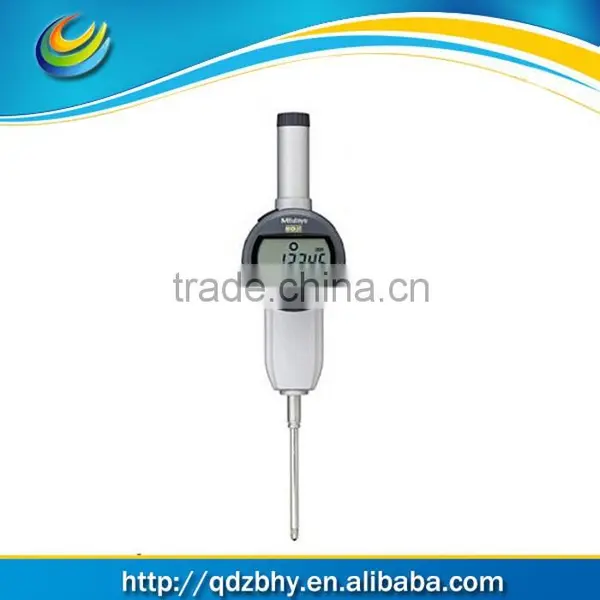

Mitutoyo 543-490B Absolute LCD Digimatic Indicator ID-C, Standard Type
US$ 445 - 498
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Mitutoyo
Model Number:
543-490B
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mitutoyo 2109S-70 Dial Indicator, M2.5X0.45 Thread, 8mm Stem Dia., Lug Back, White Dial, 0-100-0 Reading, 57mm Dial DiaUS$ 100 - 155MOQ: 1 Set -
Mitutoyo 513-404E Dial Quick-Set Test Indicators 0-40mm X 0.01mmUS$ 93 - 143MOQ: 1 Set
-
Mitutoyo 122-101 Blade Outside Micrometer, Ratchet Stop, 0-25mm Range, 0.01mmUS$ 260 - 310MOQ: 1 Set
-
Mitutoyo 122-111 Blade Outside Micrometer, Ratchet Stop, 0-25mm Range, 0.01mmUS$ 270 - 332MOQ: 1 Set
-
Mitutoyo 103-141-10 Outside Micrometer 100-125mm/0.01mmUS$ 145 - 199MOQ: 1 Set
Place of Origin
China
Brand Name
Mitutoyo
Model Number
543-490B
Product Description
M2.5X0.45 Thread,
8mm Stem Dia.,
Flat Back,
0-50.8mm Range,
0.001mm Graduation,
+/-0.006mm Accuracy
Product Features
As compact as standard series 2 dial indicators; Large, easy-to-read led, stem diameter 8mm, M2.5 x 0.45 Thread
Go/+/-NG Judgment can be performed by setting upper and lower tolerance limits; the judgment result (go/+/-ng) can be displayed in full-size characters
The positive/negative count resulting from the spindle's up/down movement can be toggled. alarm for low voltage, counting value composition error, over-flow error, tolerance limit setting error, internal calculations using the simple formula of [F(x) = Ax)] are available
Internal calculations using the simple formula of [f(x) = ax)] are available. employing the absolute linear encoder, the id-c always displays the spindle "absolute position" from the origin at power-on. also unlimited response speed eliminates over-speed errors
The ID-C Indicator face can be rotated 330 degree to an appropriate angle for easy reading. with spc data output
Product Description
Display: LCD, length standard: absolute electrostatic capacitance type linear encoder, max. Response speed: unlimited, measuring force: refer to the list of specifications, battery: sr44 (1 pc.), 938882, battery life: approx. 5,000 Hours under normal use, dust/water protection level: ip42 or ip53 (dust-proof type) origin-set/preset, zeroset, go/+/-ng judgment, counting direction switching, power on/off, data output, inch/mm conversion (on inch/metric
Display: LCD, length standard: absolute electrostatic capacitance type linear encoder, max. Response speed: unlimited, measuring force: refer to the list of specifications, battery: sr44 (1 pc.), 938882, battery life: approx. 5,000 Hours under normal use, dust/water protection level: ip42 or ip53 (dust-proof type) origin-set/preset, zeroset, go/+/-ng judgment, counting direction switching, power on/off, data output, inch/mm conversion (on inch/metric
