Mitutoyo 422-260 LCD Blade Micrometer, Ratchet Stop, 0-25mm Range, 0.001mm

Mitutoyo 422-260 LCD Blade Micrometer, Ratchet Stop, 0-25mm Range, 0.001mm thumbnail-1
Mitutoyo 422-260 LCD Blade Micrometer, Ratchet Stop, 0-25mm Range, 0.001mm photo-1
US$ 520 - 590 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Mitutoyo
Model Number:
422-260
Contact Supplier Request Quote Chat Now
Qingdao Zhibohongyu Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name Mitutoyo
Model Number 422-260



Product Description

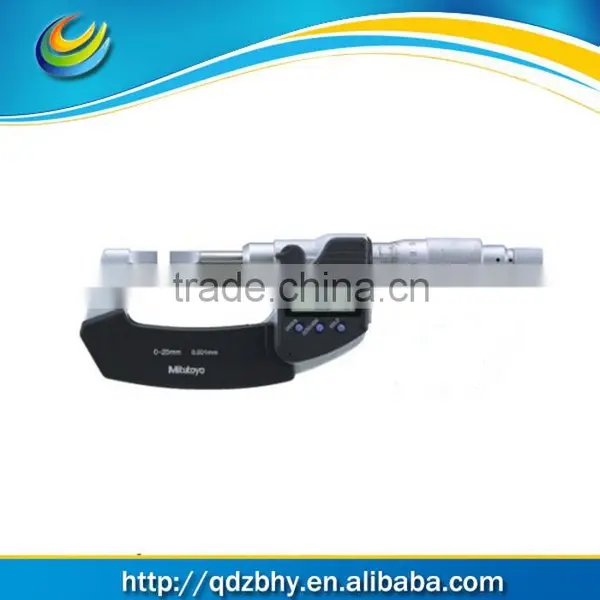

Mitutoyo 422-260 LCD Blade Micrometer, Ratchet Stop, 0-25mm Range, 0.001mm

Mitutoyo Blade Micrometer 422-260

Features:

  • The anvil and the spindle have a blade for measuring the groove diameter of shafts, keyways, and other hard-to-reach areas.
  • With Ratchet Stop for constant force.
  • Speedy spindle feed of 10mm / .4"/rev. (Quickmike type).
  • With a standard bar except 0 -25mm and 0 - 1" model.
  • Supplied in fitted plastic case.

Technical Data:

  • Accuracy: Refer to the list of specifications.
  • Resolution*: 0.001mm or .00005"/0.001mm
  • Graduation**: 0.01mm or .0001"
  • Parallelism: 3ìm / .00012" for models up to 75mm / 3"
  • (3+R/100)ìm for models over 75mm,
  • R=max. range (mm) .00016" for 4" models
  • Display*: LCD
  • Battery*: SR44 (1 pc.), 938882
  • Battery life*: Approx. 1.2 years under normal use
  • *Digital models **Analog models

Function of Digital Model:

  • Origin-set, Zero-setting, Data hold, Data output, inch/mm
  • conversion (inch/mm models)
  • Alarm: Low voltage, Counting value composition error
