Specifications
ingenico iwl220 power supply1..Input:universal 110-240V
2.output:5v 1a
3.Efficiency>80%
tection: ocp ovp scp
Ingenico iwl220 power supply
1.Features:
- Input:AC 110-240V 50/60HZ
- Output:5v 1a
- US,EU, AU,UK plug
- DC tips: you customize
- Output DC wire:1.2M
- Ripple noise:200mv
- Line regulation:+-5%
- load regulation:+-5%
2.Technical specification:
|
Input voltage Rated Voltage: 100~240Vac |
|
Variation Range: 80V~280Vac Input Frequency Rated Frequency: 50/60HZ Variation Frequency: 47~63Hz |
|
Input current 0.5Amax. at any input voltage and rated, DC output rated load. |
|
Inrush Current 30Amax. @ 264Vac input Efficiency: 80% min at 100Vac input and output rated .Load. |
|
Turn on delay time: 80% min at 100Vac input and output rated .Load. 3S max. @ 100 Vac to 240 Vac input & Full load Rise time 20mS max. @ Rated load Hold up time: 5mS min. @ Full load &230Vac/50Hz input turn off at worst case |
|
Short circuit protection: The power supply will be auto recovered when short circuit faults remove. Over current Protection: The power supply will be auto recovered when over current faults remove Over Voltage Protection: The power supply will auto recovered when faults remove 120%~150%. |
|
Environmental requirement: Operating Temperature: 0~40°C ,full load , normal operation. Storage Temperature: -20~80°C with package Relative Humidity: 10%(0°C) ~90%(40°C) RH |

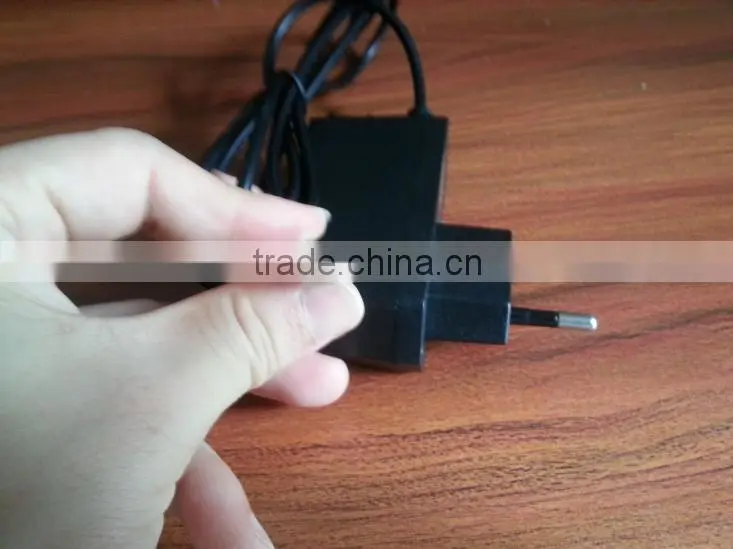

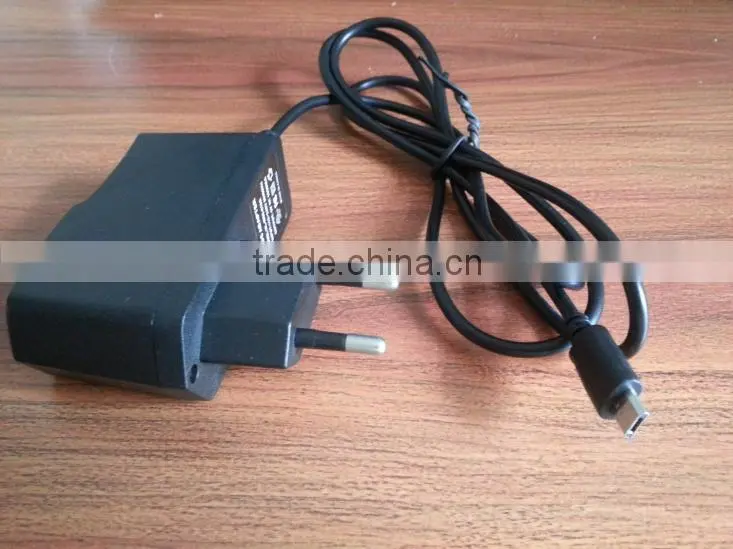

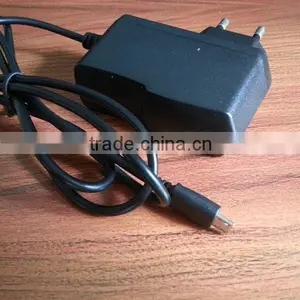

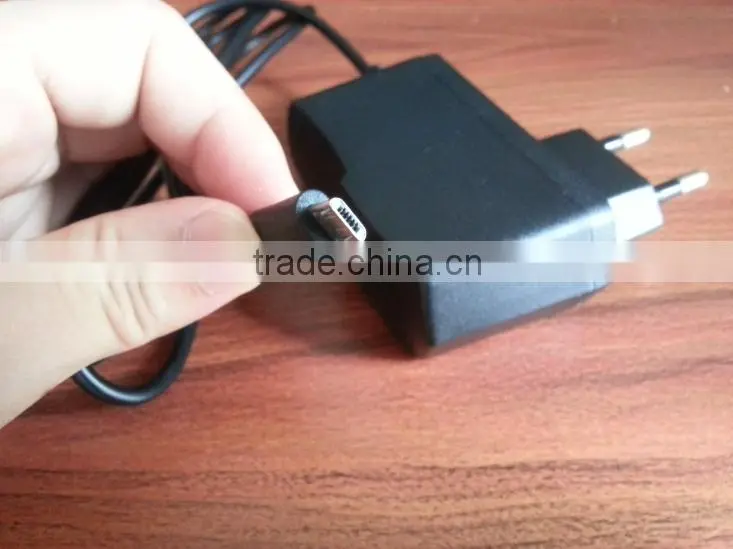

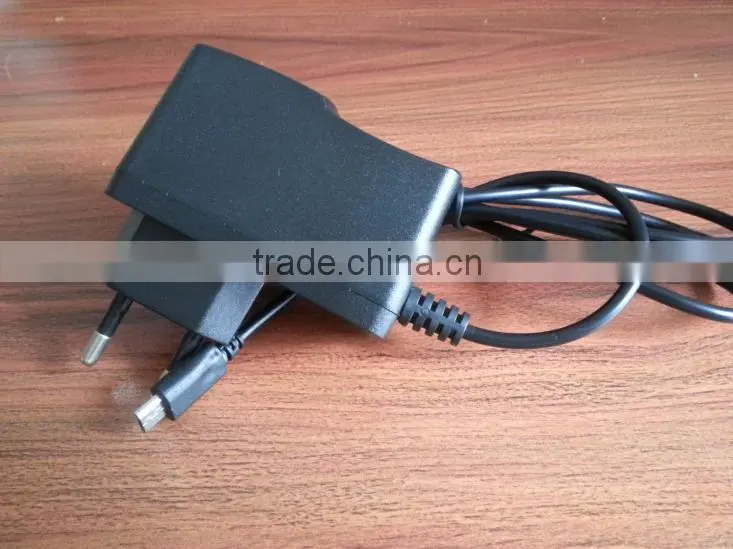

3.Photos:
4.Reliability
- 1)Heat-resistance: The ingenico iwl220 power supply shall be stored at a temperature of 55+/-2 °C for 16 hours. Then No distortion and (Storage) it shall be subjected to standard astrospheres conditions for 2 hours,
- 2)Heat resistance: The ingenico iwl220 power supply shall be placed at a temperature of 25+/-2 °C and operating at No abnormity (Operation) full load for 4 hours. Measurement shall be made.
- (3)Cold-resistance: The ingenico iwl220 power supply shall be stored at a temperature of -20+/-2 °C for 16 hours. No distortion and (Storage) Then it shall be subjected to standard astrospheres conditions for 2 hour, No function error after which measurement shall be made.
- 4)Cold-resistance: The ingenico iwl220 power supply shall be placed at a temperature of 0+/-2 °C and operating at No abnormity (Operation) rate75% full load for 4 hours. Measurement shall be made.
- 5)Body surface temp: at a entironment temperature of 23+/-2 °C , 100VAC/2.0A load ≤65°C For 2 hours, measure central section of sueface (thermoelectric couple method)
- 6) M.T.B.F: 50K Hours At 25°C With 80% Loading No abnormity
- 7) Life : Average Life Expectancy Or 3 Years

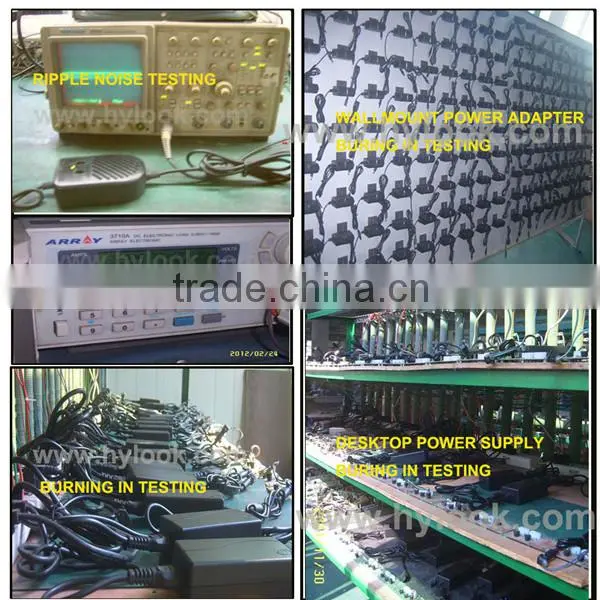

5.testing :
11.package:
