Specifications

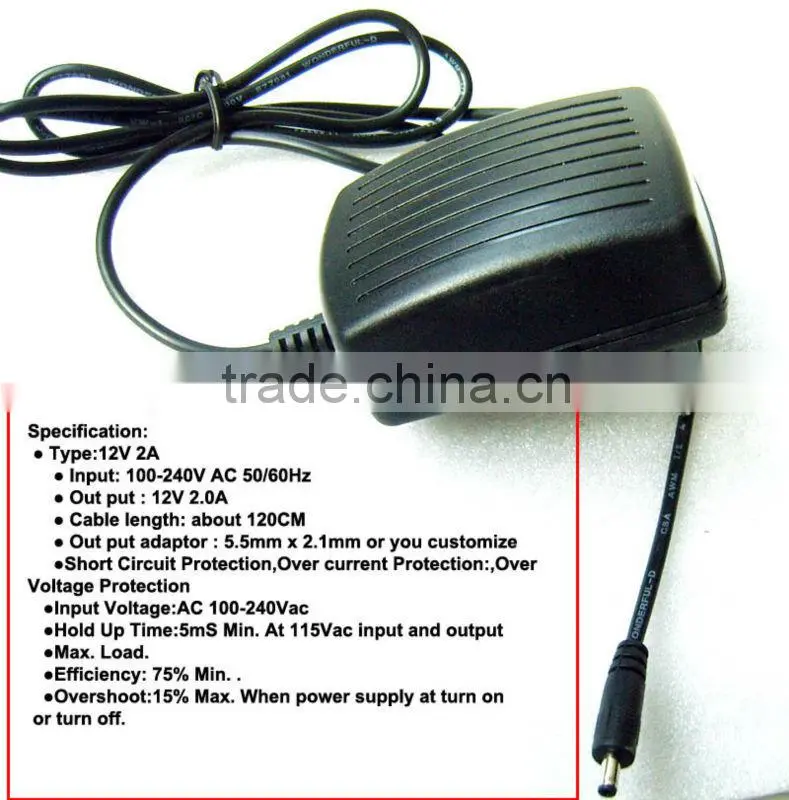

12V 2A Power Adapter for Android Tablet PC1.Input:110-240V
2.Output:12V 2A
3.Use for:Android Tablet pc
4.SASO,IEC 60950
12V 2A Power Adapter for Android Tablet PC
Saso ,IEC 60950 approvaled for Saudia Arabic market !welcome inquiry
------------------------------------------------------------------------------------------------------------------
1.Application of Universal 12V 2A Power adapter :
- For the Wireless Router, ADSL Cats, HUB, Switches
- Security Cameras.Audio/Video,Tablet PC,LED strip 12V 2A Power adapter .
------------------------------------------------------------------------------------------------------------------
2.Specitication:
|
| |||||||||||
Input Voltage | |||||||||||
Rated Voltage |
100-240Vac |
||||||||||
Variation Range |
90-264Vac |
||||||||||
Input Frequency | |||||||||||
Rated Frequency |
50/60Hz |
||||||||||
Variation Frequency |
47-63Hz |
||||||||||
Input Current |
0.5Arms At any input voltage and rated. DC output rated load.
|
||||||||||
Inrush Current |
30 Amps Max. Cold start at 240Vac input, with rated load and 25°C ambient |
||||||||||
AC Leakage Current |
0.25 mAMax. At 240Vac input |
||||||||||
|
| |||||||||||
|
Power Output |
|
||||||||||
Combined Load/Line Regulation |
|
||||||||||
Ripple And Noise |
Under rated voltage and nominal load,The ripple and noise are as follows when measure with Max. Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.
|
||||||||||
Turn On Delay Time |
2 second Max. At 115Vac input and output Max. Load.
|
||||||||||
Rise Time |
40mS Max. At 115Vac input and output Max. Load |
||||||||||
Hold Up Time |
5mS Min. At 115Vac input and output Max. Load.
|
||||||||||
|
Efficiency |
75% Min. At 100Vac input and output Max. Load. 75% Min. At 240Vac input and output Max. Load.
|
||||||||||
Overshoot |
15% Max. When power supply at turn on or turn off.
|
||||||||||
| |||||||||||
Short Circuit Protection |
The power supply will be auto recovered when short circuit faults remove |
||||||||||
Over current Protection |
The power supply will be auto recovered when over current faults remove |
||||||||||
Over Voltage Protection |
The power supply will not be auto recovered when faults remove 110%-150%. |
||||||||||
| |||||||||||
|
Operating Temperature:
|
0°C to 40°C,Full load, Normal operation.
|
||||||||||
|
Storage Temperature:
|
-20°C to 85°C With package
|
||||||||||
|
Axes,10 cycles per axis.
|
(No permanent damage may occur during testing. The product has to restore to its original situation after power off/on.)
|
||||||||||
|
Dropping Packed:
|
1 corner,3 edges, and 6 surfaces Height:76cm
|
||||||||||
|
Vibration:
|
1.Operating: IEC 721-3-3 3M3 5~9Hz,A=1.5mm 9~200Hz,Acceleration 5m/s2
|
||||||||||
Relative Humidity: |
5%(0°C)~90%(40°C)RH,72Hrs,Full load, Normal operating
|
||||||||||
| |||||||||||
Length of dc cable |
1.2 Meter |
||||||||||
DC tip size |
5.5x2.1mm or you customize |
||||||||||
------------------------------------------------------------------------------------------------------------------
3.Description:
- 100% Brand New High Quality AC adapter
- Power your Notebook with this excellent AC adapter
- Over Voltage Protection, Short Circuit Protection, Over Current Protection
4. Different ac plug standard are available for the switching adapter wallmounted style

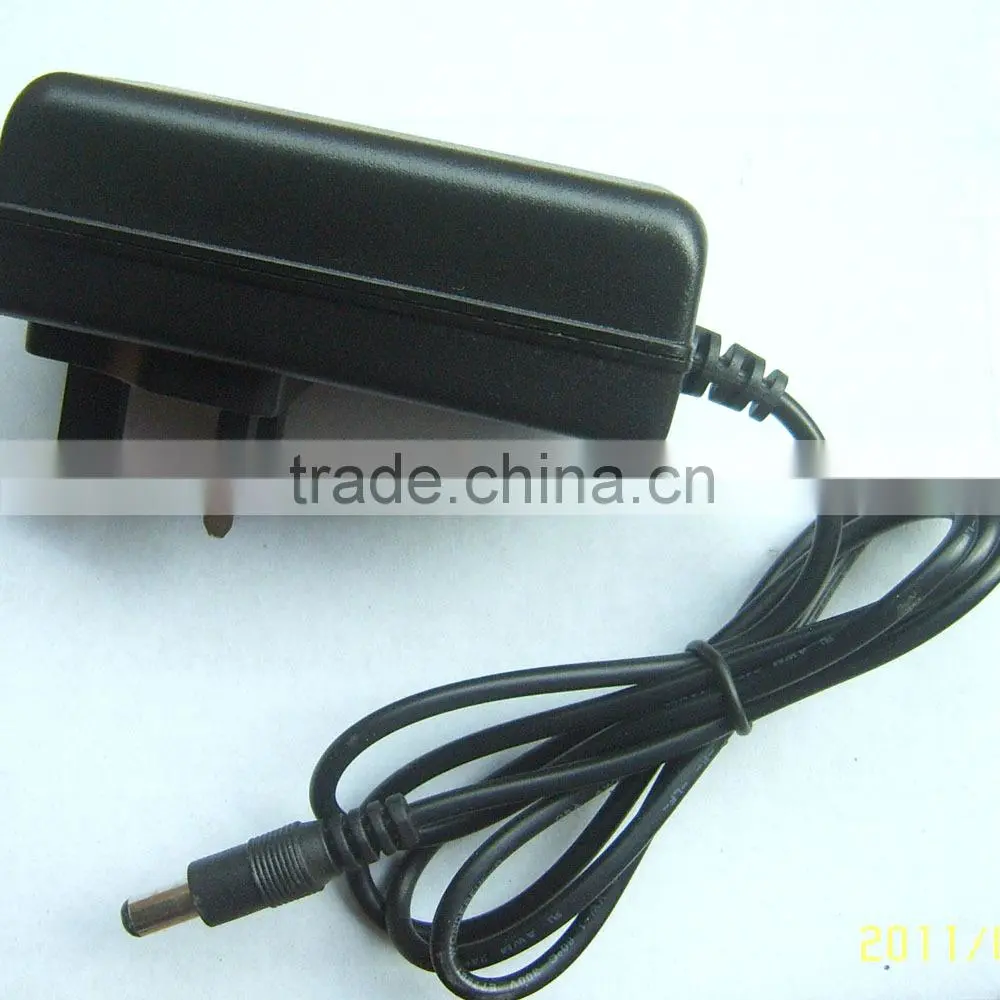

BS 1363 ,SASO standard plug (bs plug ) :

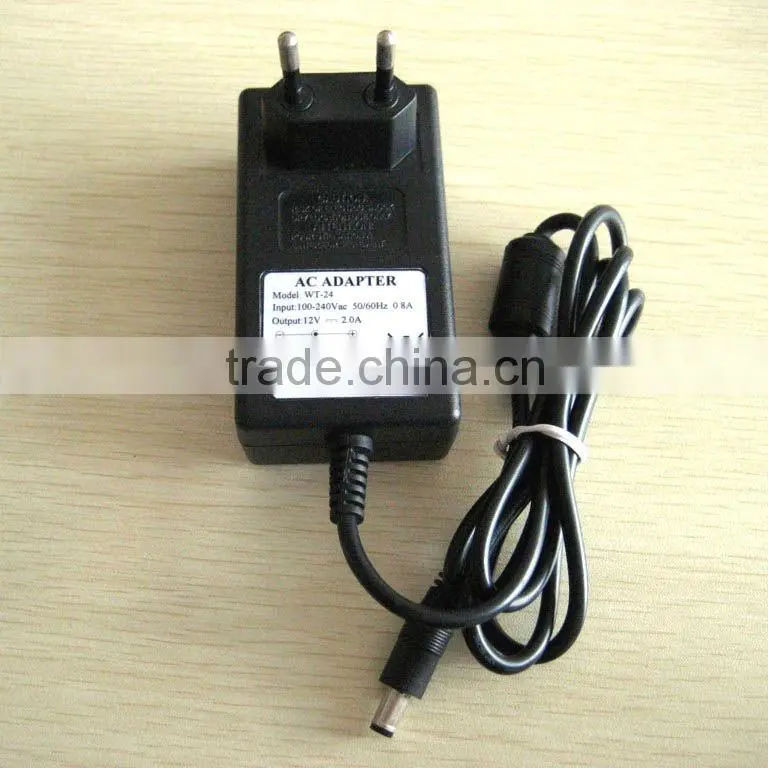

- Euro standard plug:

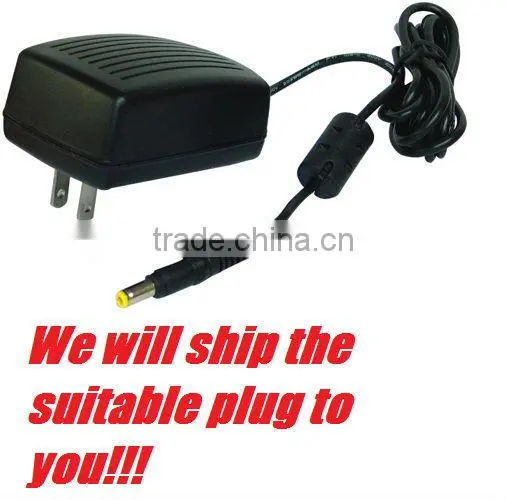

- US standard plug
------------------------------------------------------------------------------------------------------------
5.Safety
- Max. Temperature rise <40 on casing At any line and Max. Load
- MTBF hrs 40000
------------------------------------------------------------------------------------------------------------
6.Features:
- + High quality AC adapter
- + Material of shell: PCB+ABS, Rating of temperature: 270 degree
- + Wide range voltage: 100-270V
- + Circuit board: Half-wave, over-voltage, over-current, short circuit protecting.
------------------------------------------------------------------------------------------------------------
7.Strict test procedure for every piece of switching adapter :

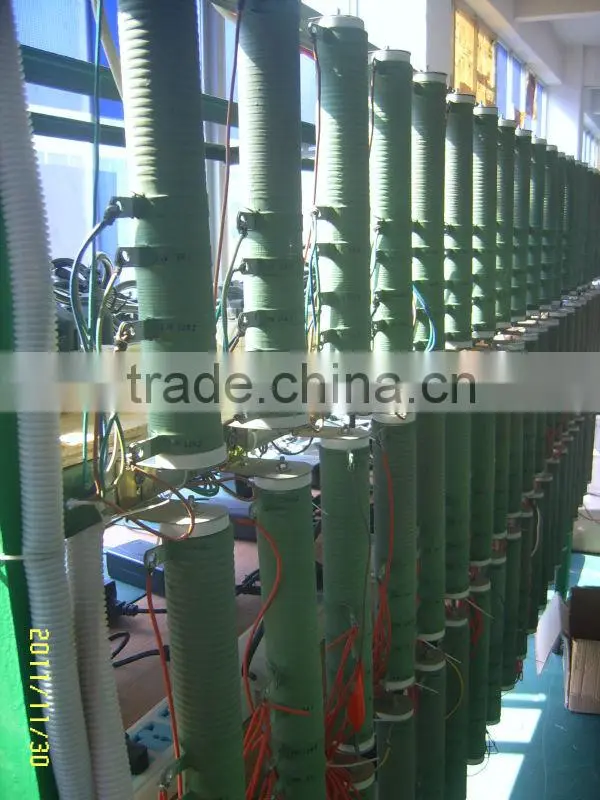

- Burning in test on 80% load for full 3 hours
- Control the defective switching adapter to the lowest
-------------------------------------------------------------------------------------------------------------------
8.Different kinds of Packages are available for switching adapter
-------------------------------------------------------------------------------------------------------------------
9.About our company:
- We,shenzhen hylook electronic is a factory professionally manufacturing laptop adapter, Universal switching adapter, car charger, 5-150W all kinds of desktop and plug in switching adapter and pos terminal cables /connectors etc. Original quality, high-technic design, competitive price, just waiting for your test, as first deal with, we can offer sample to you for testing, cause I believe my sample will led our business in the future.
- Photo of our factory:
