Mitutoyo 511-411 Dial Bore Gauge for Blind Holes, 15-35mm Range, 0.01mm
US$ 420 - 480
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Mitutoyo
Model Number:
511-411
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mitutoyo 500-171-30 Advanced Onsite Sensor Absolute Scale Digital Caliper, 0-6"US$ 210 - 290MOQ: 1 Set -
New Mitutoyo 505-673 Dial Caliper/Calipers 300mm/0.02mmUS$ 200 - 296.5MOQ: 1 Set
-
Mitutoyo 511-204 Dial Bore Gauge for Small Holes 10-18.5mm Range 0.01mm Brand NewUS$ 240 - 290MOQ: 1 Set
-
Mitutoyo 406-250 LCD Outside Micrometer, Non-Rotating Spindle, Ratchet StopUS$ 520 - 580MOQ: 1 Set
-
Mitutoyo 293-141 QuantuMike Coolant Proof LCD Micrometer, IP65, Ratchet ThimbleUS$ 300 - 360MOQ: 1 Set
Place of Origin
China
Brand Name
Mitutoyo
Model Number
511-411
Product Description

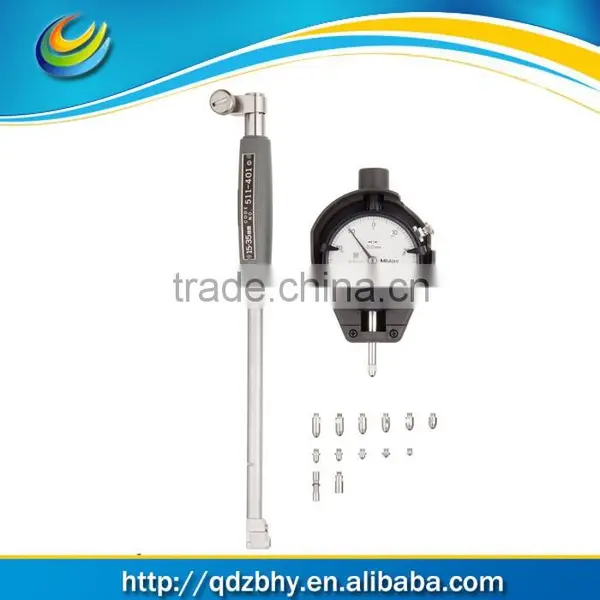

The Mitutoyo 511-411 Dial Bore Gauge for Blind Holes has a measurement range of 15 to 35 mm and is accurate to + or - 0.005 mm. It is precise to 0.01 mm and can measure internal diameters at positions close to the bottom of blind holes. This direct-measuring gauge uses a two-point contact system to detect geometry problems such as ovality and taper, and carbide-tipped contact points provide extended wear and improved abrasion resistance. A rugged cover protects the dial indicator.
Bore gauges measure holes, or bores, in a workpiece. They can measure the interior diameter of a hole at any depth, while internal micrometers can only measure to the depth of their teeth. Bore gauges are typically calibrated with a setting ring and come in two types: simple and direct-measuring. Simple bore gauges are used with a caliper to transfer the hole measurement, while the more complex gauges take the measurement directly, and display it through a vernier, dial, or digital display. Bore gauges have a two- or three-point contact, indicating how many points on the gauge head touch the inside of the bore. Two-point contacts are better at measuring ovality, while three-point contacts are used to measure lobing or triangular form error. Pistol-grip bore gauges are used for fast, single-handed operation with repeatable results from one operator to another. Bore gauges can also be used in special applications, such as measuring threads, spline pitch diameters, and deep bores.
Mitutoyo manufactures precision measuring tools, metrology equipment, and related systems. The company, founded in Tokyo in 1934, formed Mitutoyo America Corporation in 1963 with headquarters in Aurora, IL.
Mitutoyo 511-411 Dial Bore Gauge for Blind Holes
Bore gauges measure holes, or bores, in a workpiece. They can measure the interior diameter of a hole at any depth, while internal micrometers can only measure to the depth of their teeth. Bore gauges are typically calibrated with a setting ring and come in two types: simple and direct-measuring. Simple bore gauges are used with a caliper to transfer the hole measurement, while the more complex gauges take the measurement directly, and display it through a vernier, dial, or digital display. Bore gauges have a two- or three-point contact, indicating how many points on the gauge head touch the inside of the bore. Two-point contacts are better at measuring ovality, while three-point contacts are used to measure lobing or triangular form error. Pistol-grip bore gauges are used for fast, single-handed operation with repeatable results from one operator to another. Bore gauges can also be used in special applications, such as measuring threads, spline pitch diameters, and deep bores.
Mitutoyo manufactures precision measuring tools, metrology equipment, and related systems. The company, founded in Tokyo in 1934, formed Mitutoyo America Corporation in 1963 with headquarters in Aurora, IL.
Mitutoyo 511-411 Dial Bore Gauge for Blind Holes
