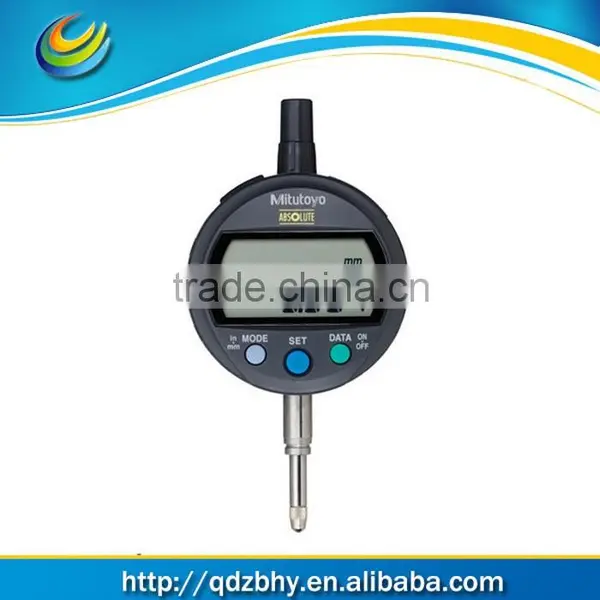

Help CenterMitutoyo 543-390B Absolute LCD Digimatic Indicator ID-C Standard Type 0to 12.7mm
Related Products
-
Mitutoyo 511-703 Bore Gauge 50-150mm Without IndicatorUS$ 200 - 269MOQ: 1 Set -
Mitutoyo 511-209 Dial Bore Gauge for Small Holes 6-10mmUS$ 200 - 265MOQ: 1 Set
-
Mitutoyo Metric Dial Indicator Mitutoyo 1044SUS$ 89 - 134MOQ: 1 Set
-
Mitutoyo 2109S-10 Micron Dial Indicator 0-1mm 0.001US$ 73 - 121MOQ: 1 Set
-
Mitutoyo 103-139-10 Outside Micrometer 50-75mmUS$ 100 - 140MOQ: 1 Set
FEATURES :
Display: LCD, length standard: absolute electrostatic capacitance type linear encoder, max. Response speed: unlimited, measuring force: refer to the list of specifications, battery: sr44 (1 pc.), 938882, battery life: approx. 5,000 Hours under normal use, dust/water protection level: ip42 or ip53 (dust-proof type) origin-set/preset, zeroset, go/+/-ng judgment, counting direction switching, power on/off, data output, inch/mm conversion (on inch/metric models only).
- As compact as standard series 2 dial indicators Large, easy-to-read led, stem diameter 8mm, M2.5 x 0.45 Thread
- Go/+/-NG Judgment can be performed by setting upper and lower tolerance limits the judgment result (go/+/-ng) can be displayed in full-size characters
- The positive/negative count resulting from the spindles up/down movement can be toggled. alarm for low voltage, counting value composition error, over-flow error, tolerance limit setting error, internal calculations using the simple formula of [F(x) = Ax)] are available
- Internal calculations using the simple formula of [f(x) = ax)] are available. employing the absolute linear encoder, the id-c always displays the spindle "absolute position" from the origin at power-on. also unlimited response speed eliminates over-speed errors
- The ID-C Indicator face can be rotated 330 degree to an appropriate angle for easy reading. with spc data output
- Dimensions (in): 3.00 X 7.60 X 4.30
| Specifications: | |
| Brand | Mitutoyo |
| Product Code | 543-390B |
| Range | 0-12.7mm |
| Accuracy | ±0.003mm |
