18.5v 2a power supply

FOB Price

USD $2.5 - $3.5 / Unit

200 Units(Min.Order)

Supply Ability 50000 Unit / Units per Month
Port Shenzhen
Payment Terms:Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	hylook	Model Number:	HL-W0185-020
Output Type:	DC	Connection:	Plug In

Product Description

Specifications

18.5v 2a power supply
1.Input:AC110-240V 50/60HZ
2.Output:DC18.5v 2a
3.AU/EU / USA/ UK plug
4.efficency: 80%

18.5v 2a power supply

1.Features:

input:110v -240v
output:18.5v 2a
dc connector :5.5*2.5cm/5.5*2.1cm/mini usb /micro usb/ mini HDMI/3PIN power din etc
the length of the cable :1.2m 1.5m 1.8m ( can be done as you customized)
warranty: one year
the size of the housing :8*5.5*3.5cm
for :CCTV camera , LCD monitor , LED strip ,

2.Specification :

Input	Input voltage	AC90-264Vac, 50-60Hz
	Rate voltage	100V-240V
	Input current	0.5A Max
	Inrush current	≤20A
	Leakage currnet	<1mA
Output	Max power	37
	Output voltage	DC 15V ± 5%
	Ripple wave	(mVp-p): ≤100mV
	Linear modulate	±5%max
	Temperature coefficient	±0.02%/°C
	Start time	≤3s(100VAC input, Full load)
	Guard time	≥20ms(240VAC input, Full load)
Protection	Override protection	115%~200%vA,automatic recovery
Protection	Short-circuit protection	1 channel:automatic recovery
Insulation	Insulation strength	3000VAC/5mA, 1MIN
Insulation	Insulation resistance	≥30MΩ,DC 500V
Environment	Working temperature	0°C~40°C,20%~90%RH Non-Condensing
Environment	Store temperature	-20°C~80°C,20%~90%RH Non-Condensing
Standards	Safety Standards	GB4943-2001 IEC60950
	EMC	En55022
	Efficiency	≥80%
Size	Size	LWH=85.53.5cm

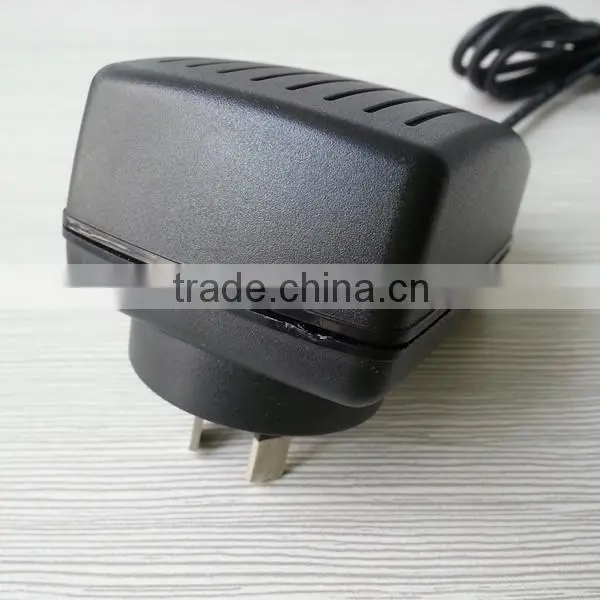

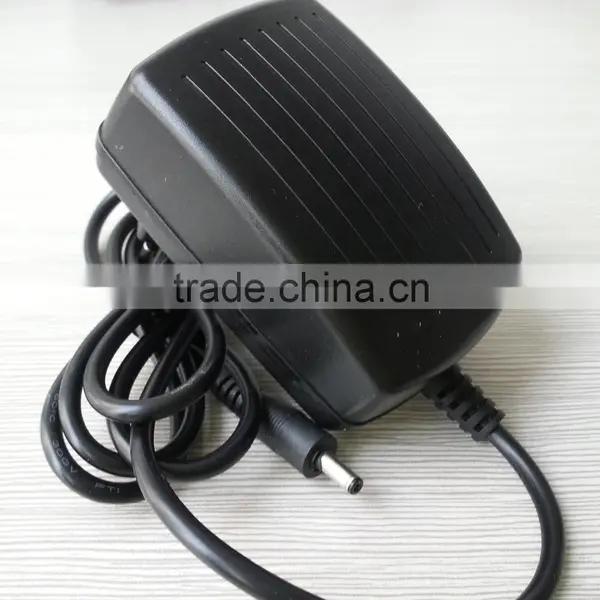

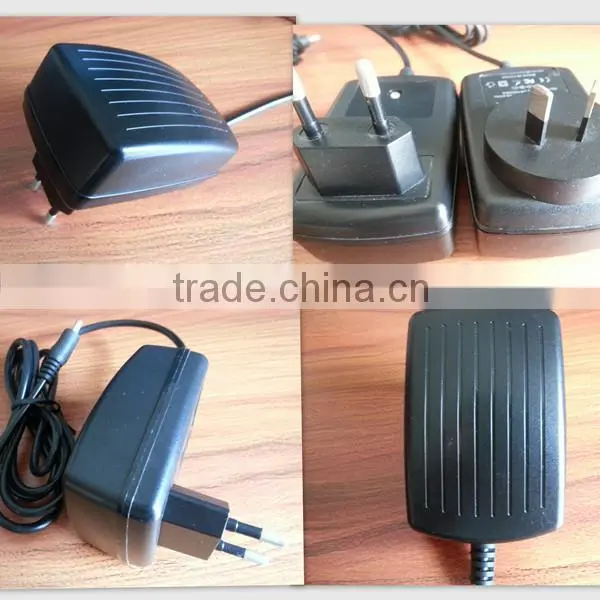

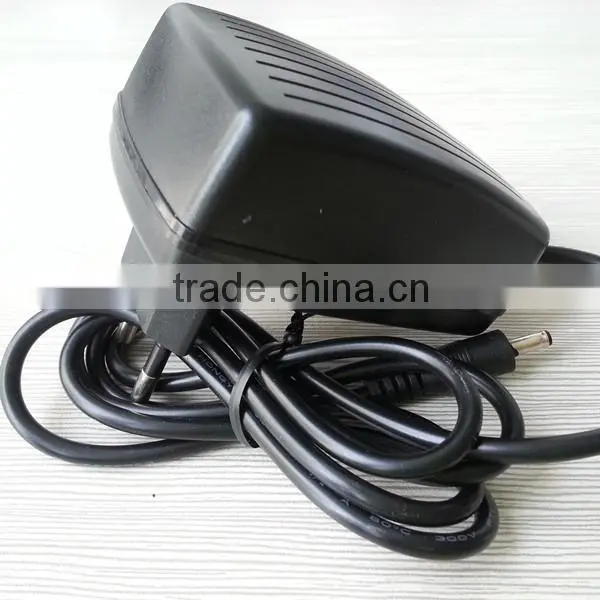

3.Photo of the adapter :

4.Package :

5.Power adpaters we can provide:

12~18W SERIES

Model

InputVoltage

Power

OutputVoltage

OutputCurrent

ACInletType

HL-P090-010

100-240VAC

C6 C8 C12

HL-P090-015

100-240VAC

24W

1.5A

C6 C8 C12

HL-P090-020

100-240VAC

24W

C6 C8 C12

HL-P12-010

100-240VAC

27W

12V

C6 C8 C12

HL-P12-015

100-240VAC

30W

12V

1.5A

C6 C8 C12

24W~36W SERIES

Model

InputVoltage

Power

OutputVoltage

OutputCurrent

ACInletType

HL-P12-020

100-240VAC

24W

12V

C8,C6,C14

HL-P15-016

100-240VAC

24W

15V

1.6A

C8,C6,C14

HL-P24-010

100-240VAC

24W

24V

C8,C6,C14

HL-P090-030

100-240VAC

27W

C8,C6,C14

HL-P24-0125

100-240VAC

30W

24V

1.25A

C8,C6,C14

36W~65W SERIES

Model

InputVoltage

Power

OutputVoltage

OutputCurrent

ACInlet

HL-P090-040

100-240VAC

36W

C8,C6,C14

HL-P090-050

100-240VAC

45W

C8,C6,C14

HL-P090-060

100-240VAC

54W

C8,C6,C14

HL-P12-030

100-240VAC

36W

12V

C8,C6,C14

HL-P12-040

100-240VAC

48W

12V

C8,C6,C14

HL-P12-050

100-240V AC

60W

12V

C8,C6,C14

HL-P15-030

100-240V AC

45W

15V

C8,C6,C14

HL-P15-040

100-240V AC

60W

15V

C8,C6,C14

HL-P19-020

100-240V AC

38W

19V

C8,C6,C14

HL-P19-030

100-240V AC

48W

19V

C8,C6,C14

HL-P19-036

100-240V AC

60W

19V

3.16A

C8,C6,C14

HL-P19-0316

100-240V AC

65W

19V

3.42A

C8,C6,C14

HL-P24-020

100-240V AC

48W

24V

C8,C6,C14

HL-P24-025

100-240V AC

60W

24V

2.5A

C8,C6,C14

72W~96W SERIES

Model

InputVoltage

Power

OutputVoltage

OutputCurrent

ACInlet

HL-P12-060

100-240VAC

72W

12V

C8,C6,C14

HL-P12-070

100-240VAC

84W

12V

C8,C6,C14

HL-P24-030

100-240VAC

72W

24V

C8,C6,C14

HL-P24-040

100-240VAC

96W

24V

C8,C6,C14

6.Strict Test:

7.Company files and Factory show :

Our facotry is the professional manufacturer specialized in power supply for cctv camera , lcd monitor , led strip , pos printer , pos terminal etc for about 6 years . we can also do the item you customized ,so the OEM&ODM is available .
