15v 1.5a ac Adapter

15v 1.5a ac Adapter thumbnail-1
15v 1.5a ac Adapter thumbnail-2
15v 1.5a ac Adapter thumbnail-3
15v 1.5a ac Adapter thumbnail-4
15v 1.5a ac Adapter photo-1
15v 1.5a ac Adapter photo-2
15v 1.5a ac Adapter photo-3
15v 1.5a ac Adapter photo-4
US$ 2.5 - 3.5 MOQ: 200 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
hylook
Model Number:
HL-W015-015
Contact Supplier Request Quote Chat Now
Shenzhen Hylook Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name hylook
Model Number HL-W015-015
Output Type DC
Connection Plug In

Specifications

15v 1.5a ac adapter
1.Input:AC110-240V 50/60HZ
2.Output:DC15v 1.5a
3.AU/EU / USA/ UK plug
4.efficency: 80%

15v 1.5a  ac adapter



1.Features:

  •       input:110v -240v
  •      output:15v 1.5a
  •       dc connector :5.5*2.5cm/5.5*2.1cm/mini usb /micro usb/ mini HDMI/3PIN power din etc
  •        the length of the cable :1.2m 1.5m 1.8m ( can be done as you customized)
  •        warranty: one year
  •        the size of the housing :8*5.5*3.5cm
  •        for :CCTV camera , LCD monitor , LED strip ,



2.Specification :

Input

Input voltage

AC90-264Vac, 50-60Hz

Rate voltage

100V-240V

Input current

0.5A Max

Inrush current

≤20A

Leakage currnet

<1mA

Output

Max power

  22.5

Output voltage

DC 15V ± 5%

Ripple wave

(mVp-p): ≤100mV

Linear modulate

±5%max

Temperature coefficient

±0.02%/°C

Start time

≤3s(100VAC input, Full load)

Guard time

≥20ms(240VAC input, Full load)

Protection

Override protection

115%~200%vA,automatic recovery

Short-circuit protection

1 channel:automatic recovery

Insulation

Insulation strength

3000VAC/5mA, 1MIN

Insulation resistance

≥30MΩ,DC 500V

Environment

Working temperature

0°C~40°C,20%~90%RH Non-Condensing

Store temperature

-20°C~80°C,20%~90%RH Non-Condensing

Standards

Safety Standards

GB4943-2001 IEC60950

EMC

En55022

Efficiency

≥80%

Size

Size

L*W*H=8*5.5*3.5cm

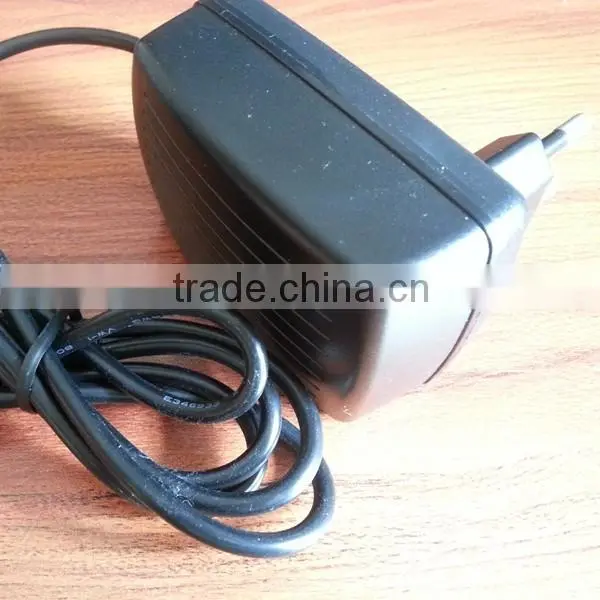

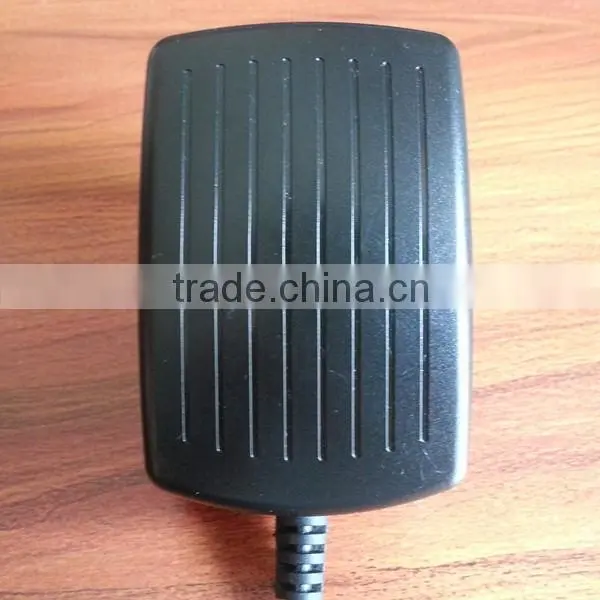

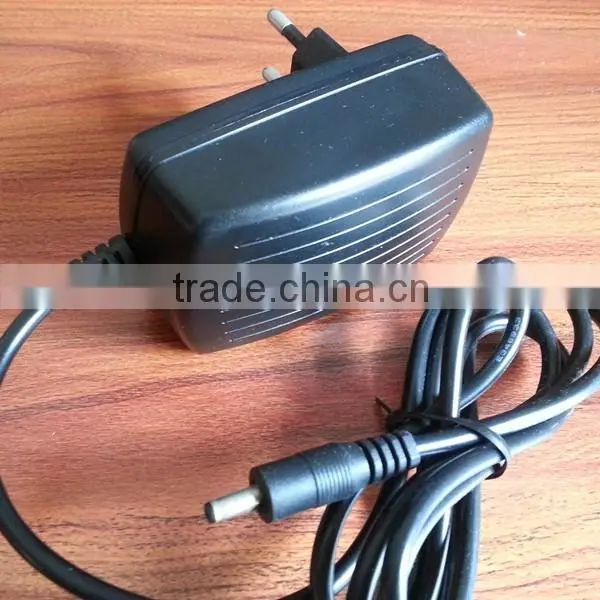

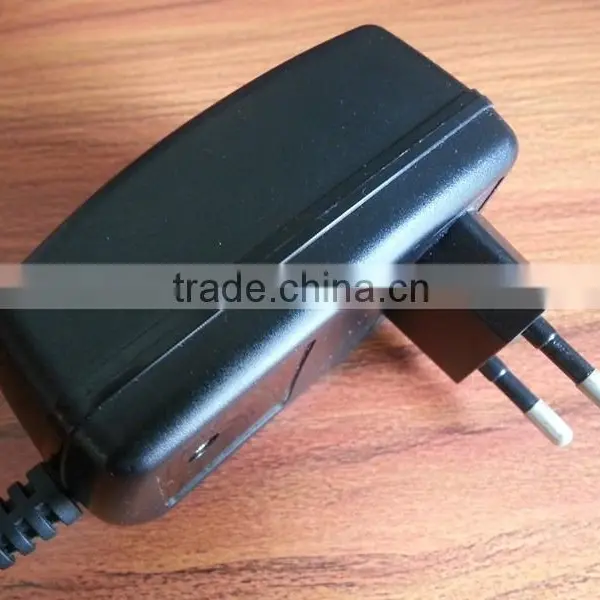

3.Photo of the adapter :

 15v 1.5a ac adapter





4.Package :

 15v 1.5a ac adapter







5.Power adpaters we can provide:

12~18W SERIES

Model

InputVoltage

Power

OutputVoltage

OutputCurrent

ACInletType

HL-P090-010

100-240VAC

9W

9V

1A

C6 C8 C12

HL-P090-015

100-240VAC

24W

9V

1.5A

C6 C8 C12

HL-P090-020

100-240VAC

24W

9V

2A

C6 C8 C12

HL-P12-010

100-240VAC

27W

12V

1A

C6 C8 C12

HL-P12-015

100-240VAC

30W

12V

1.5A

C6 C8 C12


24W~36W SERIES

Model

InputVoltage

Power

OutputVoltage

OutputCurrent

ACInletType

HL-P12-020

100-240VAC

24W

12V

2A

C8,C6,C14

HL-P15-016

100-240VAC

24W

15V

1.6A

C8,C6,C14

HL-P24-010

100-240VAC

24W

24V

1A

C8,C6,C14

HL-P090-030

100-240VAC

27W

9V

3A

C8,C6,C14

HL-P24-0125

100-240VAC

30W

24V

1.25A

C8,C6,C14

36W~65W SERIES

Model

InputVoltage

Power

OutputVoltage

OutputCurrent

ACInlet

HL-P090-040

100-240VAC

36W

9V

4A

C8,C6,C14

HL-P090-050

100-240VAC

45W

9V

5A

C8,C6,C14

HL-P090-060

100-240VAC

54W

9V

6A

C8,C6,C14

HL-P12-030

100-240VAC

36W

12V

3A

C8,C6,C14

HL-P12-040

100-240VAC

48W

12V

4A

C8,C6,C14

HL-P12-050

100-240V AC

60W

12V

5A

C8,C6,C14

HL-P15-030

100-240V AC

45W

15V

3A

C8,C6,C14

HL-P15-040

100-240V AC

60W

15V

4A

C8,C6,C14

HL-P19-020

100-240V AC

38W

19V

2A

C8,C6,C14

HL-P19-030

100-240V AC

48W

19V

3A

C8,C6,C14

HL-P19-036

100-240V AC

60W

19V

3.16A

C8,C6,C14

HL-P19-0316

100-240V AC

65W

19V

3.42A

C8,C6,C14

HL-P24-020

100-240V AC

48W

24V

2A

C8,C6,C14

HL-P24-025

100-240V AC

60W

24V

2.5A

C8,C6,C14

72W~96W SERIES

Model

InputVoltage

Power

OutputVoltage

OutputCurrent

ACInlet

HL-P12-060

100-240VAC

72W

12V

6A

C8,C6,C14

HL-P12-070

100-240VAC

84W

12V

7A

C8,C6,C14

HL-P24-030

100-240VAC

72W

24V

3A

C8,C6,C14

HL-P24-040

100-240VAC

96W

24V

4A

C8,C6,C14






6.Strict Test:

15v 1.5a ac adapter



7.Factory show :

15v 1.5a ac adapter
