Mitutoyo Pocket Type Dial Test Indicator 513-517T
US$ 130 - 198
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Mitutoyo
Model Number:
513-517T
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mitutoyo 511-201 Dial Bore Gauge for Small HolesUS$ 200 - 300MOQ: 1 Set -
Mitutoyo 511-210 Dial Bore Gauge for Small HolesUS$ 245 - 321MOQ: 1 Set
-
Mitutoyo 422-271 LCD Blade Micrometer, Ratchet Stop, 0-25mm Range, 0.001mmUS$ 724 - 778MOQ: 1 Set
-
Mitutoyo 530-115 Vernier CaliperUS$ 150 - 231MOQ: 1 Set
-
Mitutoyo 7321 Dial Thickness GageUS$ 150 - 230MOQ: 1 Set
Place of Origin
China
Brand Name
Mitutoyo
Model Number
513-517T
Product Description

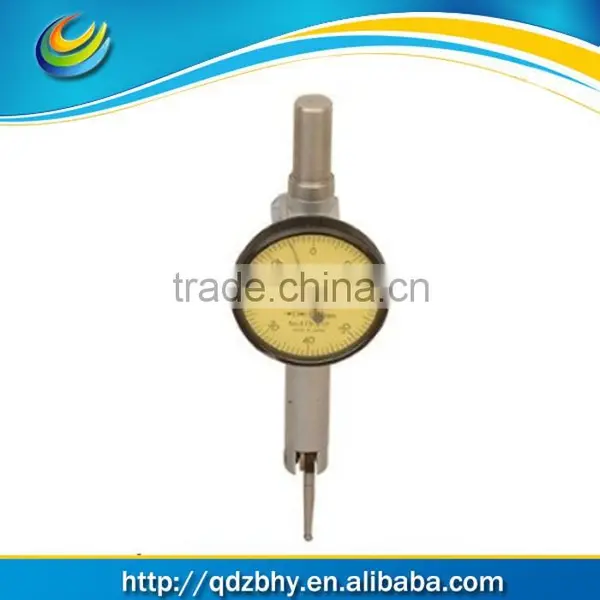

The Mitutoyo 513 series Pocket type dial test indicator has a yellow face, a 4mm stem diameter, and metric measurements. The indicator has a reversible measuring direction and an adjustable contact point, and is used to measure surface variations in narrow or recessed areas. The pocket-type dial test indicator has a horizontal face and three dovetail mounts, and can be mounted either horizontally or vertically from either the front, top, or back of the indicator. It has jeweled bearings that provide high sensitivity and accuracy, a reversible measuring direction, and a contact point that can be adjusted within 220 degrees of the axis. This dial indicator meets Japanese Industrial Standard (JIS) B7533-1990. The full set includes a dial indicator, three contact points (1mm, 2mm, and 3mm), two stems (4mm and 8mm diameter), a knurled clamp ring, a swivel clamp, a 100mm metric holding bar, and a plastic storage box.
Full Set,
Horizontal Type,
8mm Stem Dia.,
Yellow Dial, 0-40-0 Reading,
33mm Dial Dia.,
0-0.8mm Range,
0.01mm Graduation,
+/-0.008mm Accuracy
