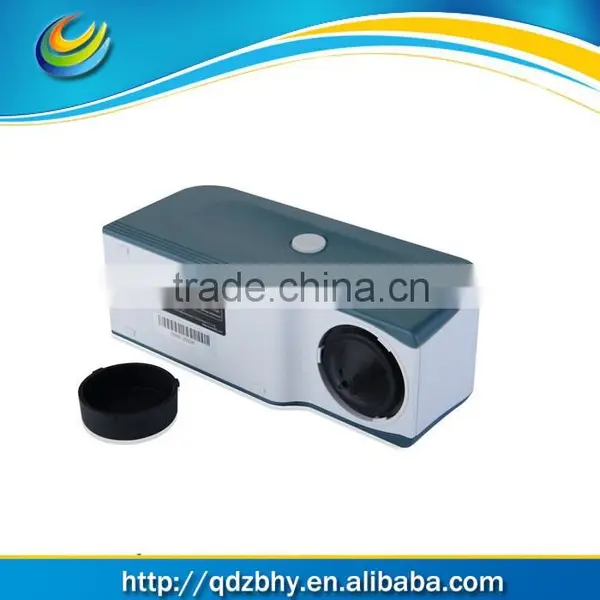

Help CenterHigh Precise WAVE WF30 16mm Colorimeter Color Meter
Related Products
-
Digital Handheld Type Color Meter Colorimeter Measurement Range WF32 8mm L: 0 to 100 WF-32US$ 1,970 - 2,000MOQ: 1 Set -
Digital Color Meter WF32 16 mm Colorimeter Measurement Caliber WF-32US$ 2,270 - 2,300MOQ: 1 Set
-
Precision Color Screen Display Lithium Battery Colorimeter WR-10US$ 445 - 510MOQ: 1 Set
-
WG60G Glossmeter Tester Measurement Range 0-2000Gu Gloss MeterUS$ 615 - 700MOQ: 1 Set
-
UT232 Digital Power Clamp Meters UT232US$ 200 - 300MOQ: 1 Set
Description:
Precision colorimeter WF30 is based on the International Commission on Illumination CIE relevant standards, national standards developed and produced through the National Measurement SCM certified professional colorimeter. The colorimeter using the new import key components, carefully designed, with accuracy and stability, simple operation, easy to learn, affordable and so on.Taking into account the complexity of the colorimeter measurement and diversity of user requirements, developed the country's first optical measurement of 16mm caliber precision colorimeter. If you want to measure the texture of the object exists, pitting, or the measured surface grainy relatively strong or relatively large size of the measured object, or analyte soft and pop-up object, this time you can use 16mm diameter colorimeter for measuring
WF30 Precise Colorimeter | |
Model Number |
WF30 |
Display mode |
CIELAB,CIELCH |
Color difference formula |
ΔE *ab |
Illumination Condition |
CIE Recommendation:8/d |
Light Source |
The LED blue light excitation |
Sensor |
Photodiode array |
Measuring Aperture |
Φ16mm |
Measuring Condition |
Observer:CIE 10° Standard observer Light source: D65 D50 F11 (TL84) Contain light way:SCI SCE |
Measuring Range |
L:0-100 |
Repeated Accuracy |
ΔE<0.05(take the deviation average after 30 times measuring the whiteboard) |
Table Difference |
ΔE <0.2 |
Measurement Time |
0.5 second |
Storage Capacity |
100 standard samples and 20000 test sample |
Battery Power supply |
Li-ion battery, 5000 times Measurement |
Lifetime of Bulb |
5years more than 160 million measuring |
Display screen |
TFT true color 2.8inch@(16:9) Resolution ratio:400x240 |
Interface of External |
USB2.0 (USB-B)-DATA communication with "color analysis system" software RS-232 (115200bps)- connected with micro printer |
Working Temperature Range |
0°C-40°C (32°F-104°F) |
Storage Temperature Range |
-20°C-50°C (-4°F-122°F) |
Humidity Range |
Relative humidity less than 85%,without condensation |
Net Weight |
700g |
Dimension |
199x68x90mm |
Demension after package |
400x240x340mm |
Standard Accessory |
3000mAH Li-ion battery/AC adapter/User manual/Warranty card |
Optional Accessory |
Flour measuring device/Liquid measuring device/Micro printer |
Feature:
1.Through the SCM test
2.Simple, accurate, easy-to-use, convenient
3.Analysis the best assistant of the color, the simplest operation chromatic meter
4.Chromaticity diagram, color difference bias Figure directly imply larger font display, be clear at a glance
5.The design of human engineering mechanics
6.High repeat accuracy: ΔE <0.05
7.Through National Metrology (SCM)
8.Advanced Power Management
Advantage
1. Built-in whiteboard automatic correction function (patent No.: 201220680846.0)
2. Measurements port positioning function (Patent No.: 201220680847.5)
3. New optical structure to achieve a more stable measurement (Patent No.: 201220680441.7)
4. Existing market colorimeter most intuitive, fast and simple operation interface
5. Design in line with industry norms, good feel, easy to grasp, Steady body.
6. Clear and bright screen, large font display, intuitive chromaticity diagram,
color difference bias figure shows color simulation.
7. The number of independent national innovation patent intellectual property rights, to ensure that the instrument's leading position in the domestic color difference measurement, and to catch up with the international brand strength.
8. Advanced Power Management
9. High stability
10. High accuracy
Application :The colorimeter is applicable in textile, printing and dyeing, clothing, footwear, leather, chemicals, plastics, plastics, pigments, paints, inks, printing, metal, photography, toys, and other industry color quality control, color control, color analysis, sampletesting, production line testing, also suitable for injection molding, ink, paint, spray and other auxiliary color
