Universal Adjustable 3-12v Adapter
US$ 1 - 10
MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hylook
Model Number:
HL-P12-020
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
Hylook
Model Number
HL-P12-020
Output Type
DC
Connection
Plug In
Specifications
Universal Adjustable 3-12v adapter1.Input:110V-240V
2.Output:3V-12V adjustable
3.Use for:LED strip,Fan
4.Protection:OVP,SCP

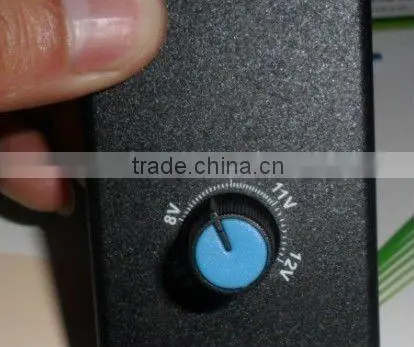

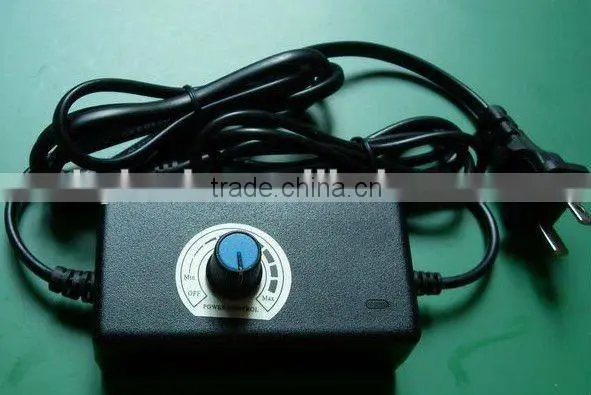

Universal Adjustable 3-12v adapter
Universal Adjustable 3-12v adapter power supply with adjustable voltage from 3V -12V (or you customize) for fan speed control,LED strip dimmable,Engin
Electrical Characteristics:
- AC input voltage ……100-240VAC
- Output ……… 3V to 12V voltage adjustable
- Input frequency ………47-63Hz
- AC inrush current(max.) …….20A/230V
- Line regulation (full load).......±0.5%
- Peak- to -peak ripple …….<500MV
- Working temperature………….0-35°C@100%,50°C@70% load
- Setup rise hold up time………100ms,50ms,20ms@240VAC input
- Strong made totally compatible part
- Over voltage protection………115%-135% rated output voltage
- Withstand voltage………I/P-O/P 3Kvac,1 minute
- Over load protection ………115%-135%fold back current limiting, Auto-recovery
- Input Condition ……… 100 to 240VAC 50/60 Hz 1A Max
- Input Rated Voltage ……… 100 to 240VAC
- Input Voltage Range ……… 90 to 264VAC
- Input Rated Frequency ………50/60Hz
- Input Frequency Range ……… 47Hz to 63Hz
- Inrush Current ……… 60A Max
- No Load Power Consumption ……… within 0.3W
- Efficiency ……… 80% Min
- Line Regulation……… ± 1%
- Load Regulation ……… ± 5%
- Over Shoot ………10% Max
- Ripple And Noise……1% Max
- Rising Time ……… 20ms Max At 115Vac
- Output Hold up Time ……… 8ms Min At 230Vac
- Protection ……… OCP OVP SCP OPP
- Dielectric Withstand Voltage ……… 3.75KV 5mA 60s
- Leakage Current ……… 0.25 mA At 230Vac
Environment:
- Operating Temperature: 0~40°C ,full load , normal operation
- Storage Temperature: -20~80°C with package
- Relative Humidity: 5%(0°C) ~90%(40°C) RH ,72 hours, full load,
Package included:
- 1x AC100-240V to DC 3V to 12V power adapter
Specification:
- Output Type:3-12V 1A -2A
- Input: 100-240V AC 50/60Hz
- Cable length: about 120CM
- Out put adaptor : 5.5mm x 2.1mm or according to your requirement
- Condition: Brand New 100%
- We have the Adapter for US/EU/UK/Australia
- 100% burn in test 4 hours,assure the quality:
Output Characteristic:
- Power Output:
Voltage |
Min. Load |
Max. Load |
Outpu range |
Output Power |
+3V -12Vdc |
0.2A |
1A |
3V -12V adjustable |
12W |
Advantages:
1. AC input power suitable for the world
2. Soft-start current can reduce the AC input impact efficiency
3. With short-circuit and overload protection
4. Compact size ,light weight
5. 100%full-load burning test
