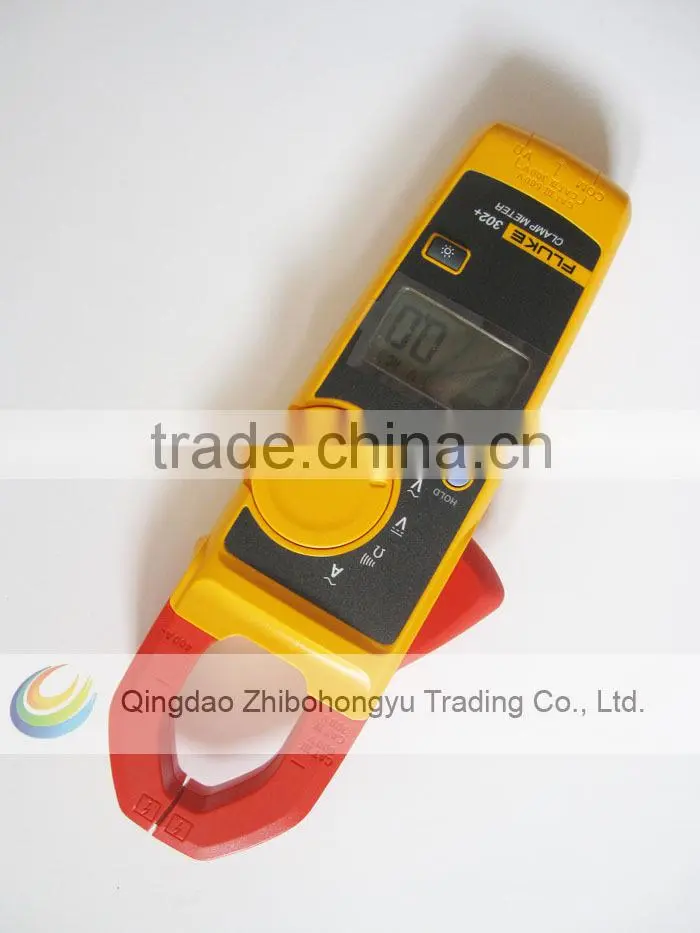

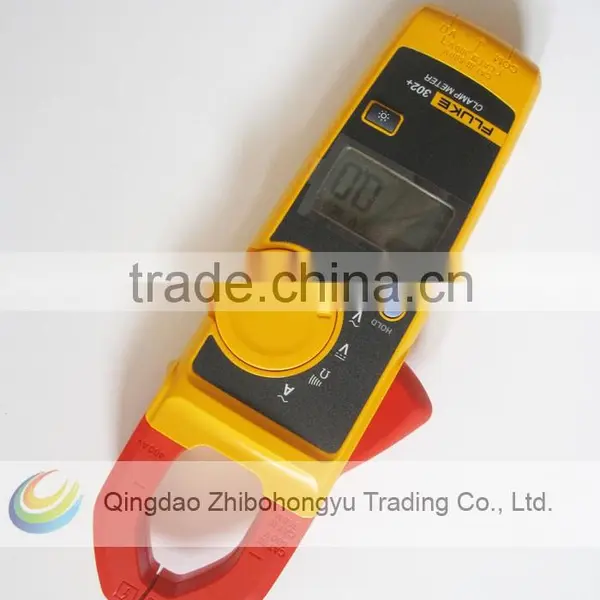

Help CenterFluke 302+, F302+ Digital Clamp Meter AC/DC Multimeter Tester
Related Products
-
HIOKI DT-4212 True RMS DIGITAL MULTIMETERUS$ 96 - 110MOQ: 1 Set -
DT-9860 Infrared Video Thermometers Infrared Visual Thermometers With TFT Color LCDUS$ 350 - 360MOQ: 1 Set
-
DT-8861 -50C-550C Professional High Temperature Infrared ThermometersUS$ 85 - 95MOQ: 1 Set
-
UNI-T ACA&DCA Leakage Current Clamp Meter MULTIMETER UT258A 600V 1mA AC/DCUS$ 120 - 130MOQ: 1 Set
-
SMART SENSOR AR300+ Digital Infrared TherometerUS$ 45 - 55MOQ: 1 Set
I.Feature:
New smaller size fits easily into tight places
Precise measurements with 1.8% basic accuracy
Resolution up to 0.01A and 0.1 V
Measures AC current to 400 A
Measures AC volts to 600 V
Measures DC volts to 600 V (Fluke 322 only)
Resistance measurement to 400 Ω
Continuity for quick checking of shorts
Automatic low battery indicator
Display hold function
Two year warranty
II.Specification:
Environmental Specifications
Operating Temperature
-10°C to +50°C
Storage Temperature
-10 ºC to +50 ºC
Operating Altitude
2,000 meters
Temperature De-rating
Add 0.1 x specified accuracy for each ºC above 28ºC or below 18ºC
Safety Specifications
Safety Rating
600V CAT III
Mechanical & General Specifications
Size
190 x 63 x 35 mm
Weight
230 g
Warranty
One years
Battery Life
100 hours typical (2 AAA carbon zinc)
Jaw Opening
25 mm
Specifications
Voltage DC
Range: 0 - 400 V (Fluke 322 only)
Resolution: 0.1 V
Range: 0 - 600 V (Fluke 322 only)
Resolution: 1 V
Accuracy: 1% ± 5 counts
Voltage AC
Range: 0 - 400 V
Resolution: 0.1 V
Range: 0 - 600 V
Resolution: 1 V
Accuracy: 1.2% ± 5 counts (50 - 400 Hz)
AC Response: Averaging
Current AC
Range: 0 - 400 A
Resolution: 0.1 A
Range: 0 - 40 A (Fluke 322 only)
Resolution: 0.01 A
Accuracy: 1.8% ± 5 counts (50 - 60 Hz)
Accuracy: 3.0% ± 5 counts (60 - 400 Hz)
AC Response: Averaging
Resistance
Range: 0 - 400 Ω
Resolution: 0.1 Ω
Accuracy: 1% ± 5 counts
Continuity
<= 30 Ω(beeps)
Package Include:

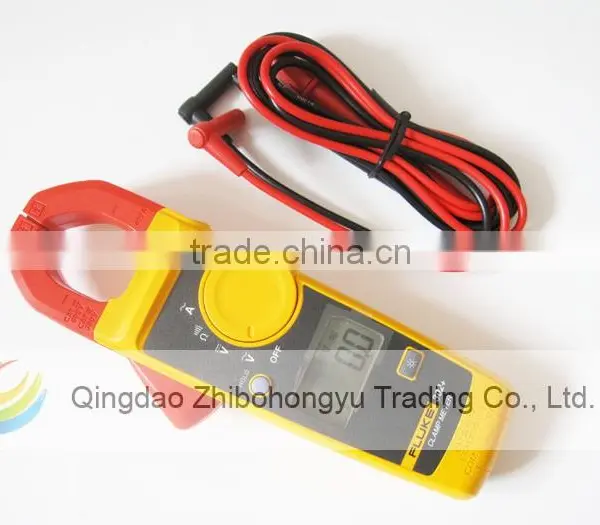

1 x Fluke 302 Clamp Meter
2 x Test leads
1 x Soft carring case
No battery,because of the transport company policy
