Specifications
1.AC Adapter 19V 2.1A for SAMSUNG2.input:AC100-240V -50-60Hz
3.output:DC 19V 2.1A, 40W
tection:OCP,OVP,SCP
replacement ac adapter for samsung mini laptop
1.Product details
- AC Input: AC, 100-240V, 50-60HZ
- Condition: 100% brand new and OEM AC adaper
- DC Output: 19V 2.1A 40W
- Connector:5.5*2.5mm
- Usage: Laptop Adapter
- Warranty: 1 Year
2.Fit Laptop Models
Samsung Series 9 Notebook
NP900X1A,NP900X1A-A01US,NP900X1A-A01,NP900X1AA01US
NP900X1B,NP900X1B-A01US,NP900X1B-A01,NP900X1BA01US
NP900X1B,NP900X1B-A02US,NP900X1B-A02,NP900X1BA02US
NP900X3A,NP900X3A-A02US,NP900X3A-A02,NP900X3AA02US
NP900X3A,NP900X3A-A03US,NP900X3A-A03,NP900X3AA03US
NP900X3A,NP900X3A-A05US,NP900X3A-A05,NP900X3AA05US
NP900X3A,NP900X3A-B01US,NP900X3A-B01,NP900X3AB01US
NP900X3A,NP900X3A-B02US,NP900X3A-B02,NP900X3AB02US
NP900X1B,NP900X1B-A01SE,NP900X1B-A01,NP900X1BA01SE
NP900X1B,NP900X1B-A01AU,NP900X1B-A01,NP900X1BA01AU
NP900X1B,NP900X1B-A01UK,NP900X1B-A01,NP900X1BA01UK
Samsung Series 5 Chromeboo Notebook:
XE500C21,XE500C21-A01US,XE500C21A01US
XE500C21,XE500C21-A03US,XE500C21A03US
XE500C21,XE500C21-A04US,XE500C21A04US
XE500C21,XE500C21-H01US,XE500C21H01US
XE500C21,XE500C21-H02US,XE500C21H02US
XE500C21,XE500C21-H04US,XE500C21H04US
Samsung Series 3:
Samsung Series 3 305U1A-A01
Samsung Series 3 305U1A-A02
Samsung Series 3 305U1A-A03
Samsung Series 3 305U1A-A04
Samsung Series 3 305U1A-A05
Samsung Series 3 NP305U1A
Samsung Series 3 NP305U1A-A01US
Samsung Series 3 NP305U1A-A02US
Samsung Series 3 NP350U2A
Samsung Series 3 NP350U2A-W01UB
3.Technical charateristics
Input characteristics
1. Input voltage
Rated Voltage: 100~240Vac
Variation Range: 80V~280Vac
2. Input Frequency
Rated Frequency: 50/60HZ
Variation Frequency: 47~63Hz
3. Input current
0.5Amax. at any input voltage and rated, DC output rated load.
4. Inrush Current
30Amax. @ 264Vac input
5. Efficiency:
80% min at 100Vac input and output rated .Load.
80% min at 240Vac input and output rated .Load
Output characteristics
1. Turn on delay time:
3S max. @ 100 Vac to 240 Vac input & Full load
2. Rise time
20mS max. @ Rated load
3. Hold up time:
5mS min. @ Full load &230Vac/50Hz input turn off at worst case
protection requirement:
1. Short circuit protection:
The power supply will be auto recovered when short circuit faults remove.
2. Over current Protection:
The power supply will be auto recovered when over current faults remove
3. Over Voltage Protection:
The power supply will auto recovered when faults remove 120%~150%.
Environmental requirement:
Operating Temperature: 0~40°C ,full load , normal operation.
Storage Temperature: -20~80°C with package
Relative Humidity: 10%(0°C) ~90%(40°C) RH
4.Warranty:
1. We provide 1 year warranty.
2. Normal Production according to the sample that confirmed by customers or customer's instruction. So please do give us right and confirmed instruction as well as check the sample carefully before you confirm.
3. Should you need any assistance with product problems or for warranty claims please feel free to contact us. You will receive a prompt reply from us

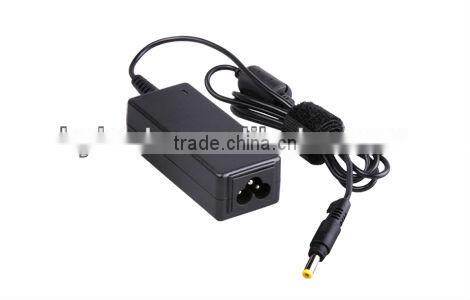

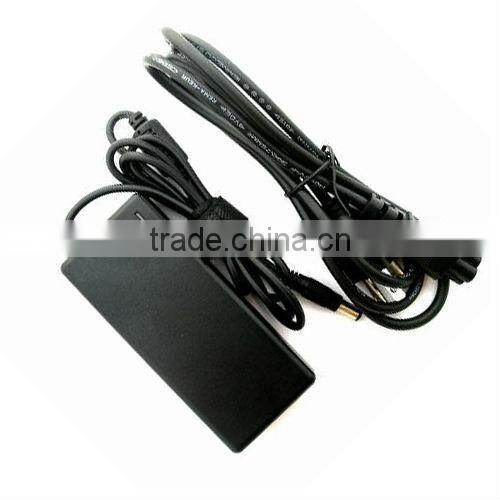

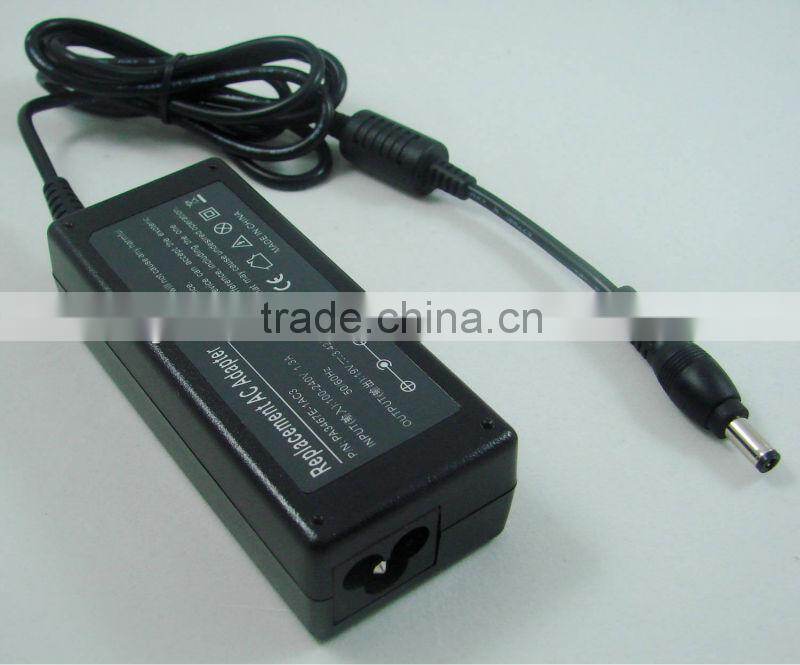

5.Photos:
