Specifications
1.ac dc power adapter for hard drive2.input:110v-240v
3.output 12v 1.5a 5v 1.5a
4.efficiency:>80%
5.warranty:1 year
ac dc power adapter 12v 5v for hard driver
1.Specifications:
Technical specifications :
- Molex 4 Pin connector
- 6/5/7 round pin interface
- suit for your Hard drive
- let your external hard drive work perfectly
- OEM and ODM available
- Ripple noise: 200mv
- Line regulation: +-5%
- load regulation: +-5%
- Input Power: 100VA
- Output voltage: 12V 5v
- Output current: 1.5a
2.Features:
1.High quality AC adapter
2.Material of shell: plastic
3.Wide range voltage: 100-270V
4.Circuit board: Half-wave, over-voltage, over-current, short circuit protecting.
3.Technical specifications:
Input characteristics:
1. Input voltage
Rated Voltage: 100~240Vac
Variation Range: 80V~280Vac
2. Input Frequency
Rated Frequency: 50/60HZ
Variation Frequency: 47~63Hz
3. Input current
0.5Amax. at any input voltage and rated, DC output rated load.
4. Inrush Current
30Amax. @ 264Vac input
5. Efficiency:
80% min at 100Vac input and output rated .Load.
80% min at 240Vac input and output rated .Load
Output characteristics
1. Turn on delay time:
3S max. @ 100 Vac to 240 Vac input & Full load
2. Rise time
20mS max. @ Rated load
3. Hold up time:
5mS min. @ Full load &230Vac/50Hz input turn off at worst case
protection requirement:
1. Short circuit protection:
The power supply will be auto recovered when short circuit faults remove.
2. Over current Protection:
The power supply will be auto recovered when over current faults remove
3. Over Voltage Protection:
The power supply will auto recovered when faults remove 120%~150%.
Environmental requirement:
Operating Temperature: 0~40°C ,full load , normal operation.
Storage Temperature: -20~80°C with package
Relative Humidity: 10%(0°C) ~90%(40°C) RH
4.Warranty:
1. We provide 1 year warranty.
2. Normal Production according to the sample that confirmed by customers or customer's instruction. So please do give us right and confirmed instruction as well as check the sample carefully before you confirm.
3. Should you need any assistance with product problems or for warranty claims please feel free to contact us. You will receive a prompt reply from us

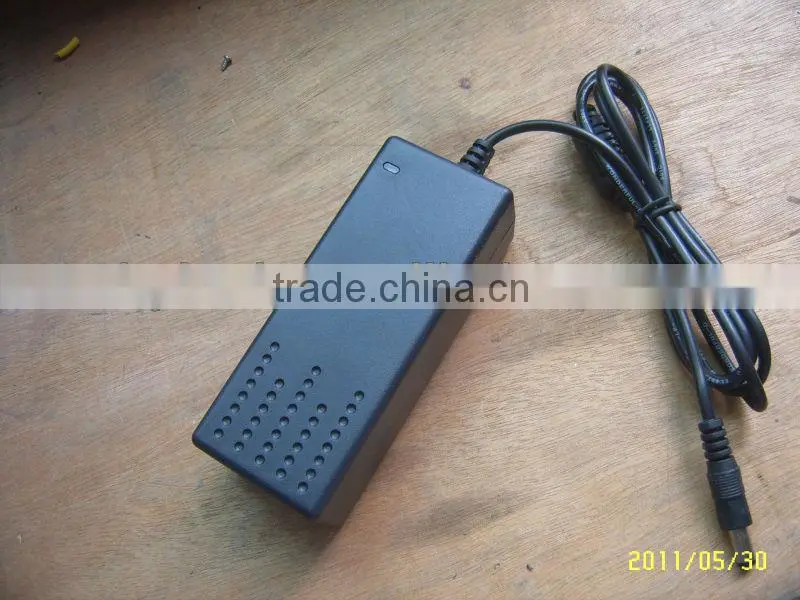

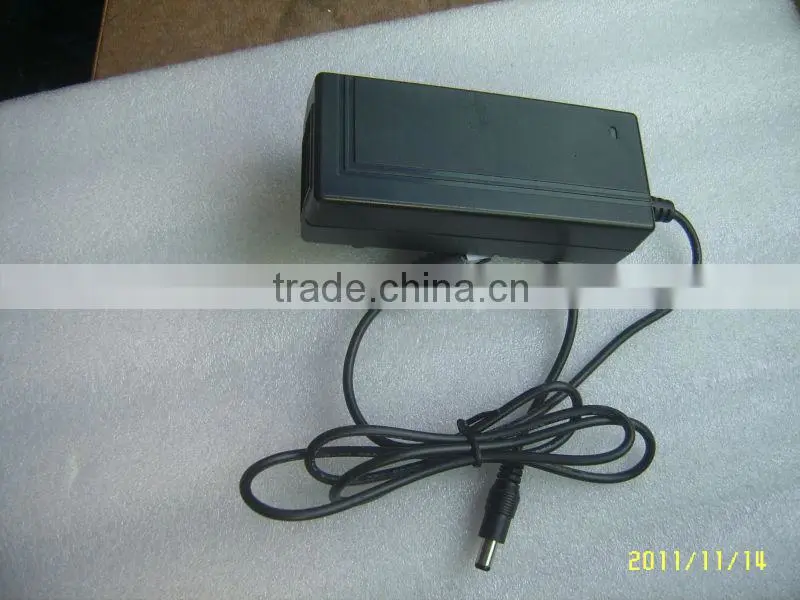

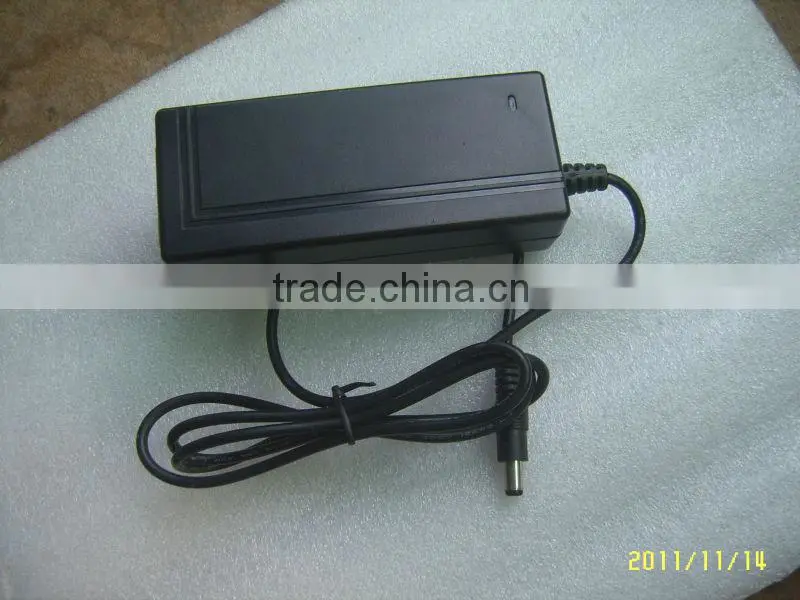

5.Photos:
