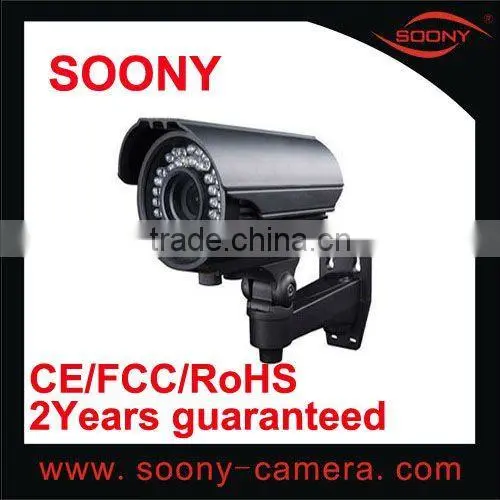

Sony Effio Cctv Camera High Resolution

Sony Effio Cctv Camera High Resolution thumbnail-1
Sony Effio Cctv Camera High Resolution photo-1
US$ 34.2 - 58.7 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SOONY or OEM
Model Number:
SY-IR5287MW
Contact Supplier Request Quote Chat Now
Shenzhen Isec Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SOONY or OEM
Model Number SY-IR5287MW
Type Analog Camera
Style Bullet Camera
Sensor CCD
Technology Infrared
Special Features Waterproof / Weatherproof

Specifications

effio cctv camera
100% cctv camera factory
Sony Effio cctv camera, high resolution
IP66 waterproof
CE/FCC/RoHS, 2Y warranty

Sony effio cctv camera High resolution



Specifications:



Model SY-IR5287MW SY-IR5286MW SY-IR5284MW SY-IR5280HMW SY-IR5280MW SY-IR5282MW SY-IR5283MW
Image Sensor 1/3" SONY ICX673AK CCD 1/3" SONY ICX639BK CCD 1/3" SONY ICX639BK CCD 1/3" SONY ICX633BK CCD 1/3" SONY ICX633BK CCD 1/3" SHARP RJ2321FA CCD 1/4" SHARP RJ2421FA CCD
Horizontal Resolution 700TV Lines Hi-sensitivity   Effio, ATR, OSD NR 600TV Line Hi-sensitivity, OSD 540TV Line Hi-sensitivity 480TV Line Hi-sensitivity 420TV Line   Hi-sensitivity 420TV Line Hi-sensitivity 420TV Line Hi-sensitivity
TV System PAL/NTSC
Effective Pixels PAL:976 (H)x494(V) NTSC:976 (H)x582 (V) PAL:795 (H)x596(V),       NTSC:811(H)x508 (V) PAL:752(H)x582(V) NTSC:768(H)x494(V)            PAL:500(H)x582(v)                         NTSC:510(H)X492(V)
IR LED    60pcs Ø5mm IR LEDs
IR project distance    50meters
Lens  standard: 4-9mm manual zoom lens
2.8-12mm lens are optional
Minimum Illumination    0 Lux/F2.0 (LED ON)
IR Status    Under 10 Lux by CDS
IR Power On    CDS Auto Control
Scanning System    NTSC:525 Lines,60 Field/sec,
   PAL:625 Lines 50 Field/sec
Sync System    Internal Synchronization
Gamma Characteristic 0.45
S/N Ratio =65dB (AGC OFF) =54dB (AGC OFF) =48dB (AGC OFF)
Electronic Shutter Time    NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec;
Video Output Composite Signal (1.0Vp-p, 75O), BNC
Gain Control(AGC    Auto
White Balance    Auto
Backlight Compensation    Auto
Operation Temperature    -10C~ +50C RH95% MAX
Storage Temperature    -20C~ +60C RH95% MAX
Waterproof        IP66
Power Supply    DC12V,400mA
Dimension 161(w) x 102(D) x94(H)mm
Weight 1.55kg
Camera Case Color    default: black
