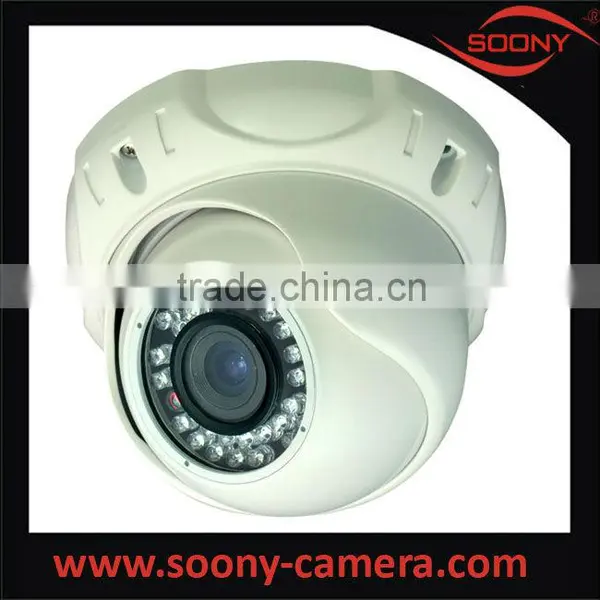

Vandalproof 700TVL CCTV Dome Camera
US$ 23 - 39
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SOONY or OEM
Model Number:
SY-IR3287DMW
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Camera for Car Number Plate Recognition CameraUS$ 105 - 115MOQ: 1 Piece -
Sharp Ccd 20m IR Range CCTV Board CameraUS$ 11.9 - 38.5MOQ: 1 Piece
-
Best Hidden Cameras for CarsNegotiableMOQ: 1 Piece
-
3.7mm Mini Hidden Camera/Pinhole Technology/Security CameraNegotiableMOQ: 1 Piece
-
License Plate Backup Camera/ Car CameraUS$ 105 - 115MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
SOONY or OEM
Model Number
SY-IR3287DMW
Type
Analog Camera
Style
Dome Camera
Sensor
Other, CCD, SONY 700TVL Effio CCD
Technology
Infrared
Special Features
Waterproof / Weatherproof
Specifications
CCTV Dome Camera-100% Camera Manufacturer
-700TVL Effio,CSD4140GG,960H CCD
-2.8-12/9-22mm varifocal lens
-Vadalproof,HD,CE

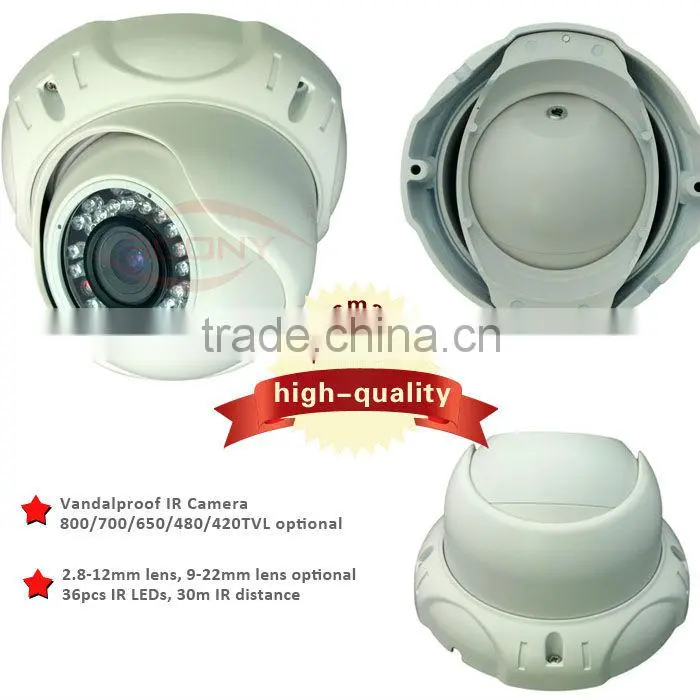

Vandalproof 700TVL CCTV Dome Camera
Main Features:
1,The CCD & DSP are original from SONY COP or SHARP COP
2,420/480/540/600/700 TV Lines optional, 600TV lines, 700TV lines built in OSD, controlled by cable.
700TVL is SONY Effio -E CCD, with Preset OSD, DWDR, ATR, NR function, make the image more natural, clear.
3,Fully weather, and dust proofed, to a rating of IP66 which make it ideal for outdoor use
4,Built-in infrared LED, may work under zero degree of illumination environment
5,36(f 0.5) LED IR illuminators view up to 30m
6,2.8-12mm lens with a wide angle
7,Color: Silver
8,Aluminum Alloy Housing.
9,DC12V Power supply
10,Easy to install
11,CE/FCC/RoSH approved.
Details:

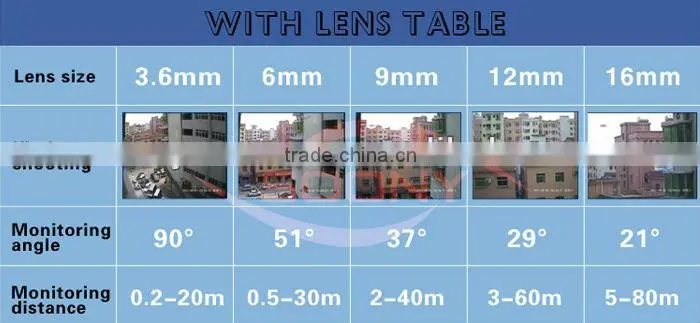

Lens and View Angle for your reference:
Specification:
| Model | SY-IR3057DMW | SY-IR3056DMW | SY-IR3054DMW | SY-IR3050HDMW | SY-IR3050DMW | SY-IR3052DMW | SY-IR3053DMW |
| Image Sensor | 1/3" SONY ICX673AK CCD | 1/3" SONY ICX639BK CCD | 1/3" SONY ICX639BK CCD | 1/3" SONY ICX633BK CCD | 1/3" SONY ICX633BK CCD | 1/3" SHARP RJ2321FA CCD | 1/4" SHARP RJ2421FA CCD |
| Horizontal Resolution | 700TV Lines Hi-sensitivity Effio, ATR, OSD NR | 600TV Lines Hi-sensitivity, OSD | 540TV Line Hi-sensitivity | 480TV Lines Hi-sensitivity | 420TV Lines Hi-sensitivity | 420TV Lines Hi-sensitivity | 420TV Lines Hi-sensitivity |
| TV System | PAL/NTSC | ||||||
| Effective Pixels | PAL:976 (H)× 494(V) NTSC:976 (H) ×582 (V) | PAL:795 (H)× 596(V), NTSC:811 (H) ×508 (V) | PAL:752(H)x582(V) NTSC:768(H)x494(V) | PAL:500(H)x582(v) NTSC:510(H)x492(v) |
|||
| IR LED | 36pcs Ø5mm IR LEDs | ||||||
| IR project distance | 30 meters | ||||||
| Lens | standard: 4-9mm manual zoom lens | ||||||
| 2.8-12mm manual zoom lens is optional | |||||||
| Minimum Illumination | 0 Lux/F2.0 (LED ON) | ||||||
| IR Status | Under 10 Lux by CDS | ||||||
| IR Power On | CDS Auto Control | ||||||
| Scanning System | NTSC:525 Lines,60 Field/sec, | ||||||
| PAL:625 Lines 50 Field/sec | |||||||
| Sync System | Internal Synchronization | ||||||
| Gamma Characteristic | 0.45 | ||||||
| S/N Ratio | ≥65dB (AGC OFF) | ≥54dB (AGC OFF) | ≥48dB (AGC OFF) | ||||
| Electronic Shutter Time | NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec; | ||||||
| Video Output | Composite Signal (1.0Vp-p, 75Ω), BNC | ||||||
| Gain Control(AGC) | Auto | ||||||
| White Balance | Auto | ||||||
| Backlight Compensation | Auto | ||||||
| Operation Temperature | -10C~ +50C RH95% MAX | ||||||
| Storage Temperature | -20C~ +60C RH95% MAX | ||||||
| Waterproof | IP66 | ||||||
| Power Supply | DC12V,400mA | ||||||
| Dimension | Ø119X83(H)mm | ||||||
| Camera Case Color | default: purple | ||||||
| white, black, silver, new grey are optional | |||||||
| weight | 0.8kg | ||||||
Packing(27pcs/carton):
Application :
Welcome to Visit SOONY!!!
Certificate:
