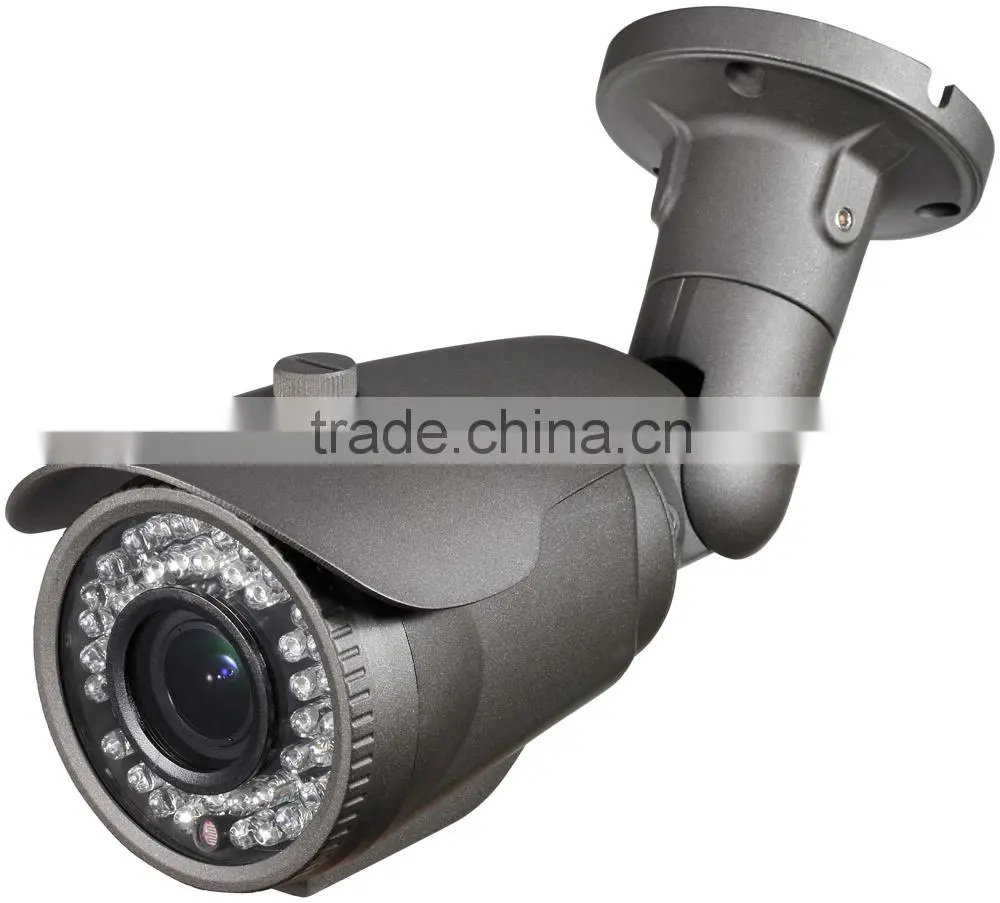

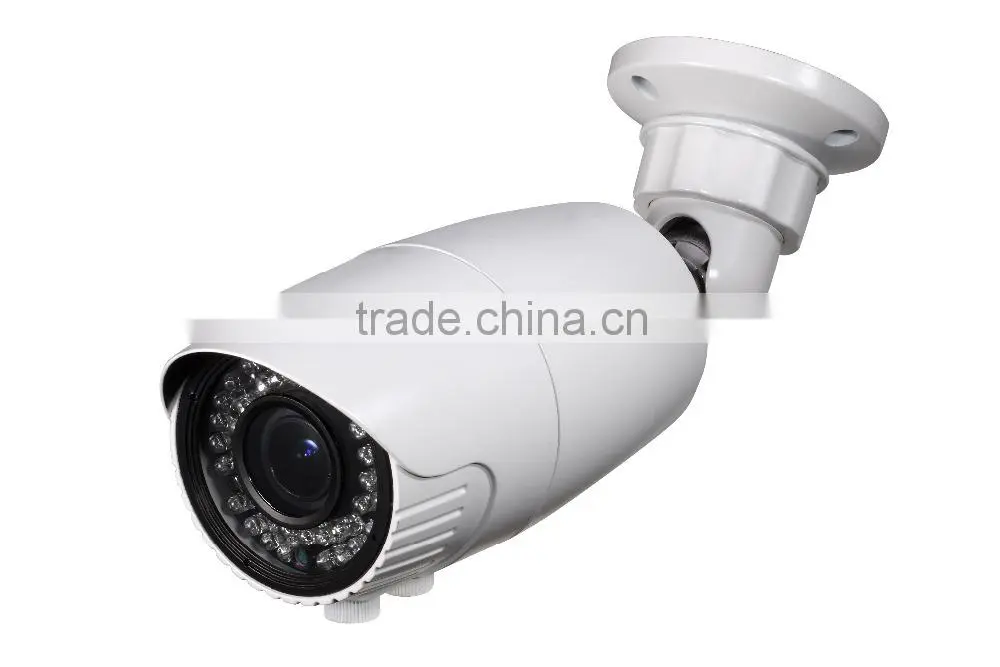

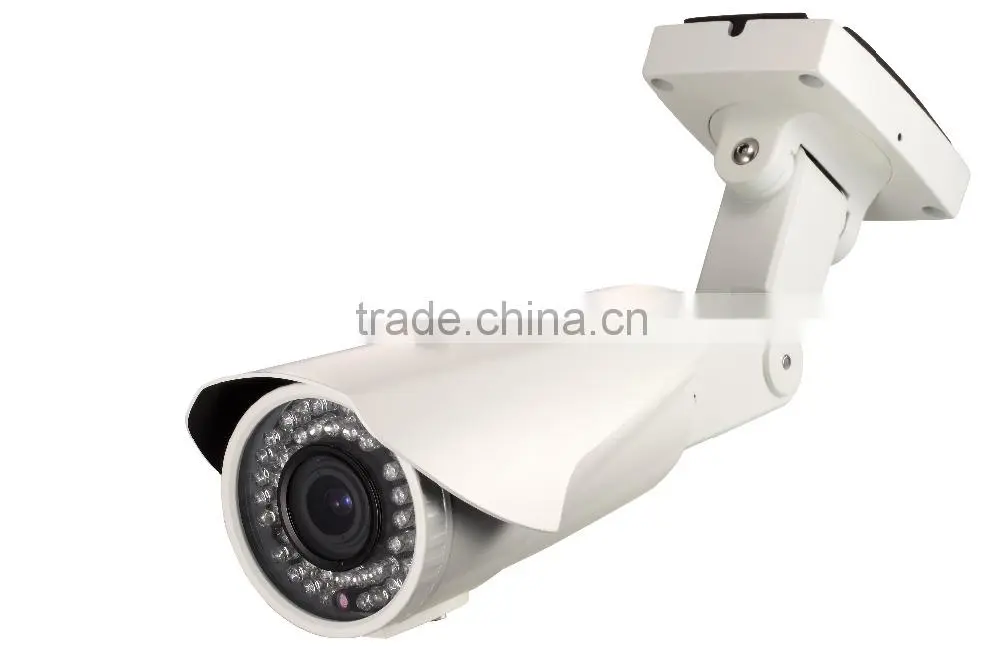

Outdoor Security Systems CCTV HD TVI camera
Features:
Specification:
| Model NO. | IC-LBMW40-EV7D | IC-LBMW40-EV9A | IC-LBMW40-EV2B | IC-LBMW40-EV2C |
| VIDEO | ||||
| Image Device | 1/4" 1MP AR0141 CMOS | 1/3" 1.3MP OV9750 CMOS | 1/2.7" 2MP OV2710 CMOS | 1/3" 2MP IMX322 CMOS |
| DSP | FH8530 | FH8532 | FH8531 | FH8531 |
| TVI Chip | TP2801 | |||
| TV System | PAL/NTSC | |||
| Effective Pixels | 1280(H)×720(V) , 1MP | 1280(H)×720(V) , 1MP | 1280(H)×960(V) , 1.3MP | 1984(H)*1225(V) 2MP |
| Scanning System | Progressive Scan | |||
| Synchronization | Internal | |||
| Image Resolution | 1280*720(720P) | 1280*720(720P) | 1280*960(960P) | 1920*1080(2MP) |
| Frame rate | PAL: 25fps 720P(1280×720); NTSC: 30fps 720P(1280×720) | |||
| Min. Illumination | Color: 1.0lux F1.2; B/W: 0 Lux(IR ON) | |||
| S/N Ratio | >50dB | |||
| LENS | ||||

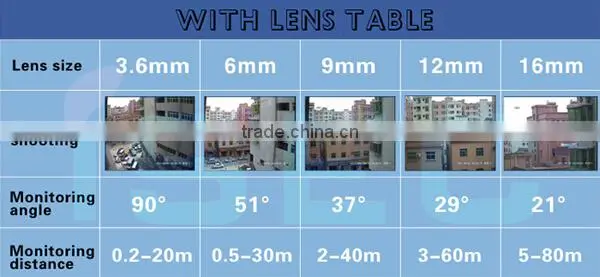

| Focal Length | 2.8~12mm lens | |||
| 6~15/9~22mm lens option | ||||
| IR-CUT | 3MP IR filter cut | |||
| OPERATIONAL(OSD MENU) | ||||
| Day & Night | Auto | AUTO /COLOR /B/W /EXT | ||
| D-WDR | NA | OFF/ON/AUTO | ||
| Noise Reduction | NA | 2DNR | 3DNR(Low, Middle, High,OFF) | |
| Back Light | Auto | On/Off | ||
| Auto Gain Control | Auto | Low, Middle, High,OFF | ||
| Defog | NA | OFF / ON | ||
| Motion Dectection | NA | ON/OFF , 4 ZONE | ||
| Sense Up | NA | |||
| Digital zoom | NA | 62x | ||
| Pricacy Mask | NA | ON/OFF , 8 ZONE | ||
| Electronic Shutter Speed | Auto | 1/25(1/30) s to 1/50,000 s | ||
| White Balance | Auto | White Balance Auto/ Manual/AWC-SET | ||
| Brightness | NA | Adjustable | ||
| Mirror | NA | ON/OFF | ||
| Sharpness | NA | Adjustable | ||
| OSD Language | NA | Simplified Chinese, traditioanl Chinese, English, Russian Turkish,Dutch ,portuguese, spanish.Italian,French, German,Polish | ||
| General | ||||
| Infrared LED | 42pcs Ø5mm IR LEDs | |||
| IR Distance | about 40 Meters | |||
| Infrared Spectrum | 850nm | |||
| Input Current | 400mA | |||
| Adapter Requirement | DC 12V, 1A | |||
| Water-proof | IP66 | |||
| MECHANICAL | ||||
| Color | White case | |||
| Bracket | / | |||
| Dimensions | Ø75X302(L)mm | |||
| Net Weight | 1kg (Volume: 1.78kg)/pcs | |||
| ENVIRONMENTAL | ||||
| Operation Temperature | -10℃~ +50℃ | |||
| Storage Temperature | -20℃~ +60℃ | |||

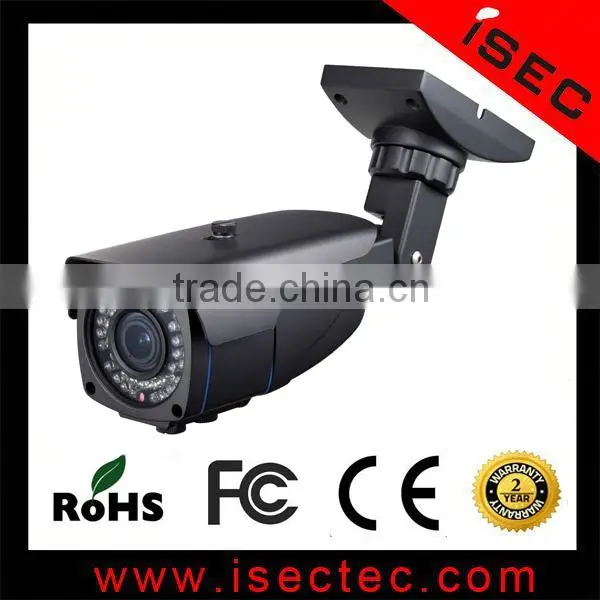

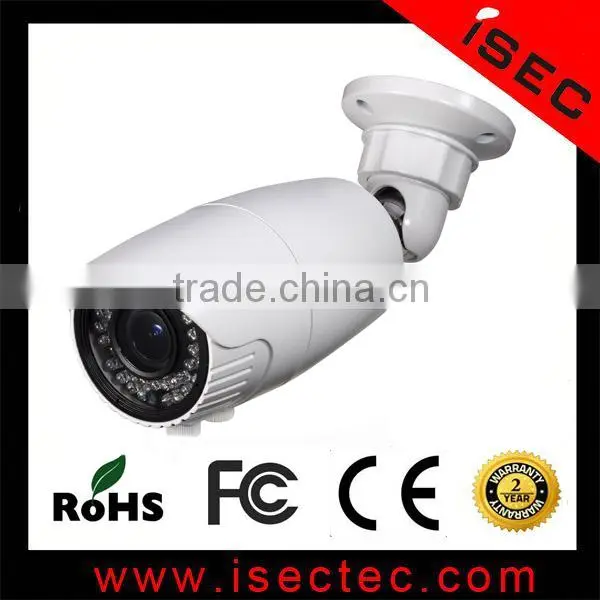

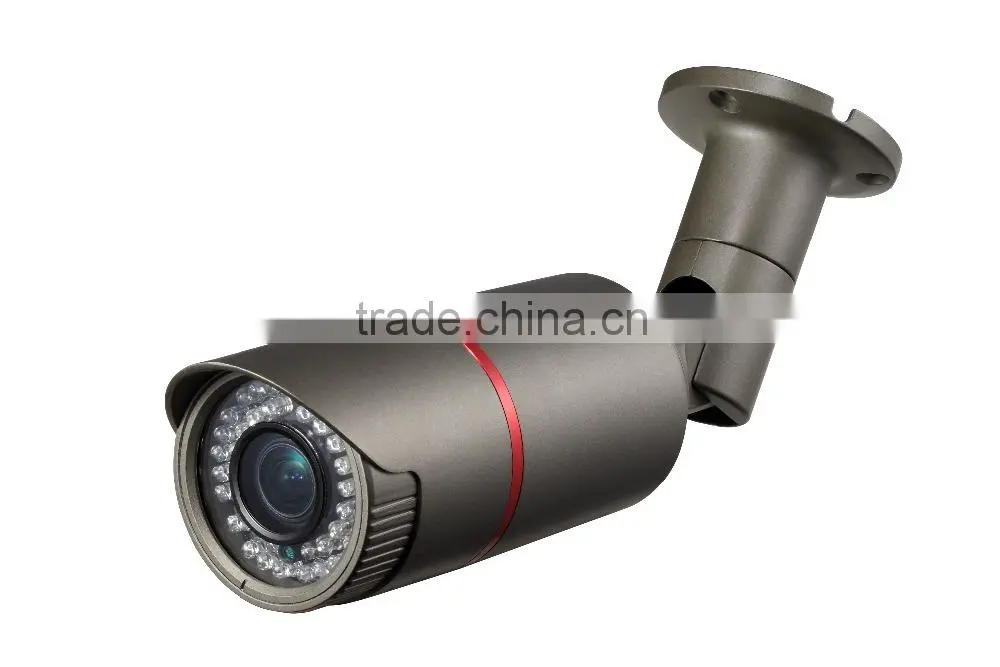

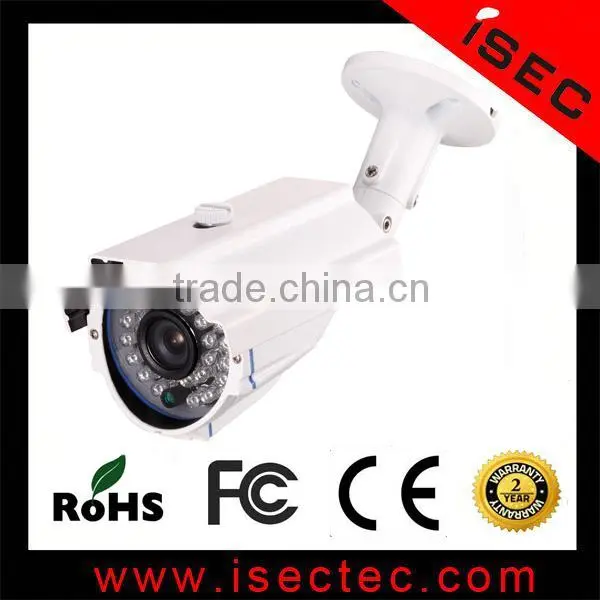

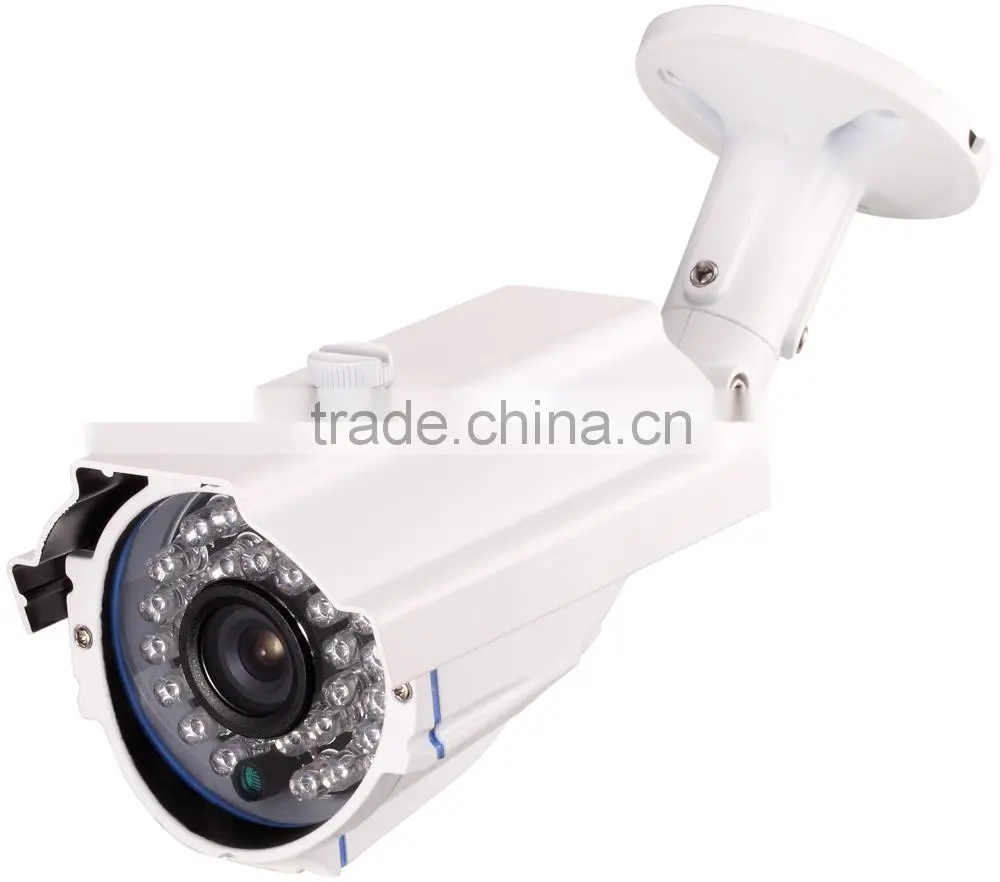

Outdoor Security Systems CCTV HD TVI camera
Outdoor Security Systems CCTV HD TVI camera
Outdoor Security Systems CCTV HD TVI camera

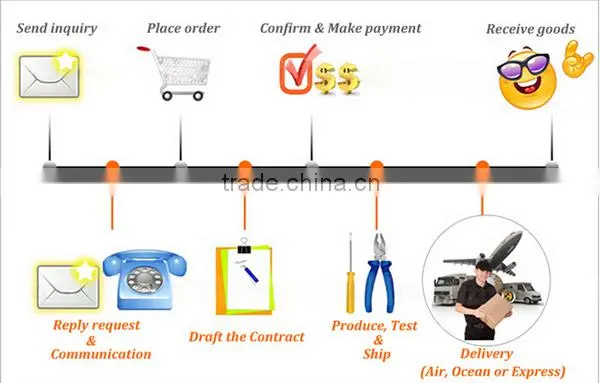

How to order from us?
