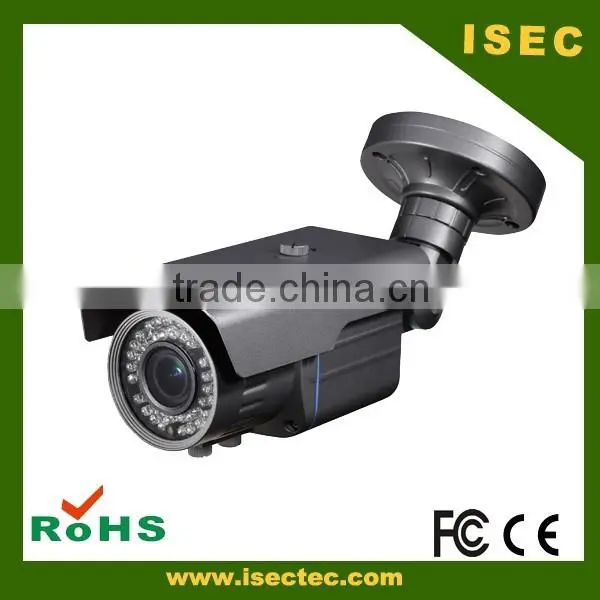

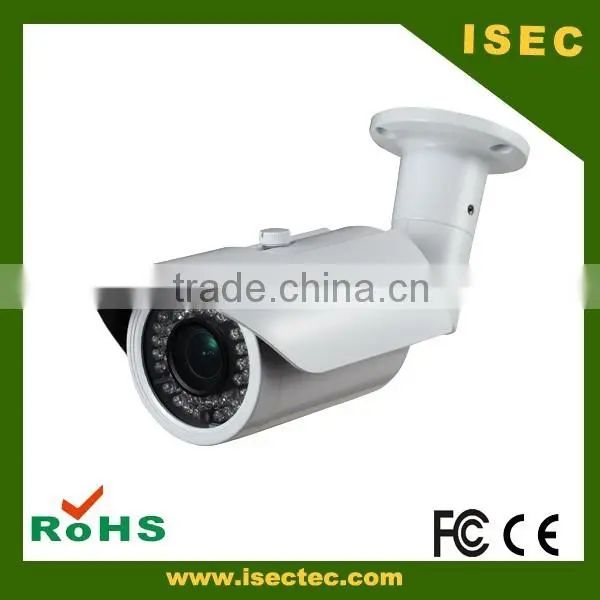

Outdoor 720P 1MP TVI Camera with IR-CUT Filter IR Array LEDs Better than HD-SDI HD-CVI TVI Camera
Features:
1MP TVI camera
Waterproof IR camera
3.6mm board lens
2.8/6mm lens are optional
36pcs Ø5mm IR LEDs
IR distance:30m
0 lux with IR on
waterproof:IP66
Specification:
Model NO. |
IC-LBW30-EV7 |
IC-LBW30-EV7B |
IC-LBW30-EV2 |
VIDEO | |||
Image Device |
1/4" 1MP AR0141 CMOS |
1/3" 1.3MP AR0130 CMOS |
1/3" 2MP IMX222 CMOS |
DSP |
HD8060 |
HD8060 |
NVP2421 |
TVI Chip |
TP2801 |
||
TV System |
PAL/NTSC |
||
Effective Pixels |
1280(H)×720(V) , 1MP |
1280(H)×720(V) , 1MP |
1984(H)*1225(V) 2MP |
Scanning System |
Progressive Scan |
||
Synchronization |
Internal |
||
Image Resolution |
1280*720(720P) |
1280*720(720P) |
1920*1080(2MP) |
Frame rate |
PAL: 25fps 720P(1280×720); NTSC: 30fps 720P(1280×720) |
||
Min. Illumination |
Color: 1.0lux F1.2; B/W: 0 Lux(IR ON) |
||
S/N Ratio |
>50dB |
||
LENS | |||
Focal Length |
6mm board lens, 3.6/8mm option |
||
IR-CUT |
3MP IR filter cut |
||
OPERATIONAL(OSD MENU) | |||
Day & Night |
Auto |
AUTO /COLOR /B/W /EXT |
|
D-WDR |
NA |
OFF/ON/AUTO |
|
Noise Reduction |
NA |
3DNR(Low, Middle, High,OFF) |
|
Back Light |
Auto |
On/Off |
|
Auto Gain Control |
Auto |
Low, Middle, High,OFF |
|
Defog |
NA |
OFF / ON |
|
Motion Dectection |
NA |
ON/OFF , 4 ZONE |
|
Sense Up |
NA |
||
Digital zoom |
NA |
62x |
|
Pricacy Mask |
NA |
ON/OFF , 8 ZONE |
|
Electronic Shutter Speed |
Auto |
1/25(1/30) s to 1/50,000 s |
|
White Balance |
Auto |
White Balance Auto/ Manual/AWC-SET |
|
Brightness |
NA |
Adjustable |
|
Mirror |
NA |
ON/OFF |
|
Sharpness |
NA |
Adjustable |
|
OSD Language |
NA |
Simplified Chinese, traditioanl Chinese, English, Russian Turkish,Dutch ,portuguese, spanish.Italian,French, German,Polish |
|
General | |||
Infrared LED |
36pcs Ø5mm IR LEDs |
||
IR Distance |
about 30 Meters |
||
Infrared Spectrum |
850nm |
||
Input Current |
400mA |
||
Adapter Requirement |
DC 12V, 1A |
||
Water-proof |
IP66 |
||
MECHANICAL | |||
Color |
Black / Color case |
||
Bracket |
/ |
||
Dimensions |
100(W) x65(H) x71(D)mm |
||
Net Weight |
0.5kg/pcs |
||
ENVIRONMENTAL | |||
Operation Temperature |
-10℃~ +50℃ |
||
Storage Temperature |
-20℃~ +60℃ |
||
Some functions of 1MP TVI camera:
Applications of 1MP TVI camera :
