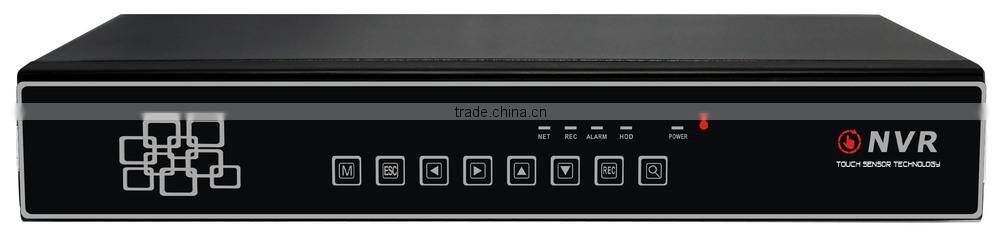

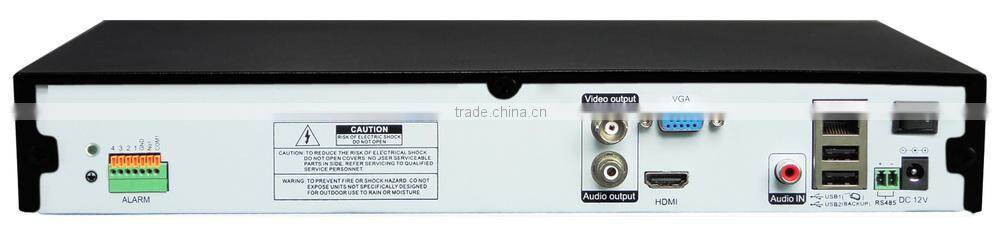

H.264 DSP Hi3515A 8ch POE NVR 1080P

H.264 DSP Hi3515A 8ch POE NVR 1080P thumbnail-1
H.264 DSP Hi3515A 8ch POE NVR 1080P thumbnail-2
H.264 DSP Hi3515A 8ch POE NVR 1080P thumbnail-3
H.264 DSP Hi3515A 8ch POE NVR 1080P thumbnail-4
H.264 DSP Hi3515A 8ch POE NVR 1080P photo-1
H.264 DSP Hi3515A 8ch POE NVR 1080P photo-2
H.264 DSP Hi3515A 8ch POE NVR 1080P photo-3
H.264 DSP Hi3515A 8ch POE NVR 1080P photo-4
US$ 74 - 92 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ISEC or OEM
Model Number:
IC-NVR3008P
Contact Supplier Request Quote Chat Now
Shenzhen Isec Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ISEC or OEM
Model Number IC-NVR3008P

H.264 DSP Hi3515A  8ch POE NVR 1080P



Product Description

 H.264 DSP Hi3515A 8ch POE NVR 1080P

 H.264 DSP Hi3515A 8ch POE NVR 1080P

 H.264 DSP Hi3515A 8ch POE NVR 1080P

Specification:



Model

IC-NVR3004P

 IC-NVR3008P

Main Processor

Hi3515A

Hi3515A

Operating system

Embedded LINUX OS

Video compression format

H.264

IP camera input

4ch channel

8ch channel

Operation Mode

live view, record, playback, backup, network

HDMI output

1 channel

VGA output

1 channel

Video Input

4×(1280*720)
+sub[960*576]
+4Ref.+4Play
4ch 1.0MP IP Camera

8×(1280*960)
+sub[640*480]
+4Ref.+1Play
8ch 1.3MP IP Camera

4×(1280*960)
+sub[960*576]
+1Ref.+4Play
4ch 1.3MP IP Camera

8×(1280*1080)
+sub[640*480]
+2Ref.+1Play
8ch 2.0MP IP Camera

4×(1920*1080)
+sub[960*576]
+4Ref.+1Play
4ch 2.0MP IP Camera

8×(720*576)
+sub[352*288]
+2Ref.+8Play
8ch D1 IP Camera

1×(1920*1080)
+sub[960*576]
+4Ref.+1Play
4ch 2.0MP IP Camera

8×(1280*720)
+sub[960*480]
+1Ref.+4Play
8ch 1.0MP IP Camera

4×(720*576)
+sub[352*288]
+4Ref.+4Play
4ch D1 IP Camera

8×(1280*960)
+sub[720*576]
+2Ref.+1Play
8ch 1.3MP IP Camera

/

8×(1920*1080)
+sub[720*576]
+1Ref.+1Play
8ch 2.0MP IP Camera

Recording Playback Quality

4ch playback in 4ch
960P/720P mode;
1ch 1080P playback in
4ch 1080P mode.

4ch playback in 8ch
720P mode;
1ch playback in 8ch
1080P/960P mode.

Record resolution

5MP/3MP/1080P/960P/720P/D1/HD1/CIF

Recording model

Manual/Schedule/Motion Detection/alarm

Recording Search

Time Point / Calendar / Event / Channel

Audio Input

4ch IPC Composite Audio Input

8ch IPC Composite Audio Input

Audio Output

1CH, RCA (2.0Vp-p, 1KΩ)

Two-way Talk

1 channel Input( Linear electrical level , impedance : 1kΩ), 1 channel Output, RCA

Alarm Input/Output

N/A

Search method

Time, Event, Channels and Calendar

Display Split

1/4/16/25 channel

1/4/9/16/25/36 channel

NETWORK protocol

TCP/IP,UDP,HTTP,DDNS,SMTP(SSL),LAN,DHCP,PPPOE, NTP, WIFI, 3G

Network

RJ45 10M / 100M / 1000M adaptive Ethernet port

Backup

HDD, USB Flash Disk, USB DVD-RW

USB

3*USB2.0 port

HDD

1pcs SATA HDD, support max 4TB HDD

ESATA port

No

Power supply

48V, 2A

48V, 2.5A

power consumption(without HDD)

≤50W

Operation temperature

0℃-+55℃

Operation humidity

10%-90%

Dimension(W*D*H)

260*220*43mm

Weight(net/gross weight)

1.5/2.6kg(without HDD)

Outside Carton

10 pcs/carton. 525mm×455mm×365mm; Weight:25Kg



Packaging & Shipping

 H.264 DSP Hi3515A 8ch POE NVR 1080PH.264 DSP Hi3515A 8ch POE NVR 1080P

Our Services







♦ China Factory Security Manufacturer. 9 Years experience, Supply Cctv CCD / CMOS camera, HD-SDI camera, IP camera, Mini Camera, PTZ camera, Cctv DVR, NVR, Cable, BNC, Balun, Adaptor etc.







♦ Quality Control. Strictly tested before packing, More than 12 hours aging before sending,Ce,Fcc,Rohs.







♦ Competitive Price. Factory price (EXW), More favorable price for big quantity.







♦ Technical support. Provide all-around technical support and counselling all the time.







♦ MOQ. 1 piece. Suggest our clients test sample first before bulk order.





Company Information

 H.264 DSP Hi3515A 8ch POE NVR 1080PH.264 DSP Hi3515A 8ch POE NVR 1080P

FAQ



♦ Warranty. 2 years warranty, Free repairment within 2 years.







♦ Delivery. 3-4 working days for sample order,5-7 working days for bulk order.







♦ Payment. Accept T/T, Western Union, Paypal, Escrow, L/C, B/L. ect .







♦ ODM/OEM,Logo Print. Accept special design,customize specification; Free logo silk print service, Customize retail boxes.







♦ Thanks for viewing, Welcome to inquiry us :)
