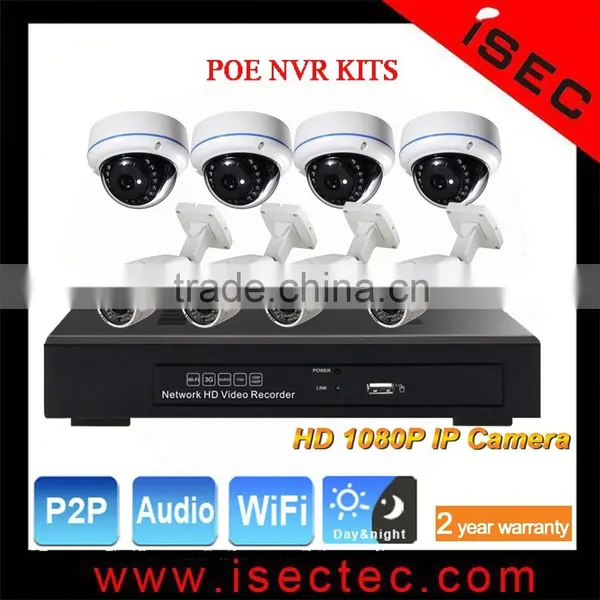

DIY Security system NVR Kit for indoor or outdoor ip camera for house or shop safety reviewing live video by mobile phone
| What's the main features about our ip camera? |

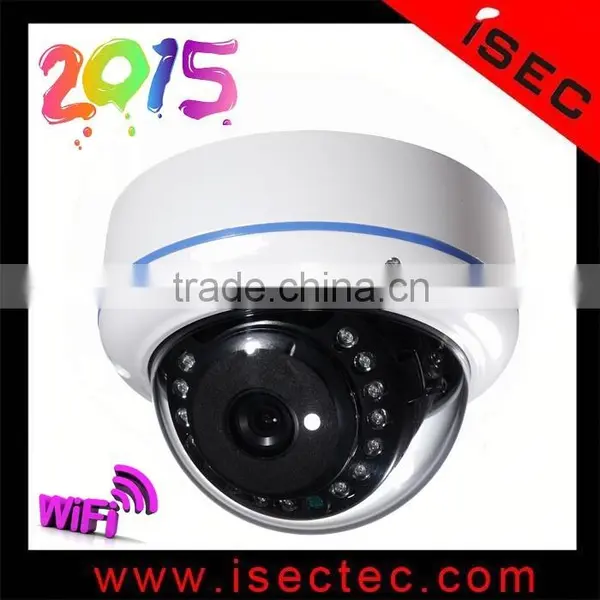

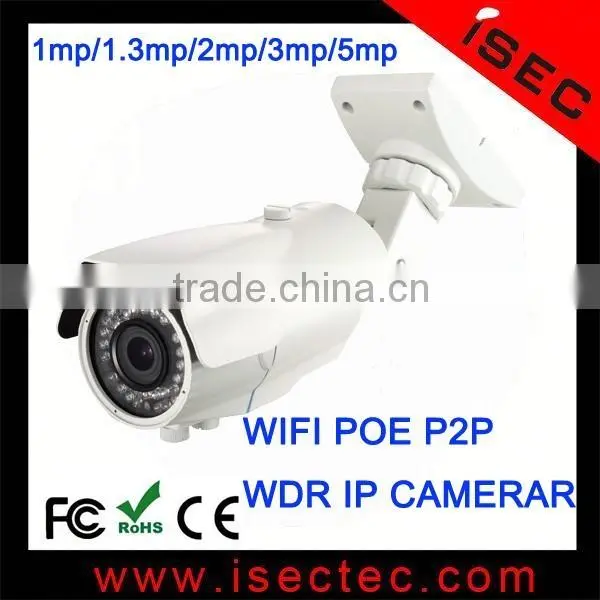

♦ DIY Security system NVR Kit for indoor or outdoor ip camera for house or shop safety reviewing live video by mobile phone

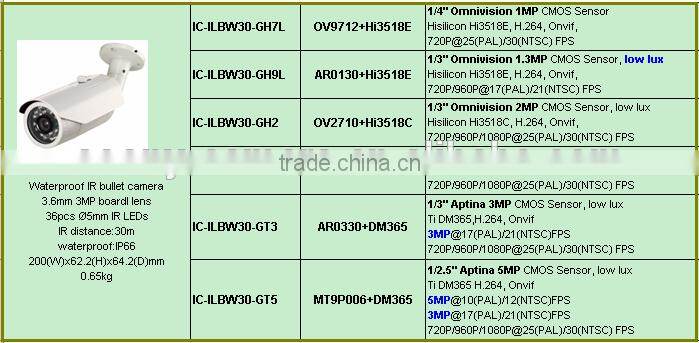

♦ Solution: 1/4" Omnivision 1MP CMOS Sensor,Hisilicon Hi3518E;1/3" Omnivision 1.3MP CMOS Sensor,Hisilicon Hi3518E;1/3" Omnivision 2MP CMOS Sensor, low lux Hisilicon Hi3518C;
♦ 3.6mm 3 Megapixels fixed lens
♦ H.264 / MJPEG compression Optional
♦ 1MP (720P):1280×720@25fps 1.3MP (960P):1280×960@25fps, 2MP(1080P):1920x1080@25fps , ONVIFV 2.0 Compliant
♦ Supports P2P function,no need set up router
♦ Supports IP changes and cross-network monitoring
♦ IR Night Vsion distance: 20M (2pcs array IR leds)
♦ DC12V or Power Over Ethernet (PoE IEEE802.3af)
♦ High Quality Cctv Cameras' manufacturer and supplier
| What's the specification about our ip camera? |

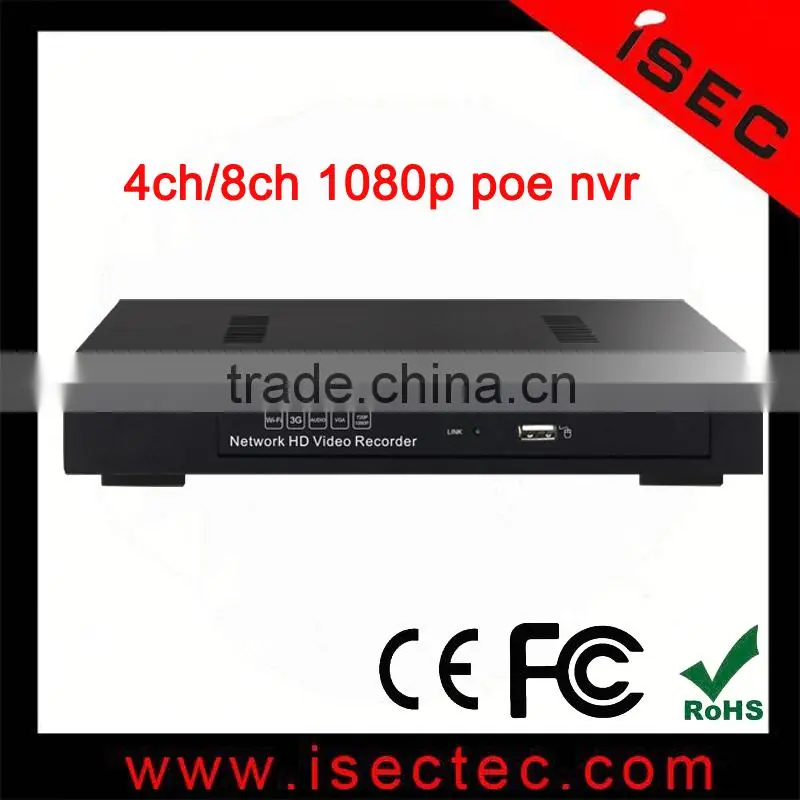

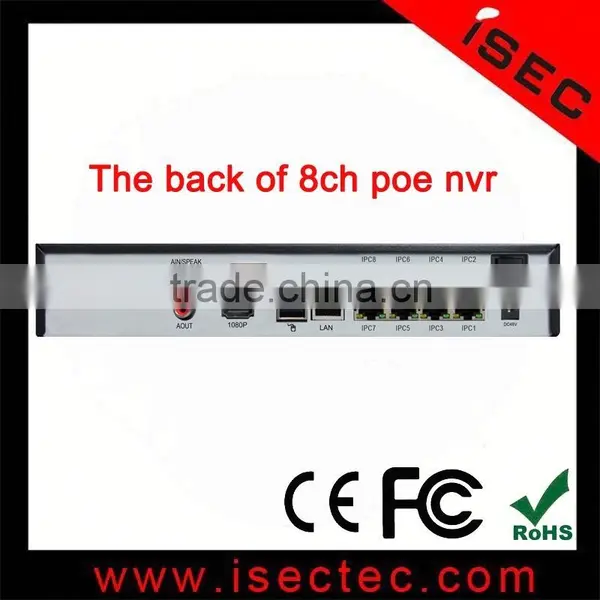

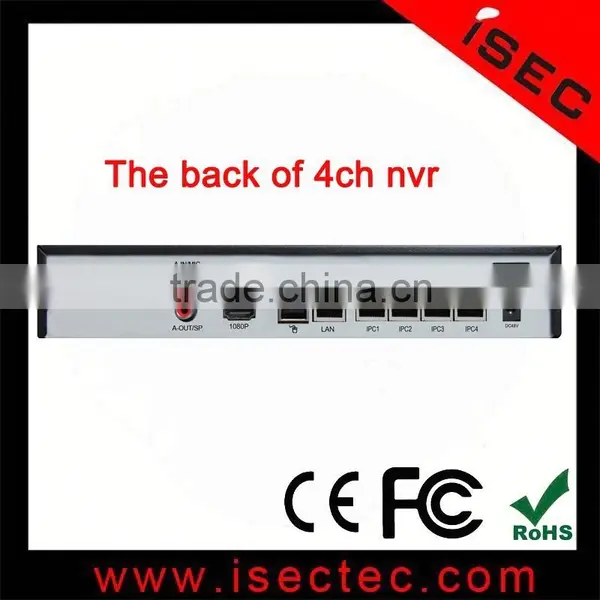

The nvr of DIY Security system NVR Kit for indoor or outdoor ip camera for house or shop safety reviewing live video by mobile phone.
Model |
IC-NVR3004P |
IC-NVR3008P |
Main Processor |
Hi3515A |
Hi3515A |
Operating system |
Embedded LINUX OS |
|
Video compression format |
H.264 |
|
IP camera input |
4ch channel |
8ch channel |
Operation Mode |
live view, record, playback, backup, network |
|
HDMI output |
1 channel, resolution: 1080P, 720P, 1440x900, 1280x1024, 1024x768,800x600 |
|
VGA output |
1 channel, resolution: 1080P, 720P, 1440x900, 1280x1024, 1024x768,800x600 |
|
Live view channel |
4ch 1080P simultaneously |
8ch 1080P simultaneously |
Record channel |
4ch 1080P simultaneously |
8ch 1080P simultaneously |
Playback channel |
4ch 960P or 1ch 1080P simultaneously |
4ch 720P or 1ch 1080P simultaneously |
Record resolution |
1080P/960P/720P/D1/HD1/CIF |
|
Recording model |
Manual/Schedule/Motion Detection/alarm |
|
Recording Search |
Time Point / Calendar / Event / Channel |
|
Audio Input |
4ch IPC Composite Audio Input |
8ch |
Audio Output |
1CH, RCA (2.0Vp-p, 1KΩ) |
|
Two-way Talk |
1 channel Input( Linear electrical level , impedance : 1kΩ), 1 channel Output, RCA |
|
Alarm Input |
N/A |
|
Alarm Output |
N/A |
|
Search method |
Time, Event, Channels and Calendar |
|
Display Split |
1/4/16/25 channel |
1/4/9/16/25/36 channel |
NETWORK protocol |
TCP/IP,UDP,HTTP,DDNS,SMTP(SSL),LAN,DHCP,PPPOE, NTP, WIFI, 3G |
|
Network |
RJ45 10M / 100M / 1000M adaptive Ethernet port |
|
Backup |
HDD, USB Flash Disk, USB DVD-RW |
|
USB |
3*USB2.0 port |
|
HDD |
1pcs SATA HDD, support max 4TB HDD |
|
eSATA port |
No |
|
Power supply |
48V, 2A |
48V, 2.5A |
power consumption(without HDD) |
≤50W |
|
Operation temperature |
0℃-+55℃ |
|
Operation humidity |
10%-90% |
|
Demension(W*D*H) |
260*220*43mm |
|
Weight(net/gross weight) |
1.5/2.6kg(without HDD) |
|
| Where can be used the ip cameras? |
| Packaging and shipping. |
| Why choose US? |
♦ China Factory Security Manufacturer. 9 Years experience, Supply Cctv CCD / CMOS camera, HD-SDI camera, IP camera, Mini Camera, PTZ camera, Cctv DVR, NVR, Cable, BNC, Balun, Adaptor etc.
♦ Quality Control. Strictly tested before packing, More than 12 hours aging before sending,Ce,Fcc,Rohs.
♦ Competitive Price. Factory price (EXW), More favorable price for big quantity.
♦ Technical support. Provide all-around technical support and counselling all the time.
♦ MOQ. 1 piece. Suggest our clients test sample first before bulk order.
| Company View. |
| Our certification. |
| FAQ |
♦ Warranty. 2 years warranty, Free repairment within 2 years.
♦ Delivery. 3-4 working days for sample order,5-7 working days for bulk order.
♦ Payment. Accept T/T, Western Union, Paypal, Escrow, L/C, B/L. ect .
♦ ODM/OEM,Logo Print. Accept special design,customize specification; Free logo silk print service, Customize retail boxes.
♦ Thanks for viewing, Welcome to inquiry us :)

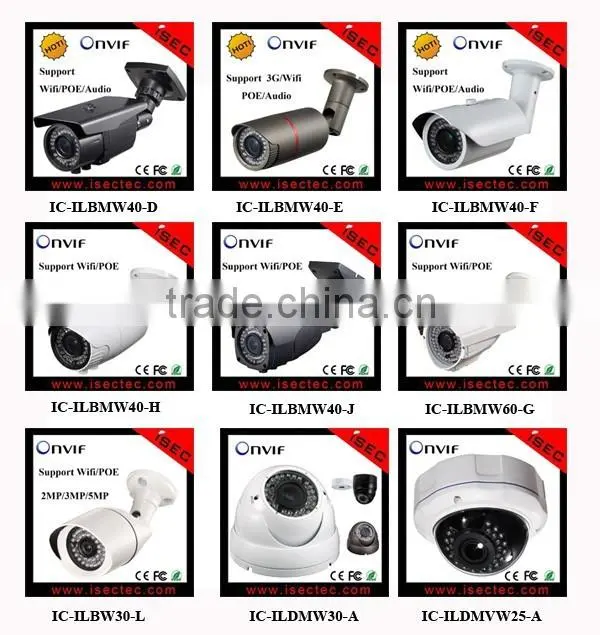

| Other related ip cameras. |
Thank you for noticing about DIY Security system NVR Kit for indoor or outdoor ip camera for house or shop safety reviewing live video by mobile phone . Any questions contact me freely.
