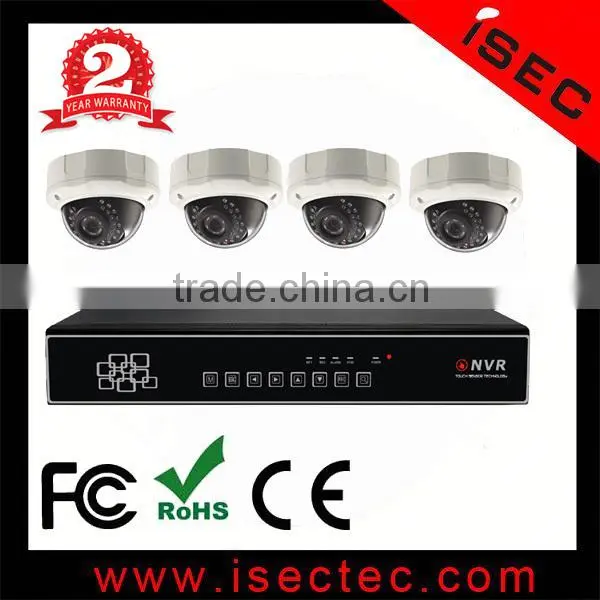

New Product, ISEC 4CH P2P & POE NVR Kit, Megapixel HD CCTV Camera System
US$ 150 - 200
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ISEC or OEM
Model Number:
IC-ILBW30-LH7L + IC-NVR1004
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3G WIFI Onvif Mini Portable P2P 1080P Mini 8CH NVR & 4CH Mini NvrUS$ 29 - 37MOQ: 1 Piece -
Small 4ch/8ch 1080p Super Mini Nvr for ip Securiry SystemNegotiableMOQ: 1 Set
-
New Products for 2015, 4ch/8ch P2P ONVIF POE NVRNegotiableMOQ: 1 Piece
-
1080p Poe Nvr With 4ch or 8ch Poe Port for Cctv CamerasNegotiableMOQ: 1 Set
-
New Product 4ch Megapixel Security System With 4pcs 1080p ip Cameras and 1pcs 4ch Poe NvrNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
ISEC or OEM
Model Number
IC-ILBW30-LH7L + IC-NVR1004
Type
Digital Camera
Style
Bullet Camera
Sensor
CMOS
Technology
NetWork
Special Features
Waterproof / Weatherproof
Product Description
New Product, ISEC 4CH P2P & POE NVR Kit, Megapixel HD CCTV Camera System
Features:

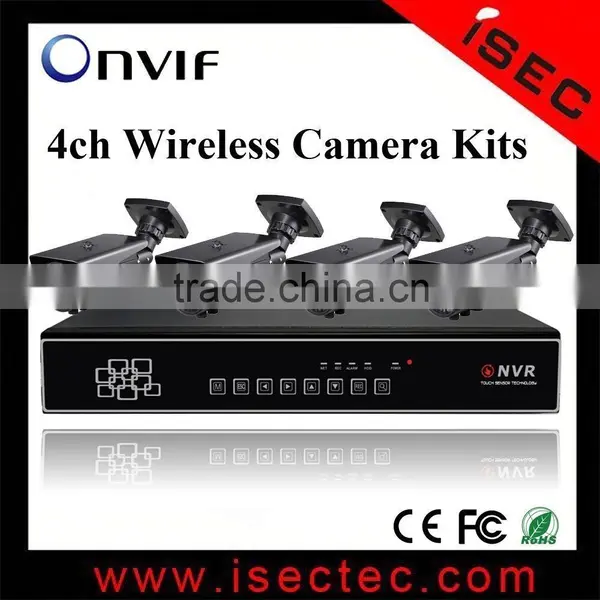

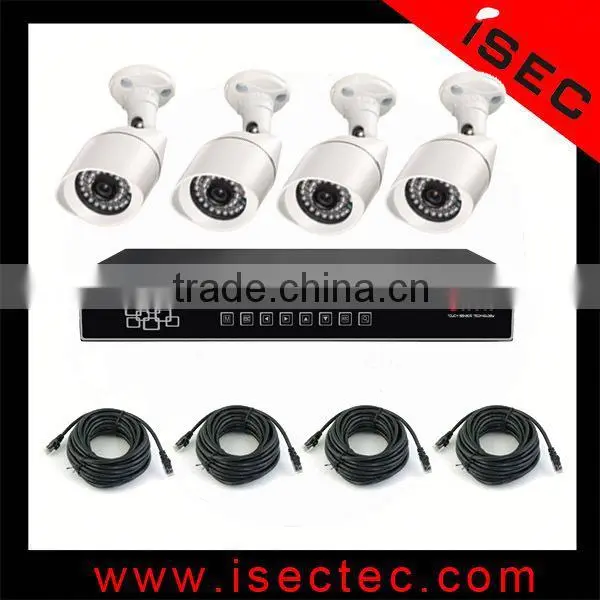

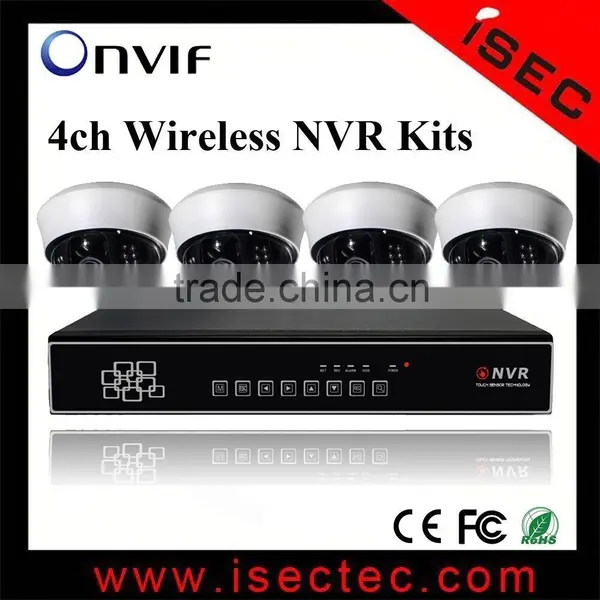

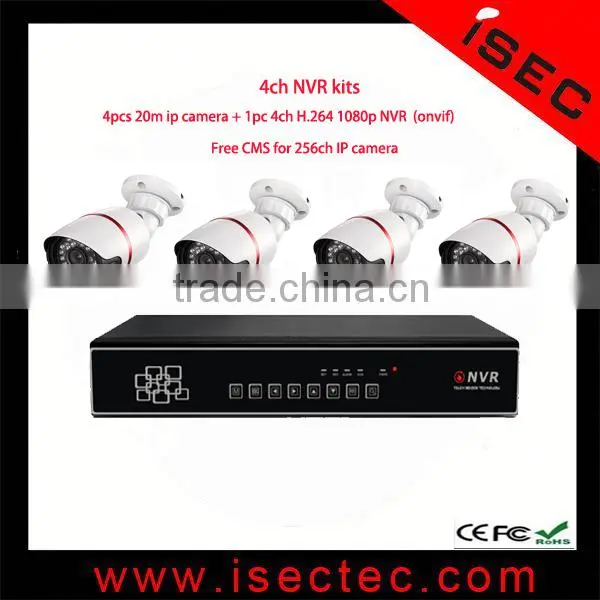

4ch NVR kits

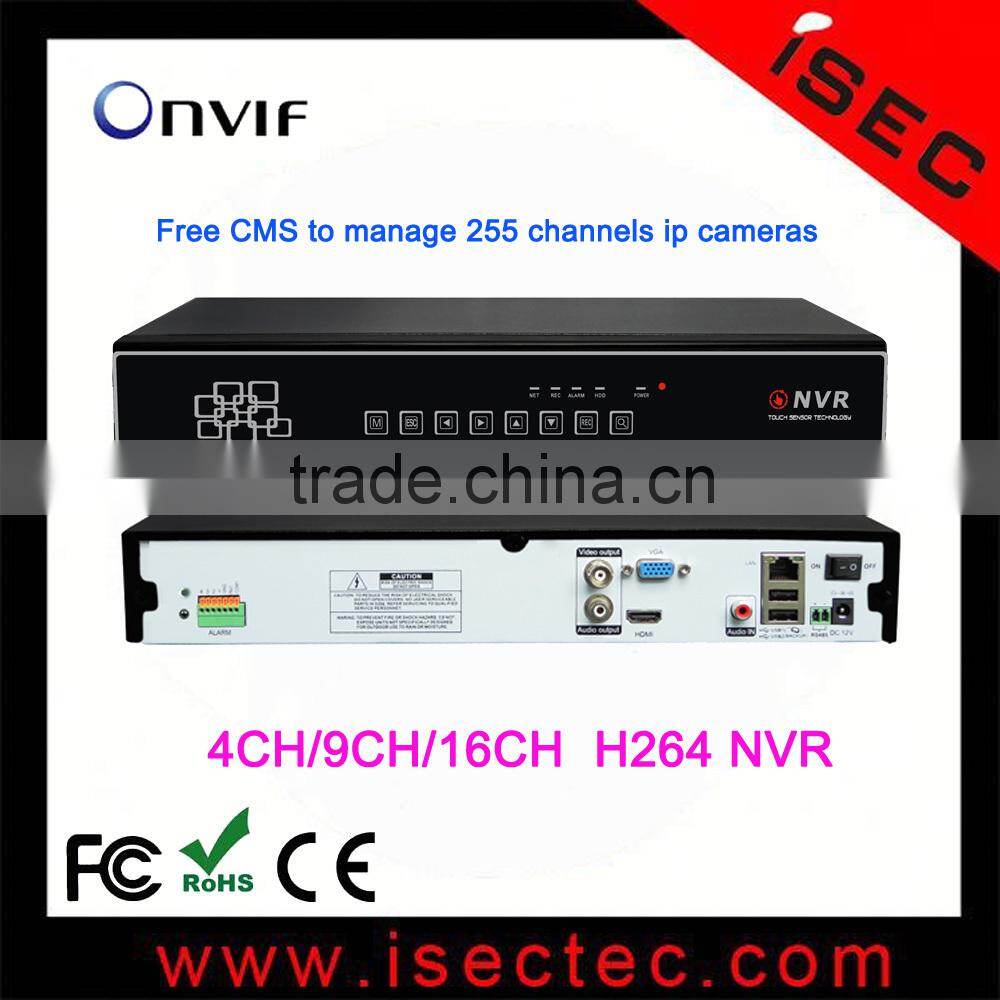

| Model | IC-NVR1004 | |
| System | Main Processor | High performance embedded microprocessor |
| Operating system | Embedded LINUX OS | |
| Video spec. | Video compression format | H.264 |
| Display Image Resolution | 720P@30fps;960P@30fps;1080P@30fps | |
| Playback Image Resolution | 720P@30fps;960P@30fps;1080P@30fps | |
| Motion Detection | can setup 192(16×12)pcs motion detection area each channeland multi-level sensitivity(1-6 levels adjustable) |
|
| Privacy Masking | depends on ipc | |
| Audio spec. | Audio compression format | adpcm |
| two-way audio | 1ch | |
| Recording | Recording Mode | Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording, |
| Recording storage | HDD,Network | |
| Frame rate | 30 fps NTSC;25fps PAL | |
| Recording Playback | Playback:4ch@960P or 2ch@1080P Simultaneously | |
| Backup Mode | Support HDD,USB Flash Disk store & backup | |
| Video | Network Video Input | 4ch |
| Video output | 1ch VGA and 1ch HDMI | |
| Audio | Audio Input | 4ch IPC Composite Audio |
| Audio Output | 1ch (audio intercom) | |
| Alarm | Alarm Input | 4ch Alarm Input(optional) |
| Alarm Output | 1ch Alarm Output(optional) | |
| Other | Network | 1x10/100Mbps,RJ45 port |
| RS485 | Standard 485 port,support half-duplex, green terminal port | |
| USB | 2 USB 2.0 ports | |
| HDD | support 1pcs 2TB SATA HDD inside | |
| Power | DC +12V /3A | |
| power consumption | 16W-18W(not include HDD and PoE) | |
| Operation temperature | 0℃-+55℃ | |
| Operation humidity | 10%-90% | |
| Demension | 252*213*42mm(0.8u height) | |
| Weight | 1.5--1.8KG(not include HDD) | |

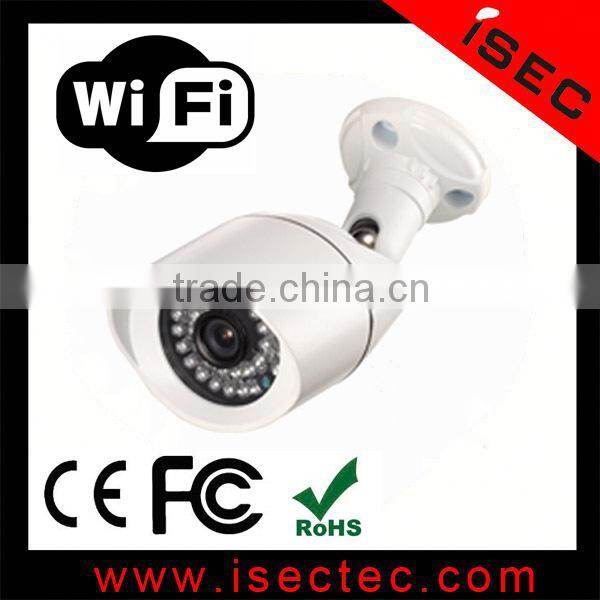

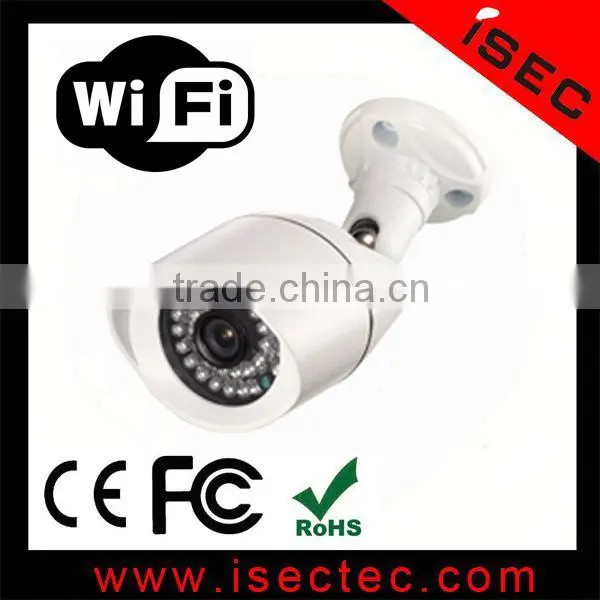

IP camera features:
| Model | IC-ILBW30-AH7 | IC-ILBW30-AH9 | IC-ILBW30-AT2 | IC-ILBW30-AT3 | IC-ILBW30-AT5 |
| Type | Lite version | Low Lux | Lite version | D-WDR 120db | Low Lux |
| Max. Pixels | 1 Megapixel | 1.3 Megapixel | 2 Megapixel | 3 Megapixel | 5 Megapixel |
| Imaging sensor | 1/4″ CMOS | 1/3″ CMOS | 1/3″ CMOS | 1/3″ CMOS | 1/2.5″ CMOS |
| Processor | HISILICON | HISILISION/TI | TI | TI | TI |
| Video coding rate (Adjustable) | 1MP@ 20fps/25fps | 1.3MP@25fps/30fps | 1MP@ 25fps/30fps | 1MP@ 25fps/30fps | 1MP@ 25fps/30fps |
| / | / | 2MP@ 25fps/30fps | 2MP@ 25fps/30fps | 2MP@ 25fps/30fps | |
| / | / | / | 3MP@ 18fps/25fps | 3MP@ 17fps/20fps | |
| / | / | / | / | 5MP@ 10fps | |
| BNC Analog Output | Without | ||||
| Audio I/O | Without | Without | Without | Without | Without |
| Audio Function | Without | ||||
| Without | |||||
| Optional Functions (require extra charges) | POE | POE | POE | POE | POE |
| / | SD Card Slot | / | |||
| / | WiFi | WiFi | WiFi | WiFi | |
| Min. Illumination | Color: 0.4Lux | Color: 0.1Lux | Color: 0.4Lux | Color: 0.6Lux | |
| Black & White: 0Lux | |||||
| S/N Ratio | ≥ 50dB | ||||
| Infrared LED | 36 IR LEDs, IR range 30M | ||||
| Lens | Default lens: 6 mm varifocal 2MP lens, Optional: | ||||
| Shutter Speed | 1/5-1/15,000 /S | ||||
| Noise redection | without | ||||
| AGC&WB&Exposure | Auto Gain Control, Auto White Balance, Auto Exposure | ||||
| Interface standard | Onvif V2.1 | ||||
| Network Protocol | PPPOE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP, RTSP,UPNP,SMTP,FTP,NTP,DDNS,DNS | ||||
| Stream type | Video Stream or Video&Audio Stream (settable) | ||||
| H.264 Compression format, CBR / VBR | |||||
| Dual Strem: Main Stream 1~8Mbps , Sub Stream 0.5~2Mbps (adjustable) | |||||
| System Maintenance | Upgrade via Network, Power Timer, Manually restore to default | ||||
| System Management | Password Protection | ||||
| System authority | Permission level: Administrator / Common User | ||||
| E-Zoom | Picture can be zoomed by mouse | ||||
| Alarm Event | Motion Detect, Video Tampering, Network Abnormal | ||||
| Alarm Responses | Snapshot, Email Alert, Start to Record , FTP Upload | ||||
| Recording modes | Manual, Schedule, Motion Detect, Network Abnormal | ||||
| Image Capture | JPEG format (picture definition is same with video) | ||||
| Network | 10M/100M RJ45 self-adaptive | ||||
| Storage methods | Upload to FTP Server, Built-in Micro SD Card, NVR, NAS, PC Hard disk | ||||
| Installation type | Ceiling mount / Wall mount | ||||
| Access methods | PC Software, IE Browser, Mobile Phone APP (IOS, Android) | ||||
| Bracket | rotatable bracket, cable is hidden | ||||
| Waterproof rate | IP66 | ||||
| Working temperature | -20℃-60℃ | ||||
| Camera temperature | 25°C~35°C | ||||
| Working Humidity | < 90% | ||||
| Power Supply | DC Female Interface, DC12V±5% | ||||
| Power Consumption | IR LEDS ON: 8W | ||||
